air-ride PRO kit VIP 4-way - Audi A3 8L Quattro + S3

Air-ride PRO VIP - 4-way kit

Dedicated to:
Audi A3 8L Quattro + S3
Audi TT mk1 8N Quattro
VW Golf 4 4-motion - 4WD
Skoda Octavia 1 - 4WD
Seat Leon 1M  - 4WD

just for 4wd versions

Dedicated for Customer coilover suspension!
Measurements needed: http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg

Info:
The PRO VIP allows you to control each bag separately. The speed is much faster than in BASIC kit. Each airspring has own valve - there is no any flow of air between the bags! The kit is based on a very good quality parts.
Infinitely adjustable - you can set the car on different levels. Dedicated for Customer coilover suspension!

!!! Rear mounting brackets made that car could go down as low as possible:
bottom - flat with a threaded hole for M10 bolt from the bottom
top - with a hole depth of 20mm - You need to shorten spring holders to 20mm!

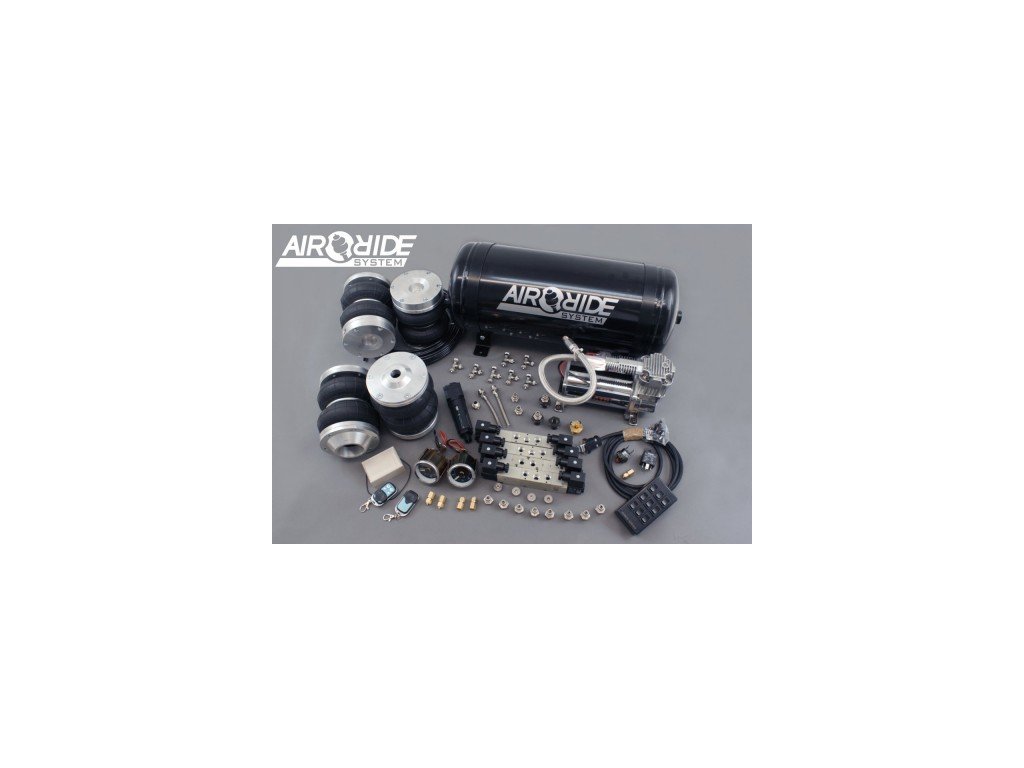

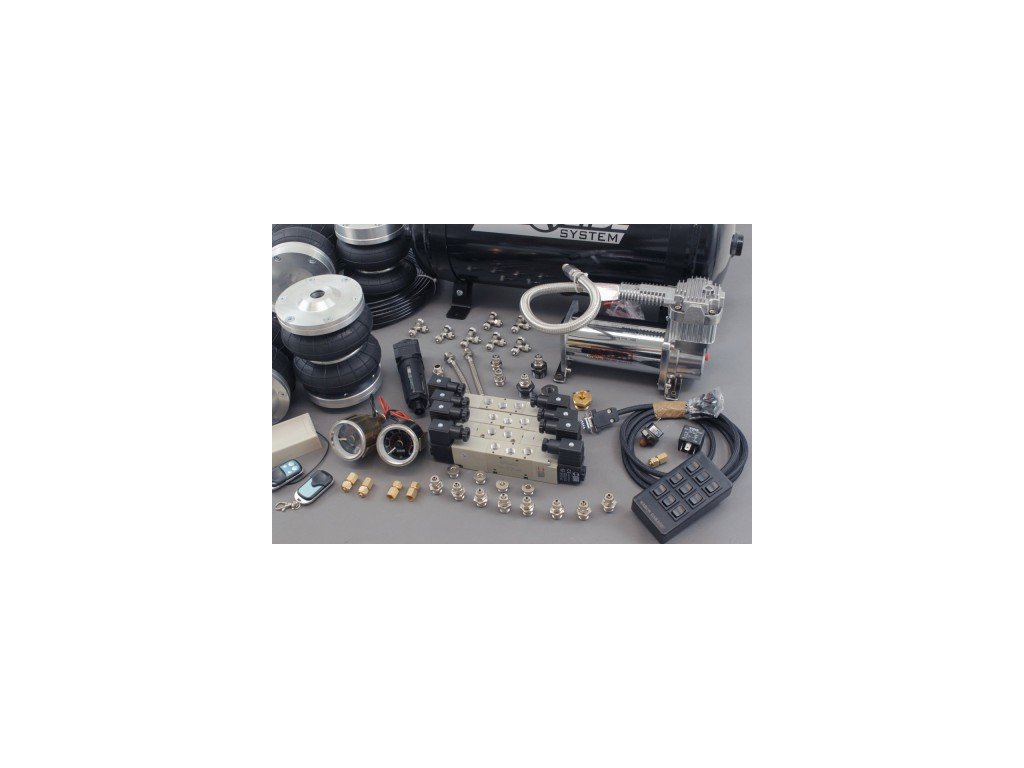

Included:
- Valves: HAFNER / METALWORK - type 5/3 - 1/4" - 4pcs
- Tank: 15l + tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: Remote control with 9 buttons
- Remote Wireless Control with 4 buttons
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags

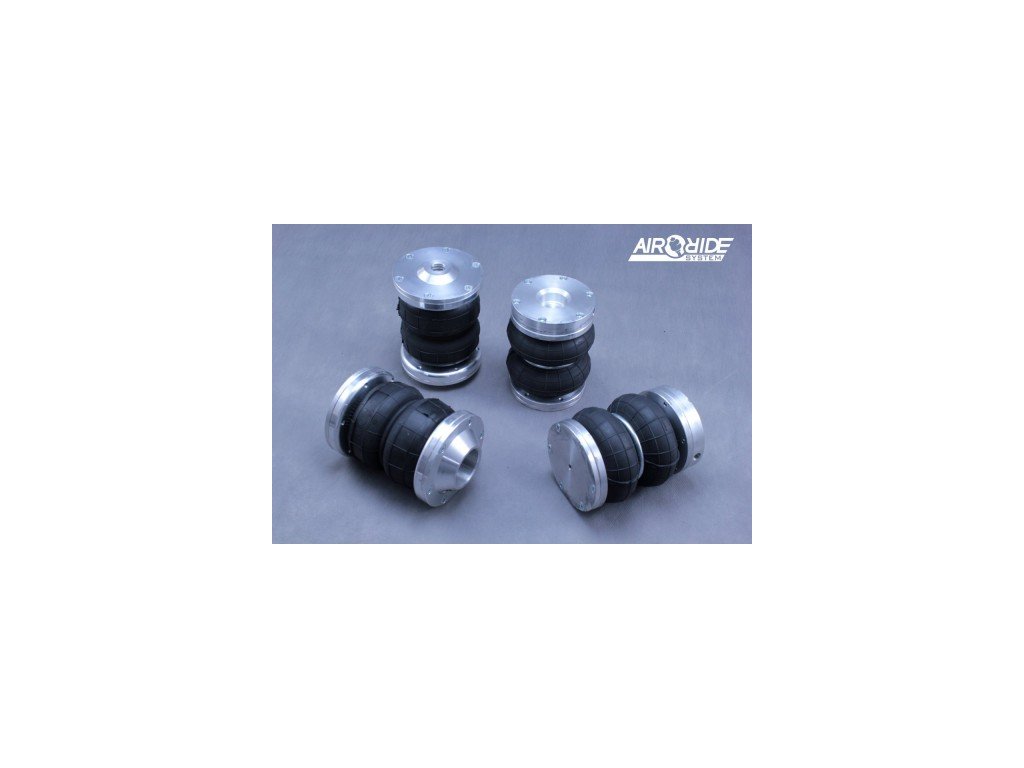

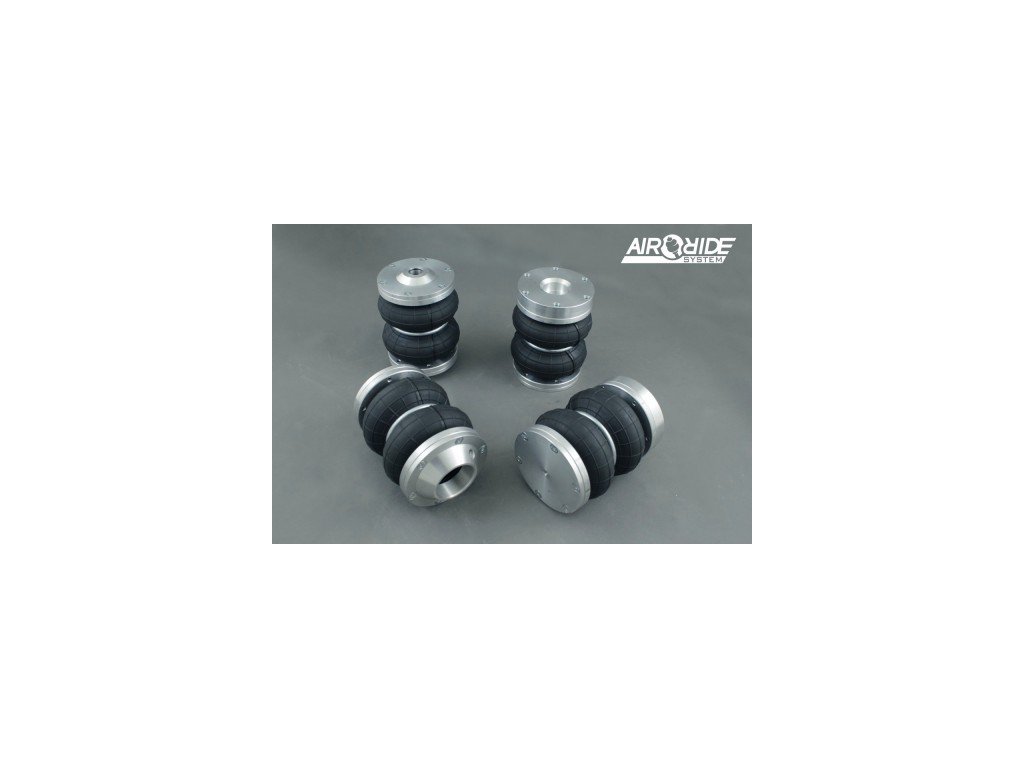

- Dedicated bags
- 6mm air hose: 25m
- Metal fittings
- Water trap
- Other metal fittings for tank and bags

Other optional features:
- Camber Plates Front (gives the possibility of adjusting the angle and car can go a little lower)
- Shortening the front shock absorbers + 120Euro
- Coilover shock absorbers - the price depends on the brand

illustrative photo!

Schematic example:

Importer / Producer: BEST LEVEL Katarzyna Janecka

User manuals: https://www.mapet-tuning.com/xxx/MANUALS/

Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
