air-ride PREMIUM kit 4-way - BMW F30 F31 F32 F36

Air-ride DIGITAL PREMIUM VIP - 4-way kit

Dedicated to:
BMW F30 F31 F32 F36

for rwd

Dedicated for Customer coilover suspension!
Measurements needed: http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg


Info:
The PREMIUM VIP set is a digital control system based on a valve manifold and a remote control with a display. It allows you to control each bag separately - no air flows between the cushions! Smooth height adjustment and presets.  An interesting aspect is the aesthetic cover masking all connections and easy to modify.

Infinitely adjustable - you can set the car on different levels.

Dedicated for Customer coilover suspension!

To fit front bags You need to have Coilover with camber plates or order bags with camber plates.

System functions:
- Display of pressures in bags and tank
- Possibility to set 5 heights (by pressure)
- Automatic lifting function after ignition
- Automatic lowering function when ignition off
- Illuminated Keypad

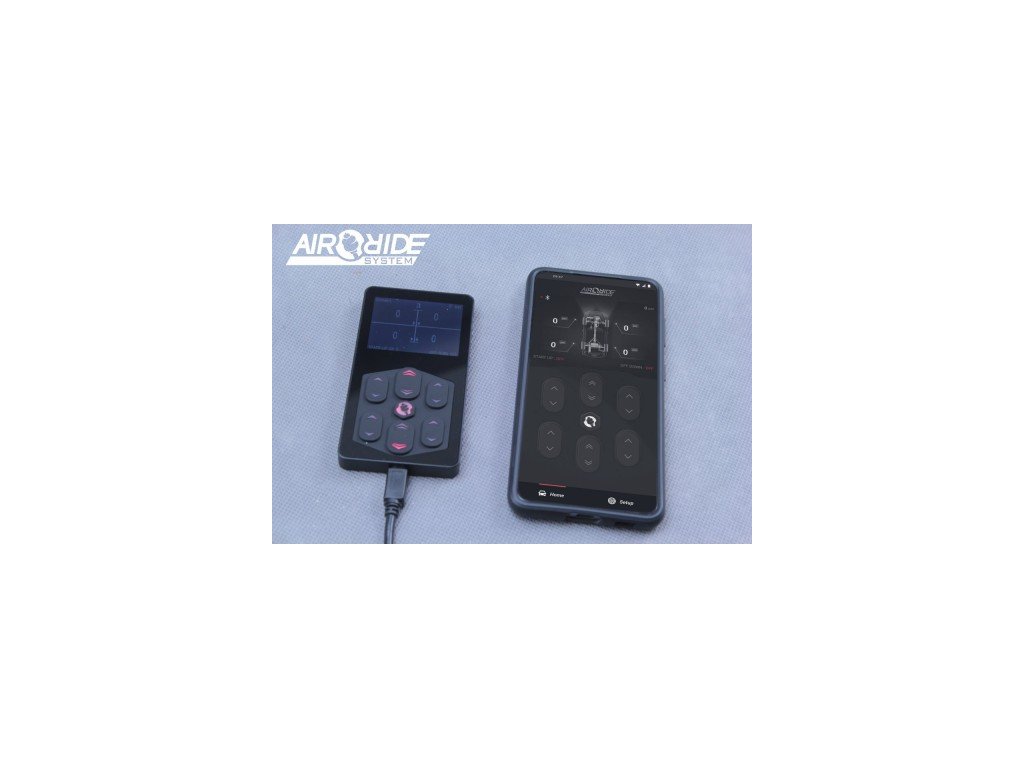

- Android APP
- English language

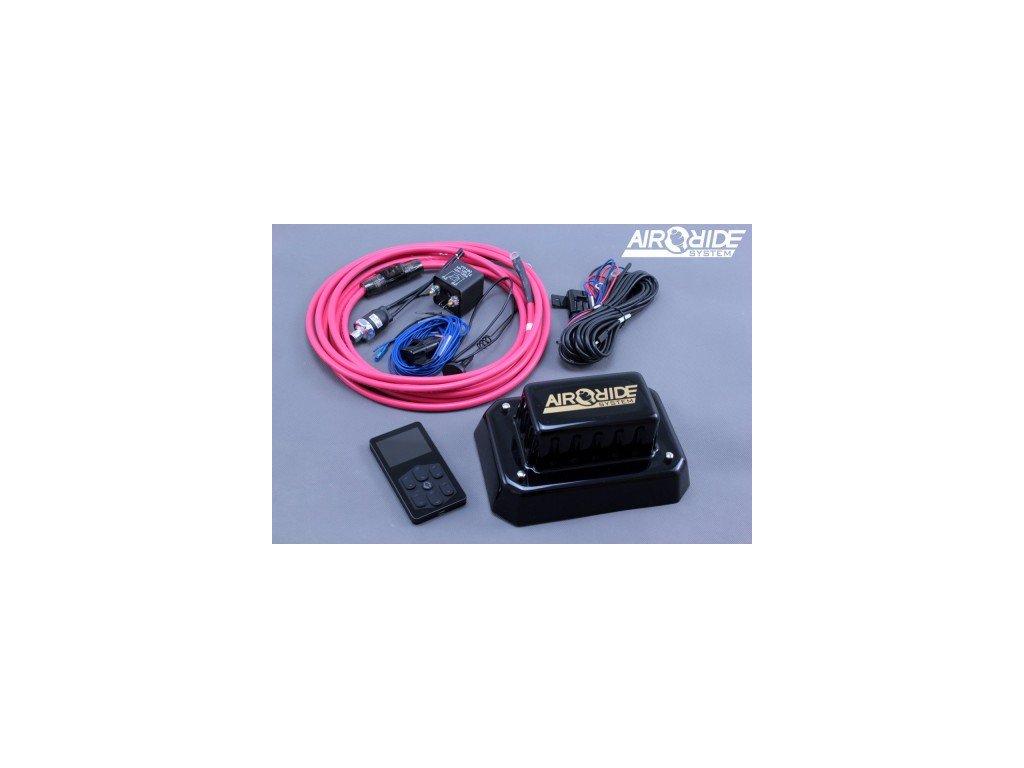

Included:

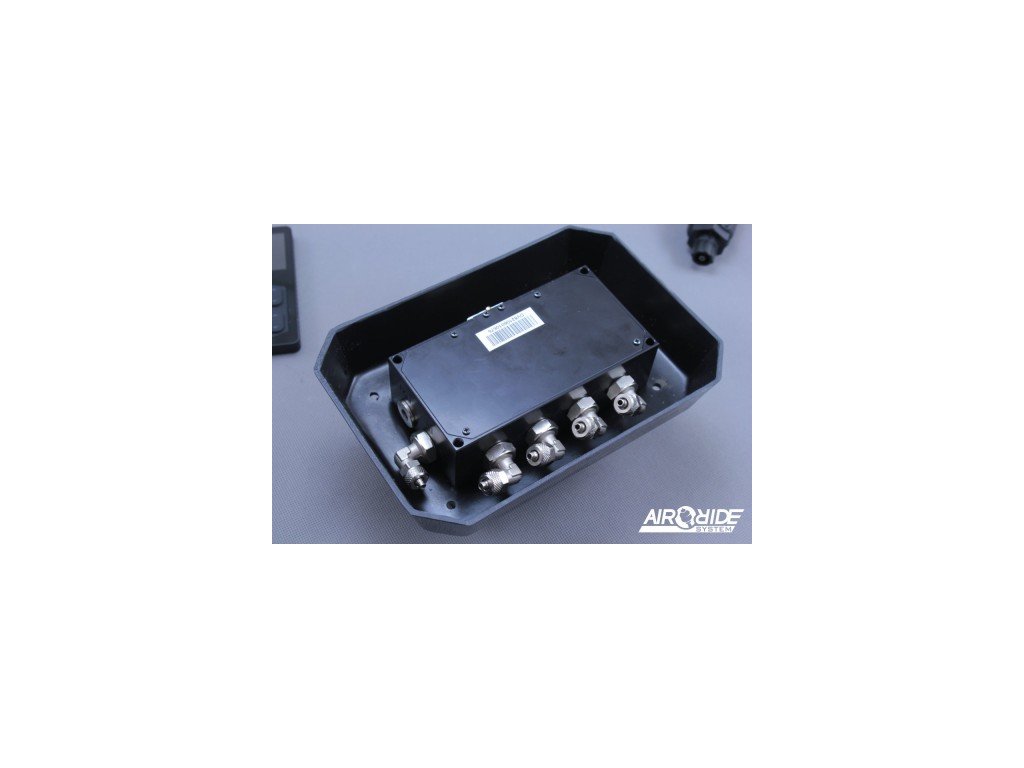

- Valve terminal with control unit
- Digital remote control displaying pressures and functions
- Black Piano cover masking the connections
- Tank: 15l  (optional other tank)
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay

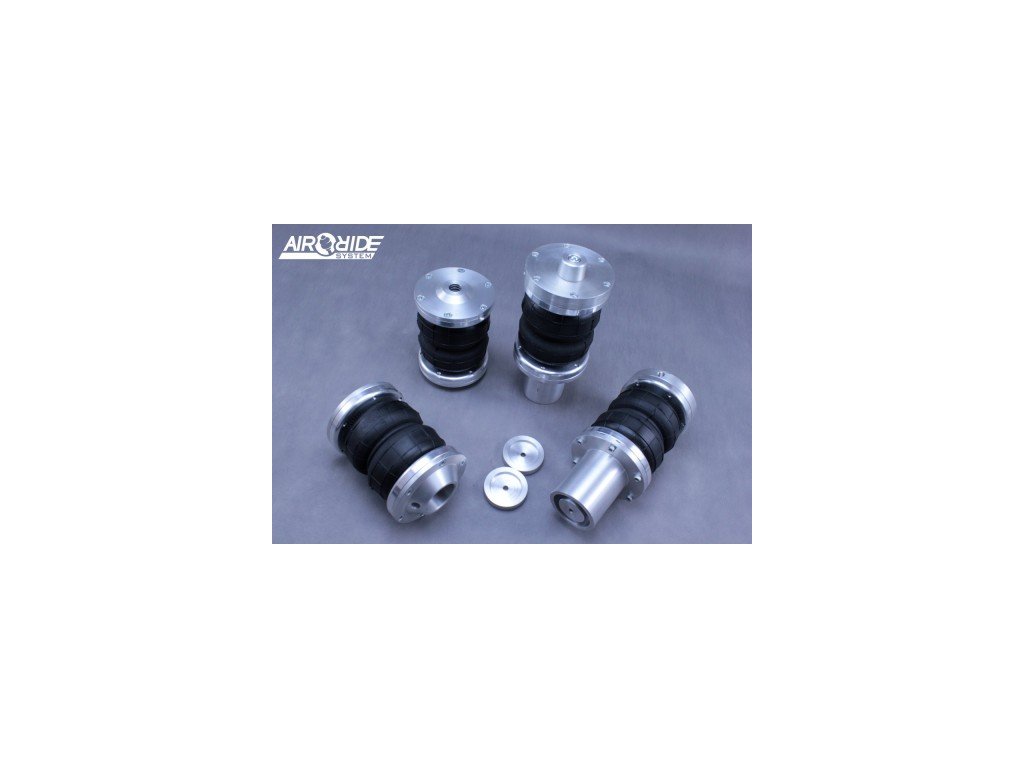

- Aluminum Brackets for Bags
- Dedicated bags
- 6mm air hose: 25m
- metal fittings
- Water trap
- Other metal fittings for tank and bags

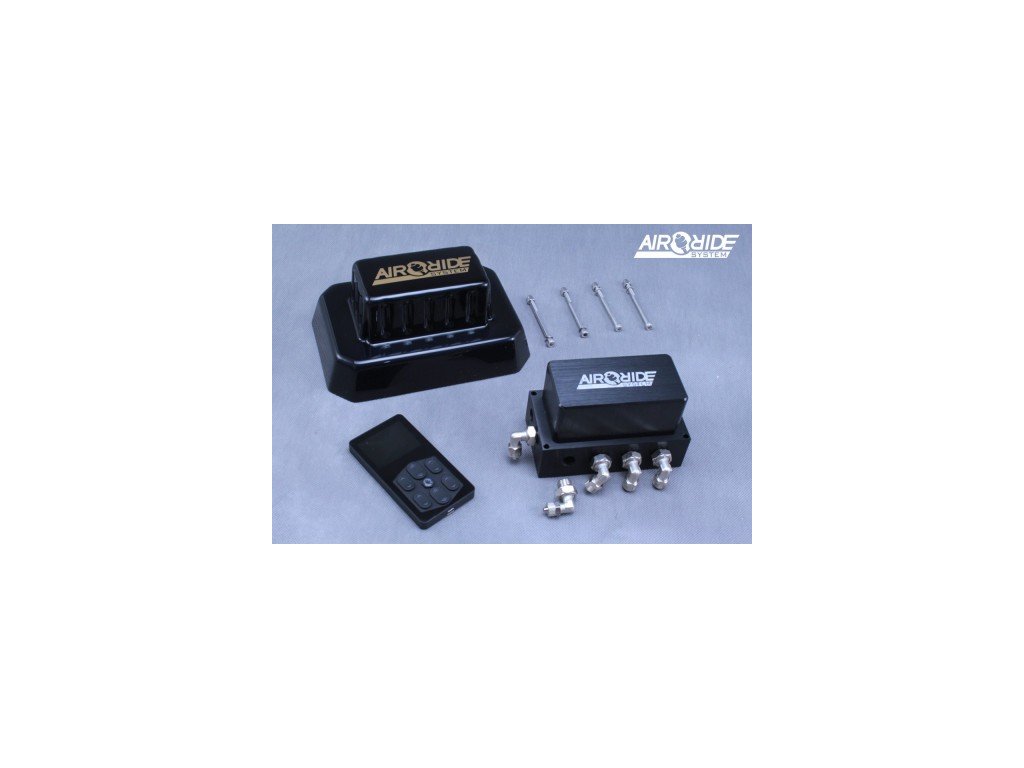

The Black Gloss Cover made of ABS offers several options:
- Possibility to rotate the manifold in any direction and the logo will always be in the right direction
- Masks all the connections - electrical and the fittings for airhoses
- Easy possibility of processing plastic - gives an additional option of fitting
- As the cover does not reach the ground, has a minimum clearance - you can use it for an interesting underglow

Your car in the APP: https://airride-system.pl/en/accessories/2388-your-car-in-our-app-for-android.html



WARRANTY 24 months!

illustrative photo!

Importer / Producer: BEST LEVEL Katarzyna Janecka

User manuals: https://www.mapet-tuning.com/xxx/MANUALS/

Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
