air-ride Digital SMART kit F/R - Honda Civic / CRX 92-00
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride PRO kit - front/rear
Dedicated to:
Honda Civic
Honda CRX
EG2, EG3, EG4, EG5, EG6, EG8, EG9, EH6, EH9, EJ1, EJ2, EK1, EK3, EK4, EJ6, EJ8, EJ9
1992-2000
Dedicated for Customer coilover suspension!
Measurements needed: http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg
Info:
The SMART set is a digital control system based on a valve manifold and a remote control with a display. It allows you to control each axle separately. Smooth height adjustment and 3 presets. Integrated pressure sensor for tank and extra small wireless controller.
Infinitely adjustable - you can set the car on different levels. Dedicated for Customer coilover suspension!
Control system description:
- Display of pressures in each axle and tank
- Possibility to set 3 heights (by pressure)
- Automatic lifting function after ignition
- Automatic lowering function when ignition off
- Pressure sensor for tank inside
- Illuminated Keypad
- Extra small remote wireless controller
- English language

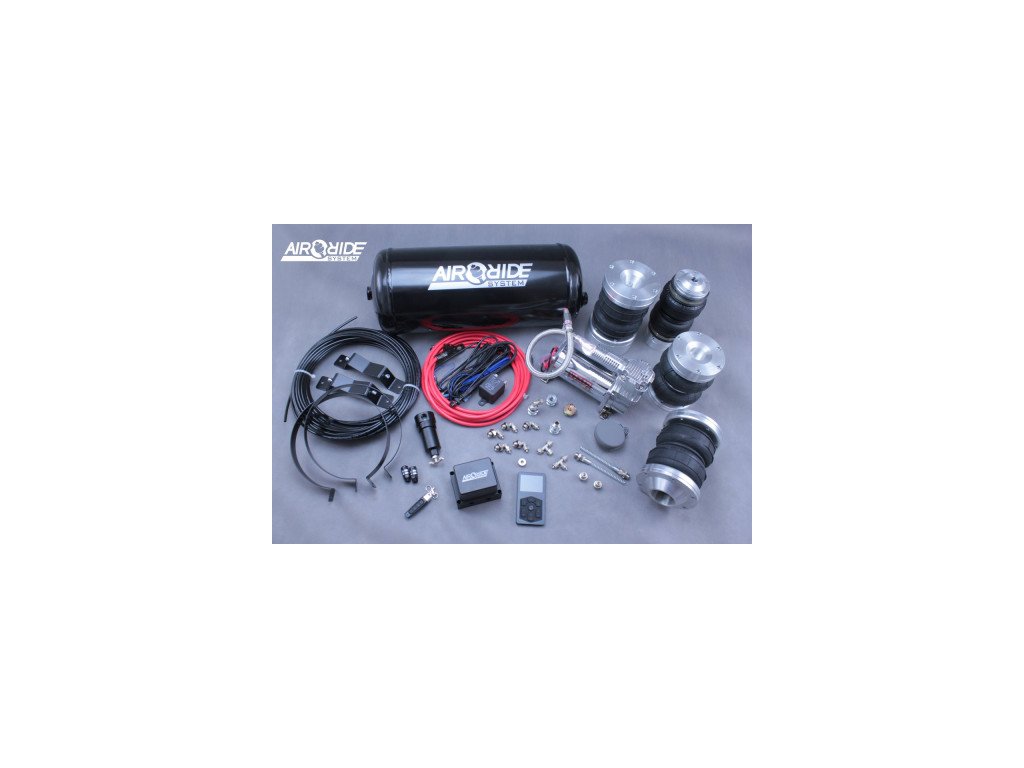

Included:

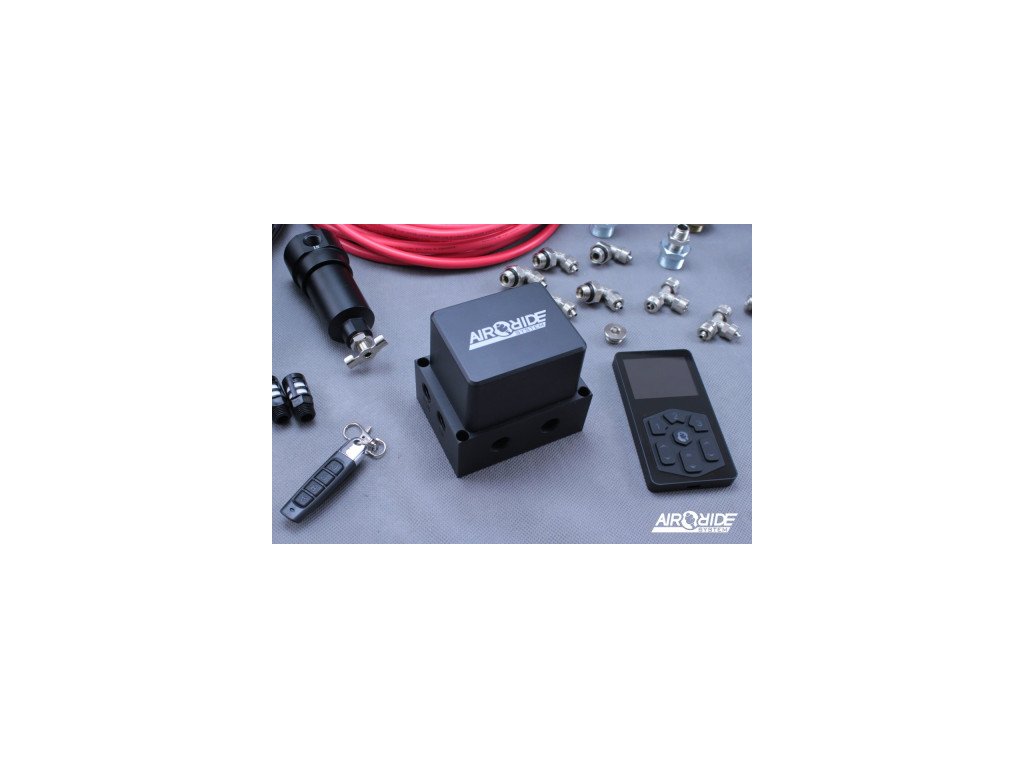

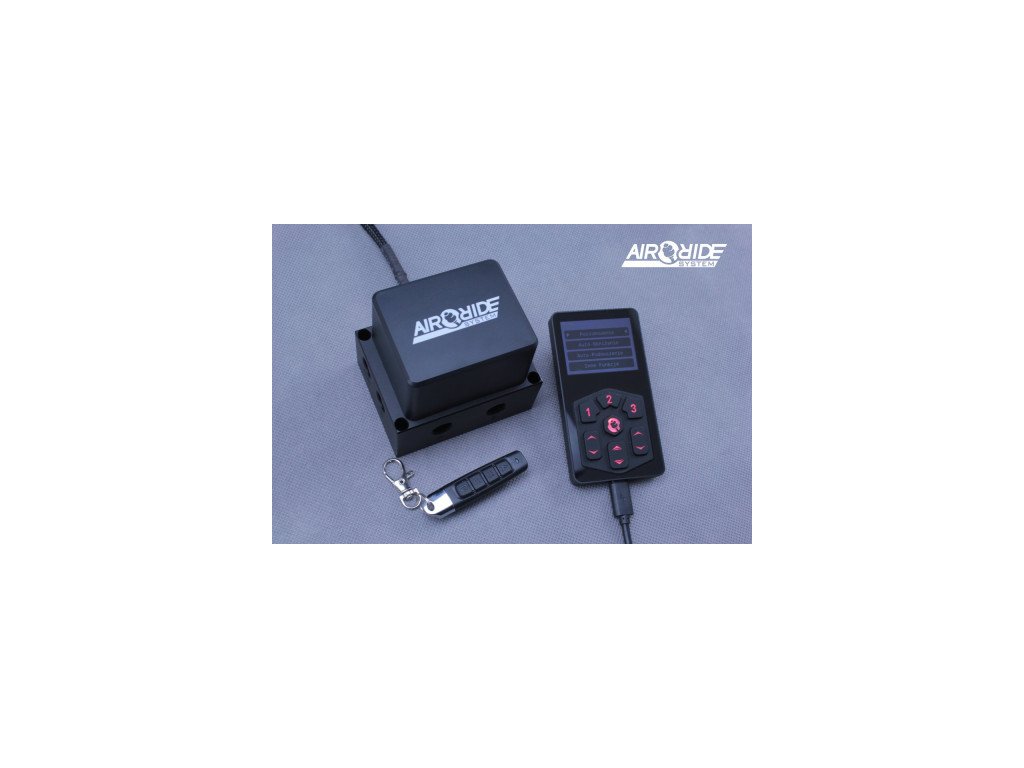

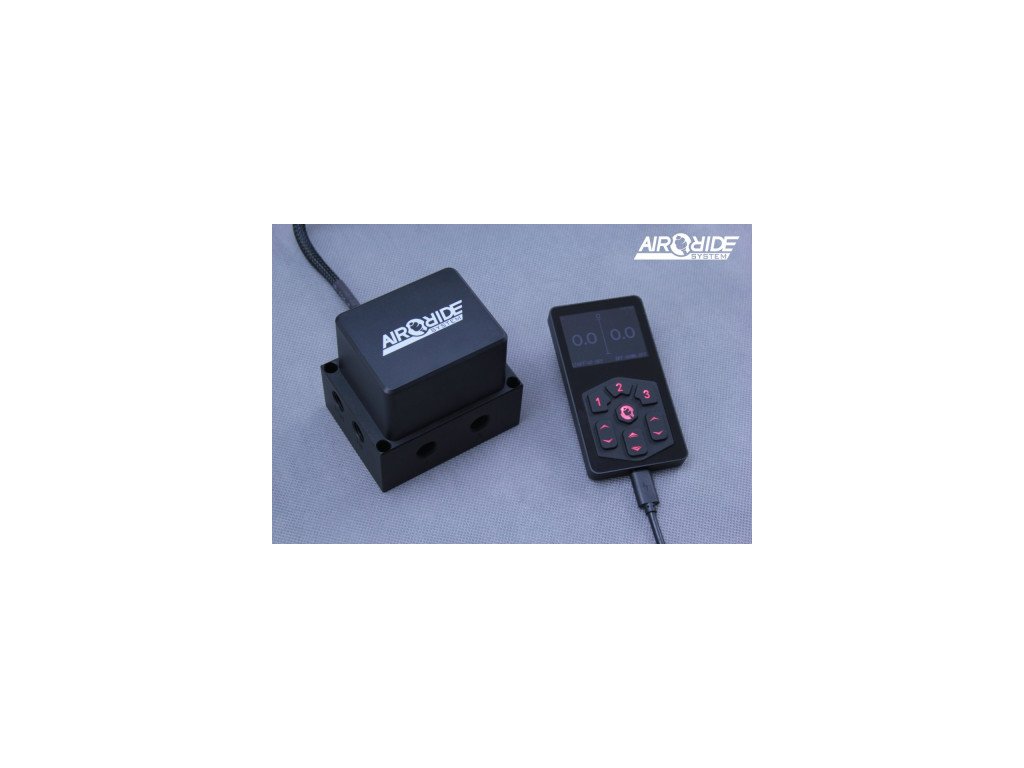

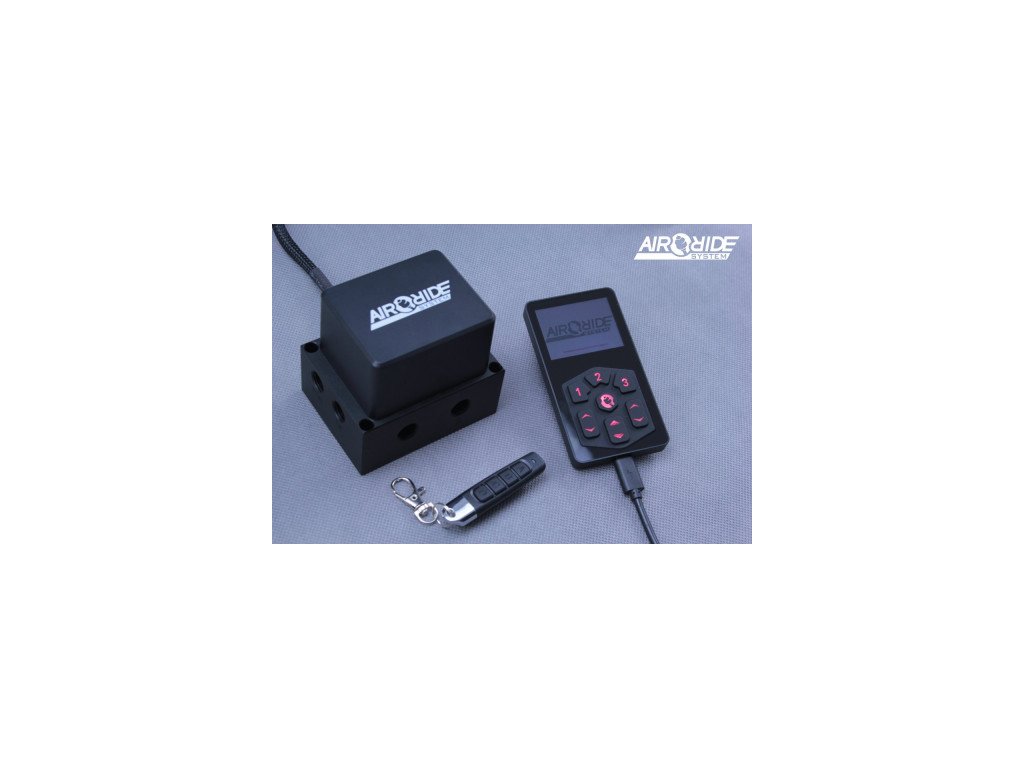

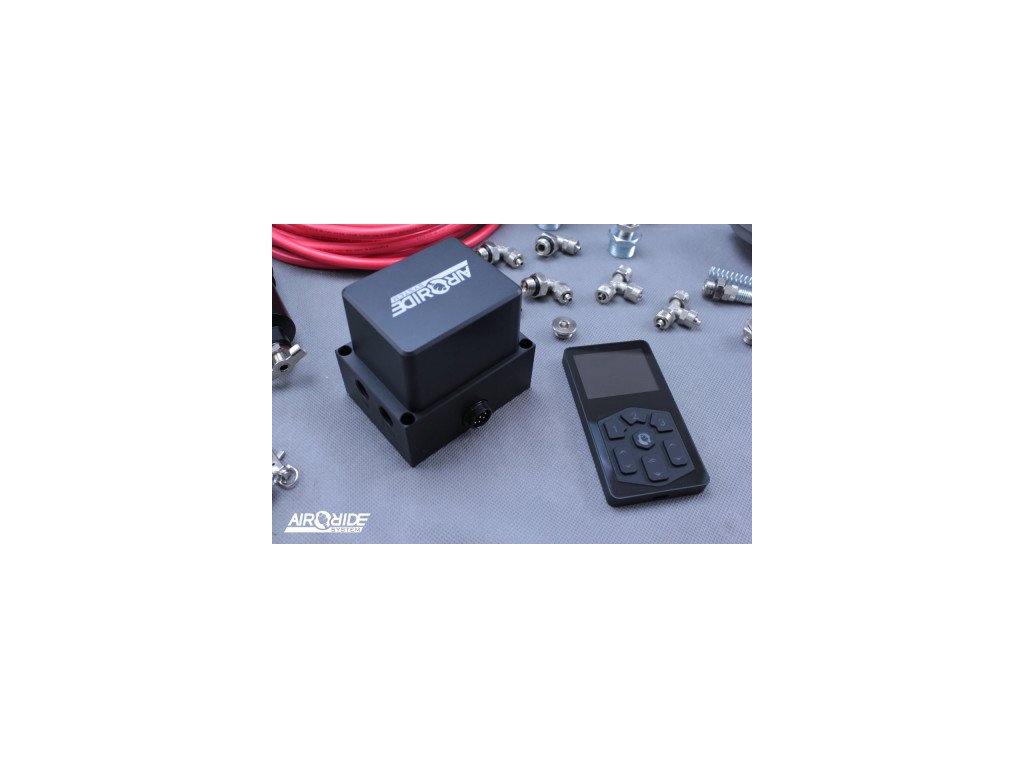

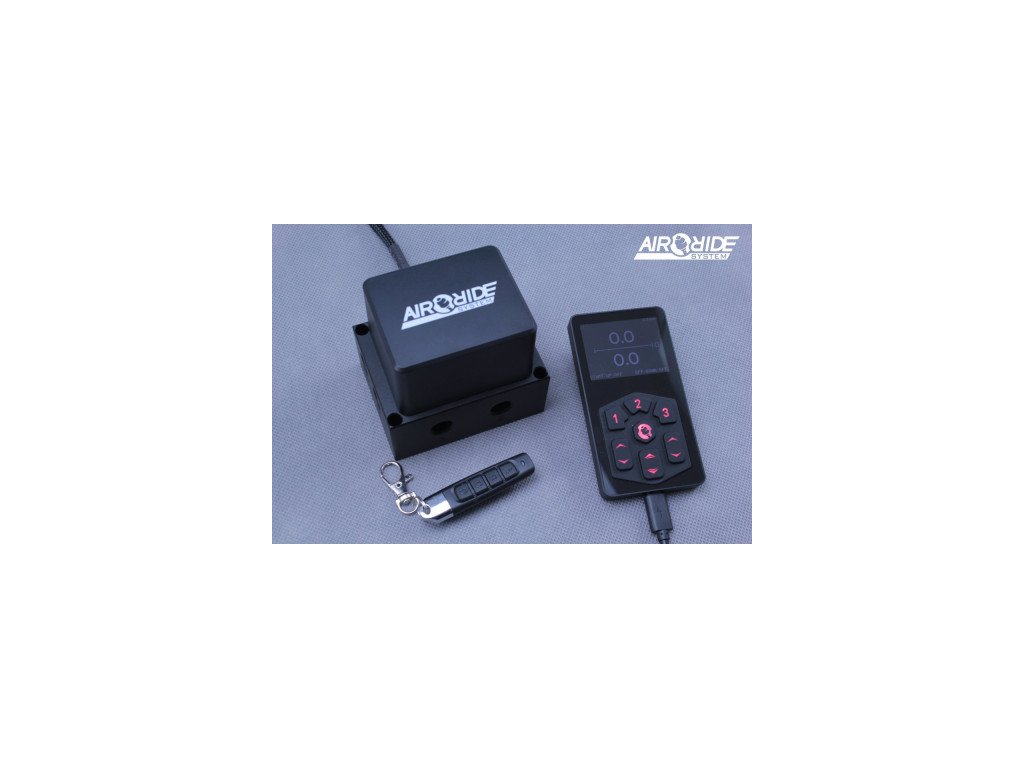

- Valve block with control unit

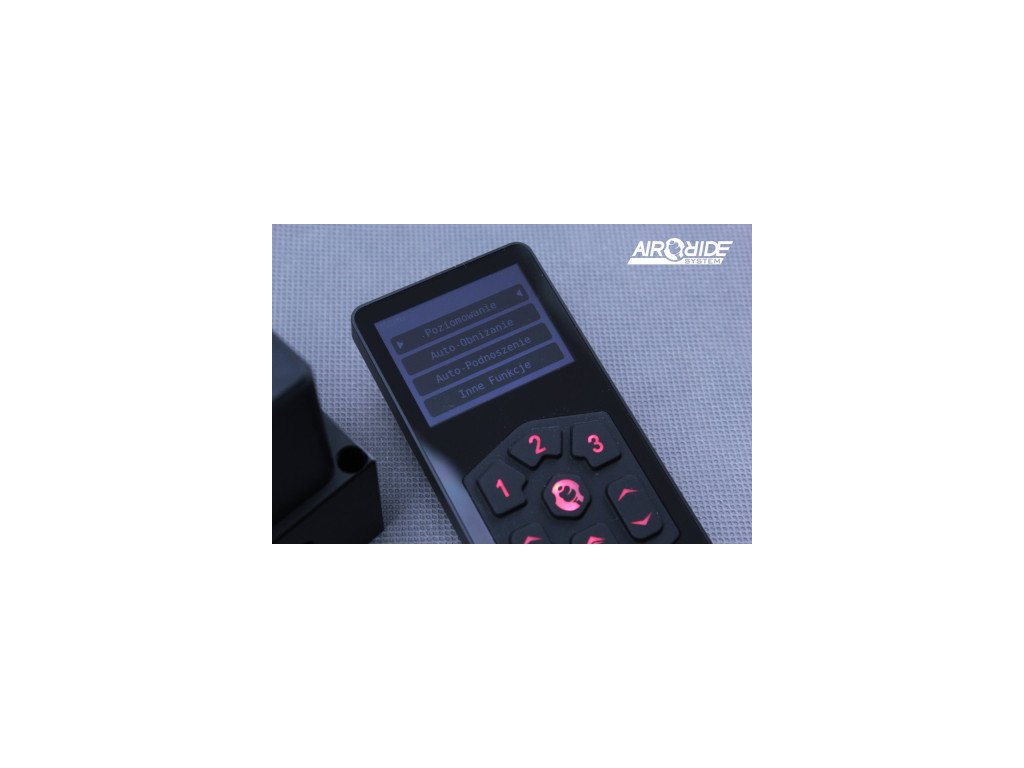

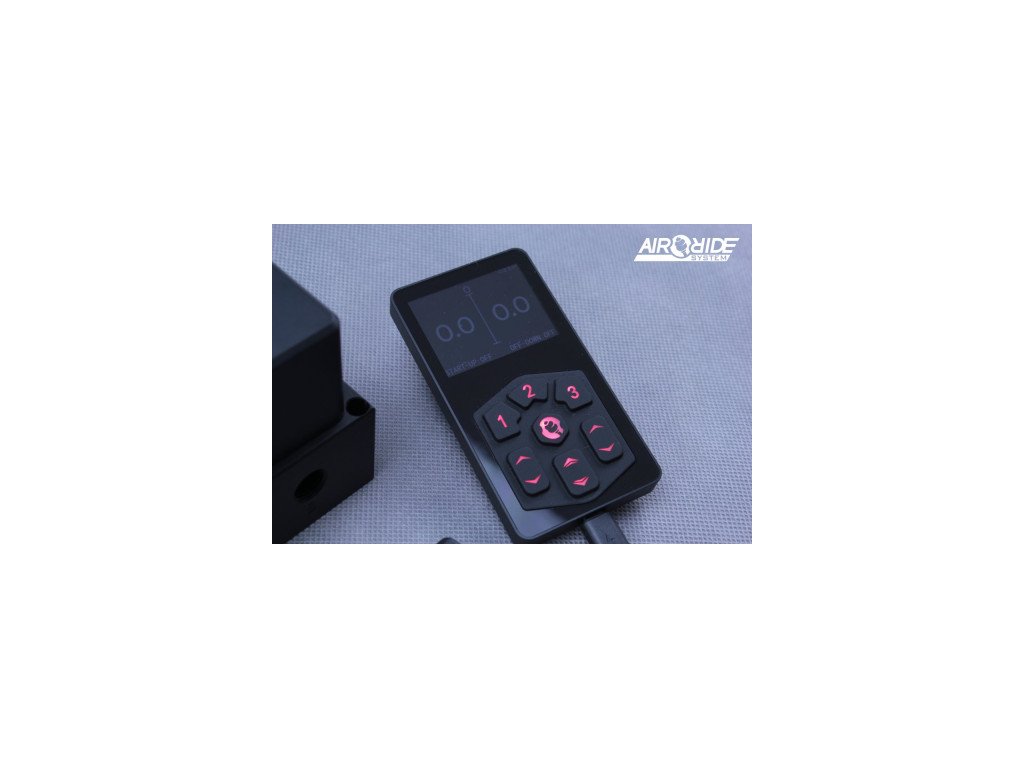

- Digital remote control displaying pressures and functions
- Additional wireless remote controller
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C
- Pressure switch inside manifold

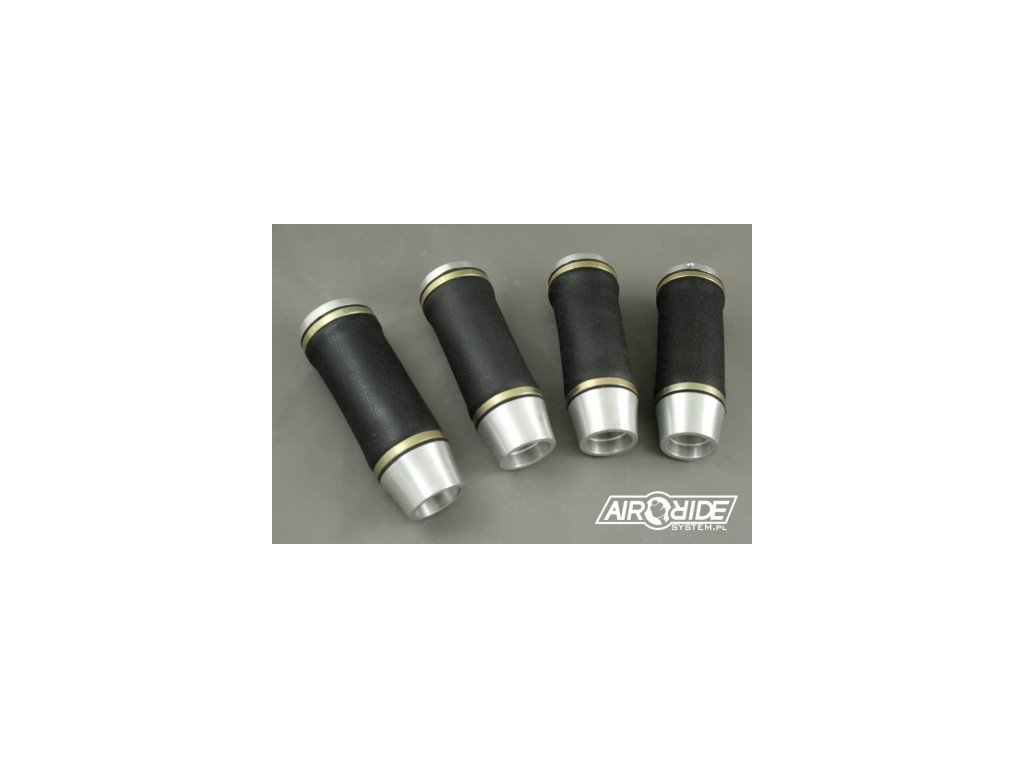

- Dedicated bags with brackets
- 6mm air hose: 25m
- Metal fittings
- Water trap
WARRANTY 24 months!
illustrative photo!
- Piston rod diameter (front): 11 mm; 12,45 mm; 15 mm; 16 mm; 18 mm; 20 mm; 22 mm; 25 mm; Other (add info in comments or product configuration)
- Coilover shock thread size (front): M50x1,5; M52x1,5; M52x2 metric; M52x2 trapezoidal; M52x3 trapezoidal; M53x2; M54x1,5; M55x2; Other (add info in comments or product configuration)
- Piston rod diameter (rear): 11 mm; 12,45 mm; 15 mm; 16 mm; 18 mm; 20 mm; 22 mm; 25 mm; Other (add info in comments or product configuration)
- Coilover shock thread size (rear): M50x1,5; M52x1,5; M52x2 metric; M52x2 trapezoidal; M52x3 trapezoidal; M53x2; M54x1,5; M55x2; Other (add info in comments or product configuration)
Watch the video:
Importer / Producer: BEST LEVEL Katarzyna Janecka
User manuals: https://www.mapet-tuning.com/xxx/MANUALS/
Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
