air-ride Digital SMART kit F/R - Audi A3 8L Quattro + S3

Air-ride DIGITAL SMART Front/Rear kit

Dedicated to:

just for awd / 4x4 versions

Dedicated for Customer coilover suspension!
Measurements needed: http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg


Info:
The SMART set is a digital control system based on a valve manifold and a remote control with a display. It allows you to control each axle separately. Smooth height adjustment and 3 presets. Integrated pressure sensor for tank and extra small wireless controller.

Infinitely adjustable - you can set the car on different levels. Dedicated for Customer coilover suspension!

!!! Rear mounting brackets made that car could go down as low as possible:
bottom - flat with a threaded hole for M10 bolt from the bottom
top - with a hole depth of 20mm - You need to shorten spring holders to 20mm!

Control system description:
- Display of pressures in each axle and tank
- Possibility to set 3 heights (by pressure)
- Automatic lifting function after ignition
- Automatic lowering function when ignition off
- Pressure sensor for tank inside
- Illuminated Keypad
- Extra small remote wireless controller
- English language

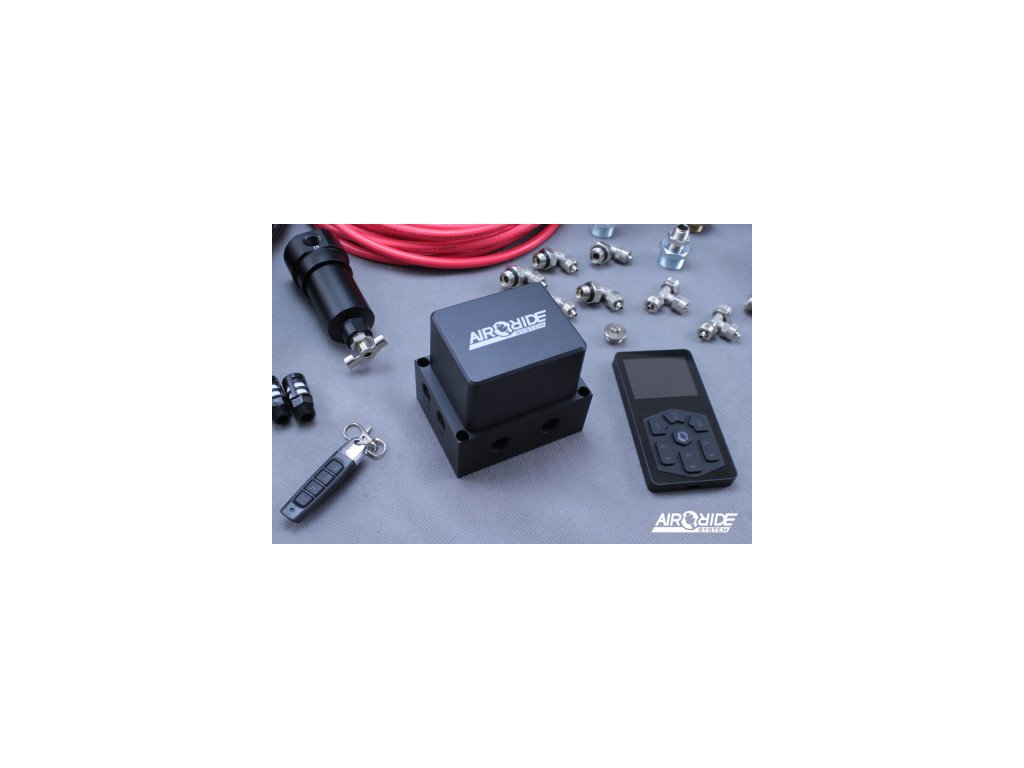

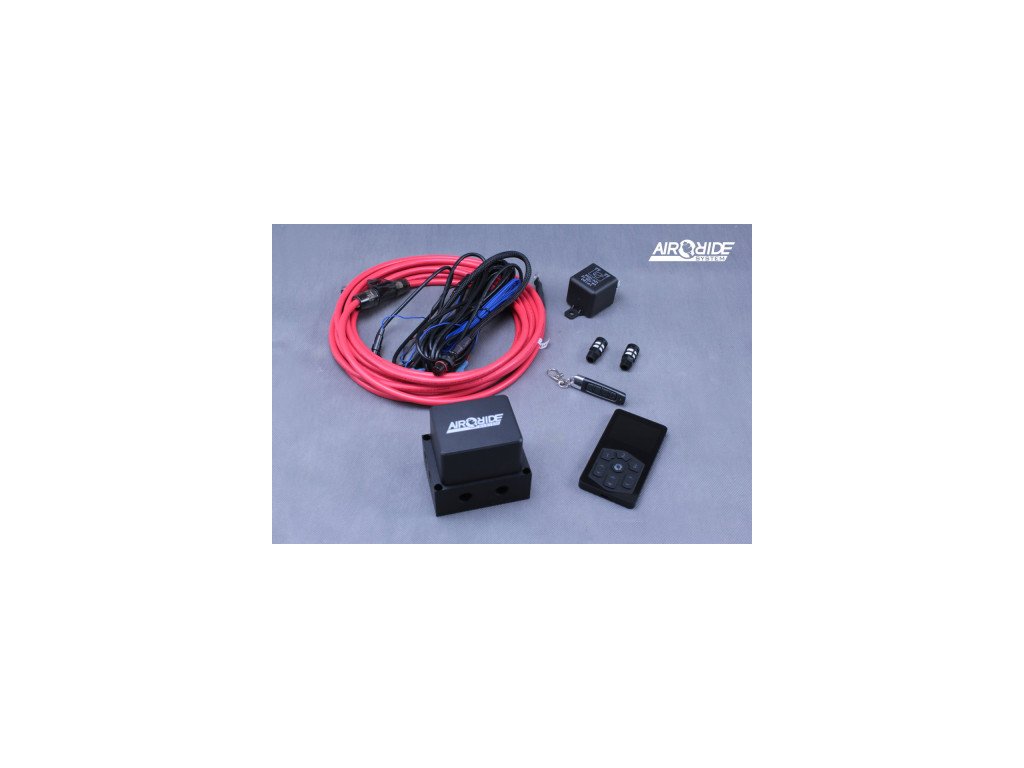

Included:

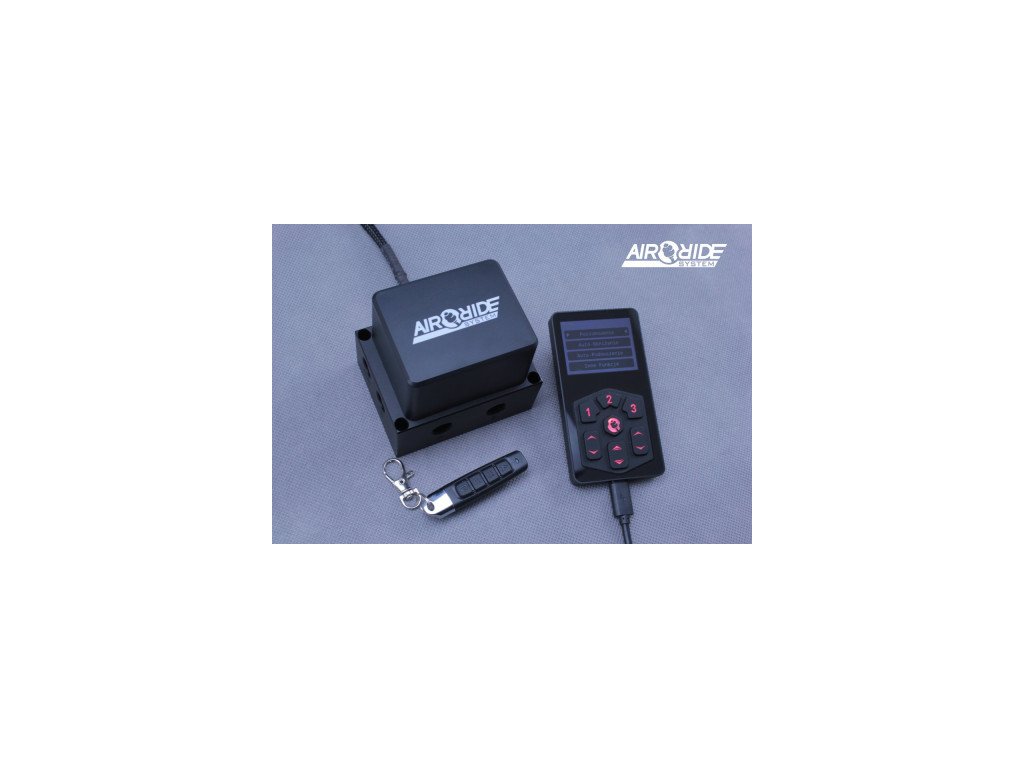

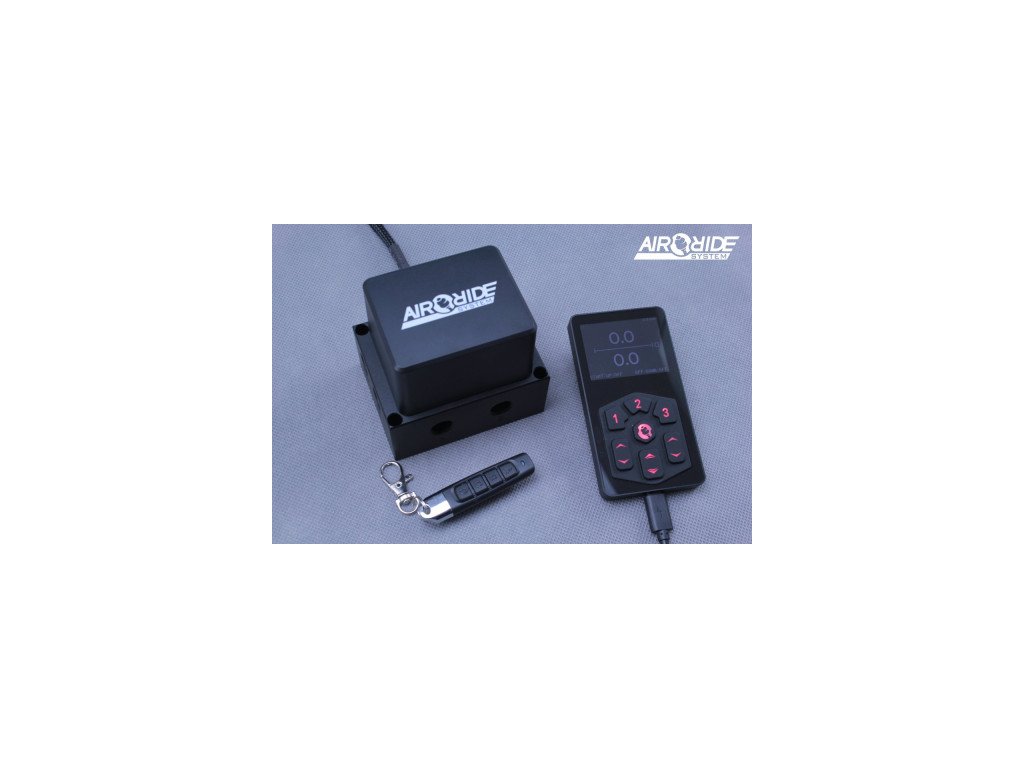

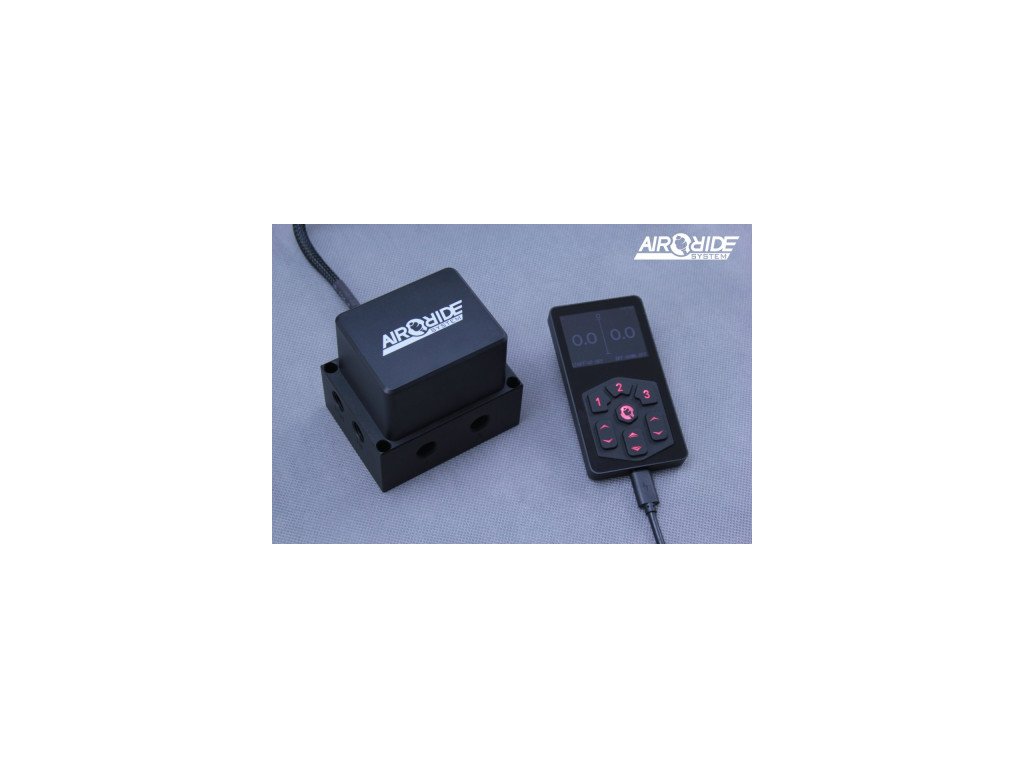

- Valve block with control unit

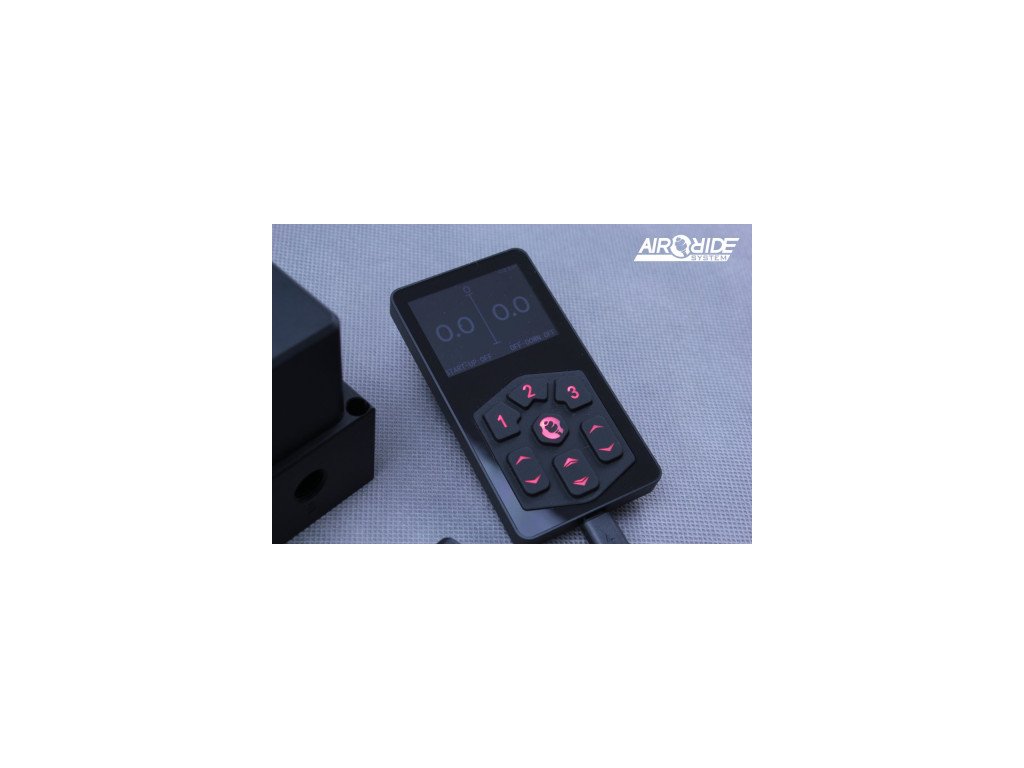

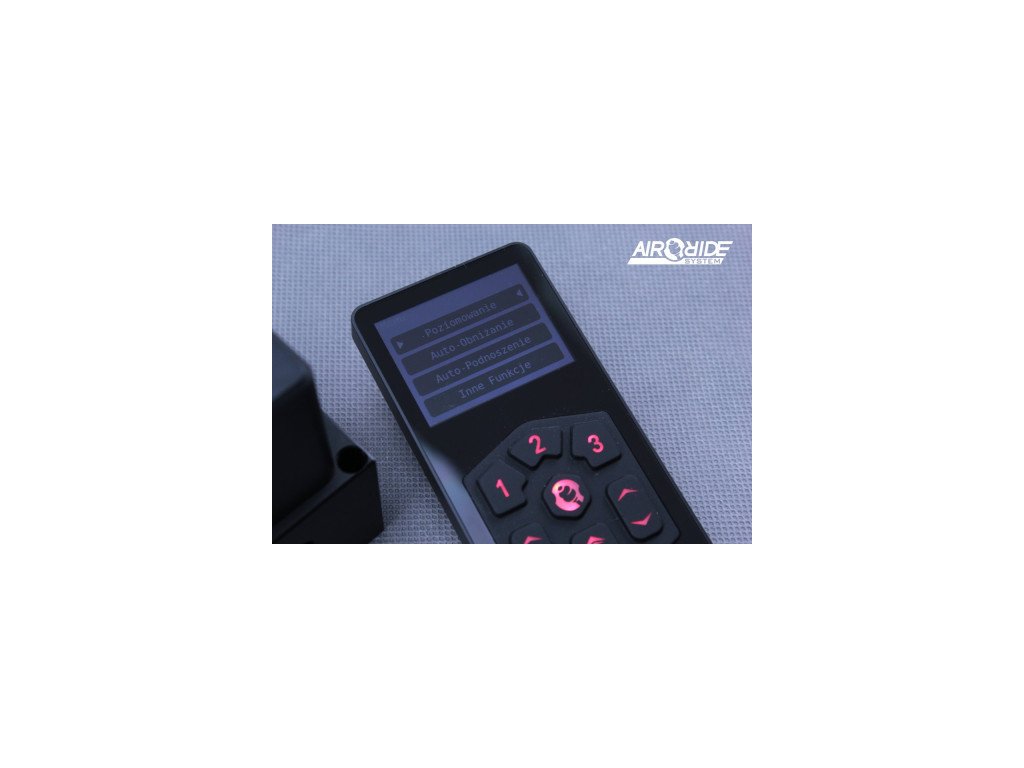

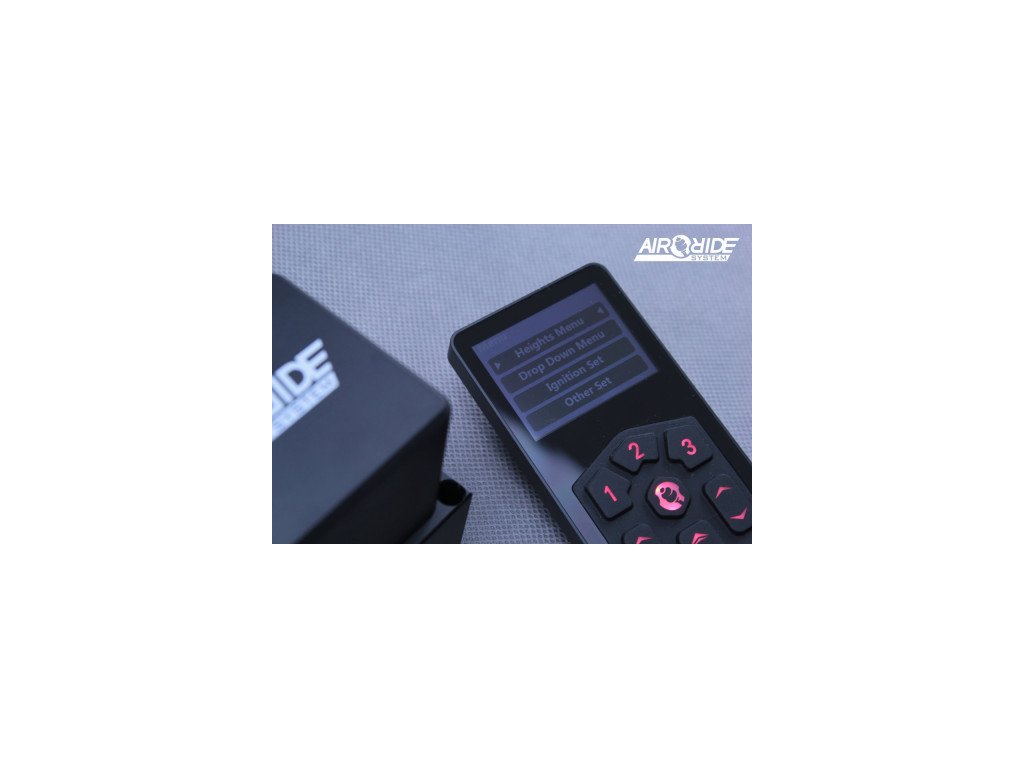

- Digital remote control displaying pressures and functions
- Additional wireless remote controller
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C
- Pressure switch inside manifold

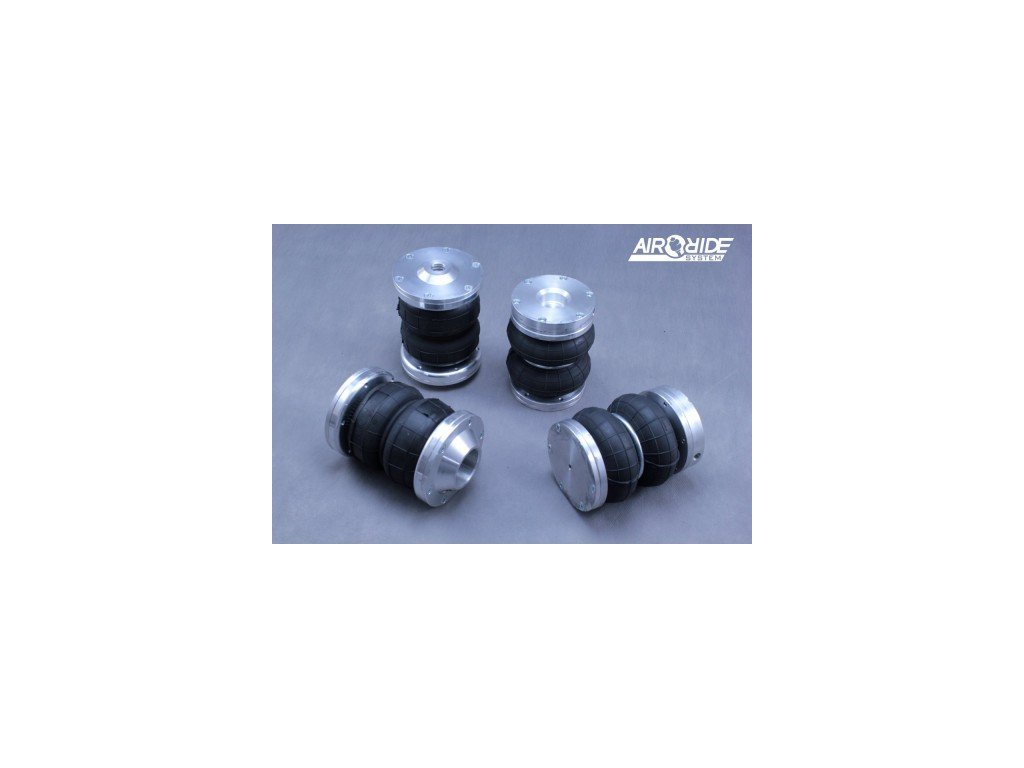

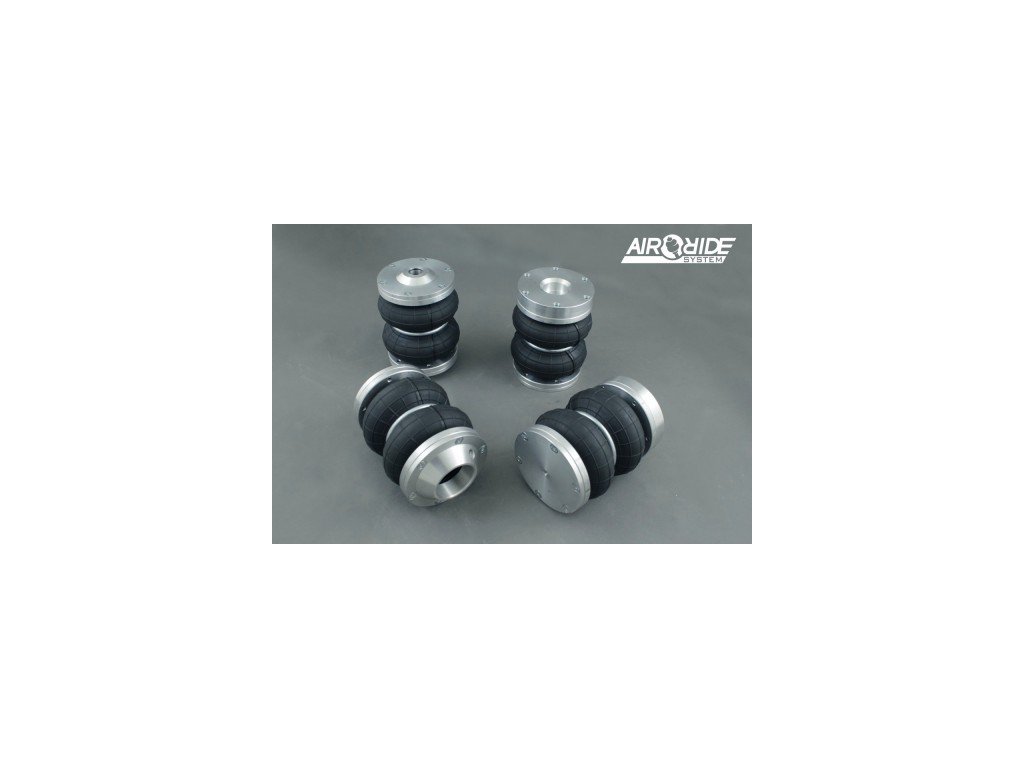

- Dedicated bags with brackets
- 6mm air hose: 25m
- metal fittings
- Water trap
- Other metal fittings for tank and bags

WARRANTY 24 months!

illustrative photo!

Watch the video:

Importer / Producer: BEST LEVEL Katarzyna Janecka

User manuals: https://www.mapet-tuning.com/xxx/MANUALS/

Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
