air-ride BEST PRICE kit VIP 4-way - Skoda Fabia 5J / 6Y with shocks
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride BEST PRICE VIP 4-way kit with shock abosrbers
Dedicated to:
- Audi A1
- Audi A2 (2005-2010)
- Seat Ibiza / Cordoba 6L / 6J
- Skoda Fabia 5J / 6Y
- VW Polo 9N / 9N3
- VW Polo 6R
just for fwd versions
Info:
The BEST PRICE VIP kit allows you to control each bag separately. The speed is much faster than in BASIC kit. Each airspring has own valve - there is no any flow of air between the bags! Infinitely adjustable - you can set the car on different levels.

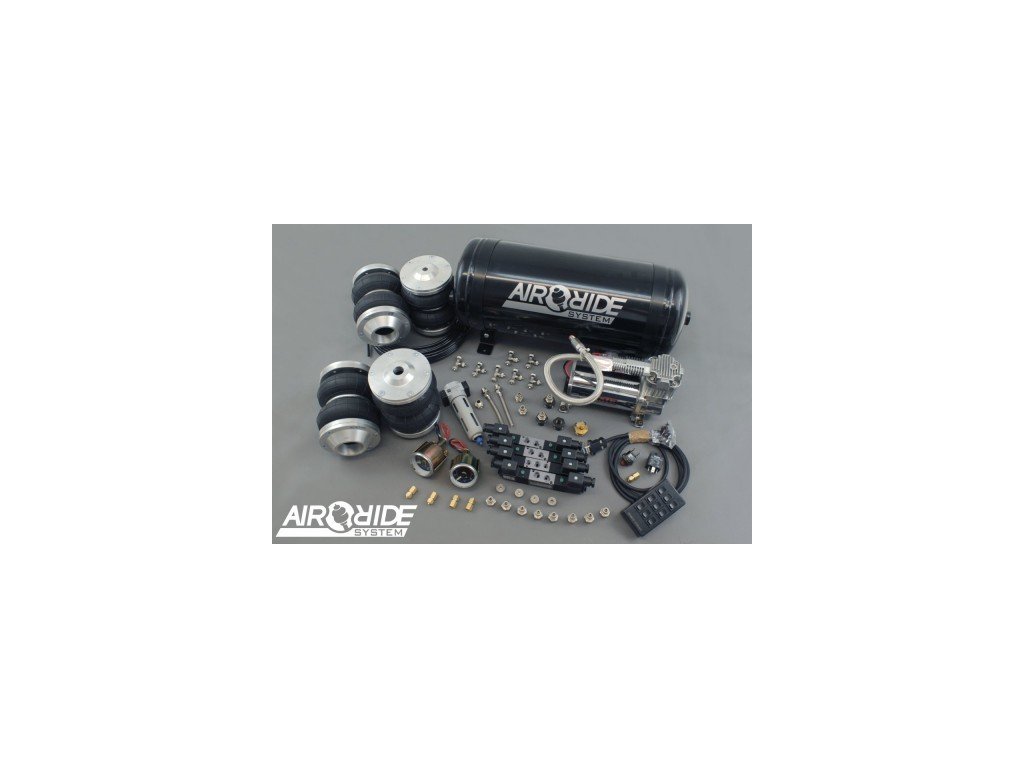

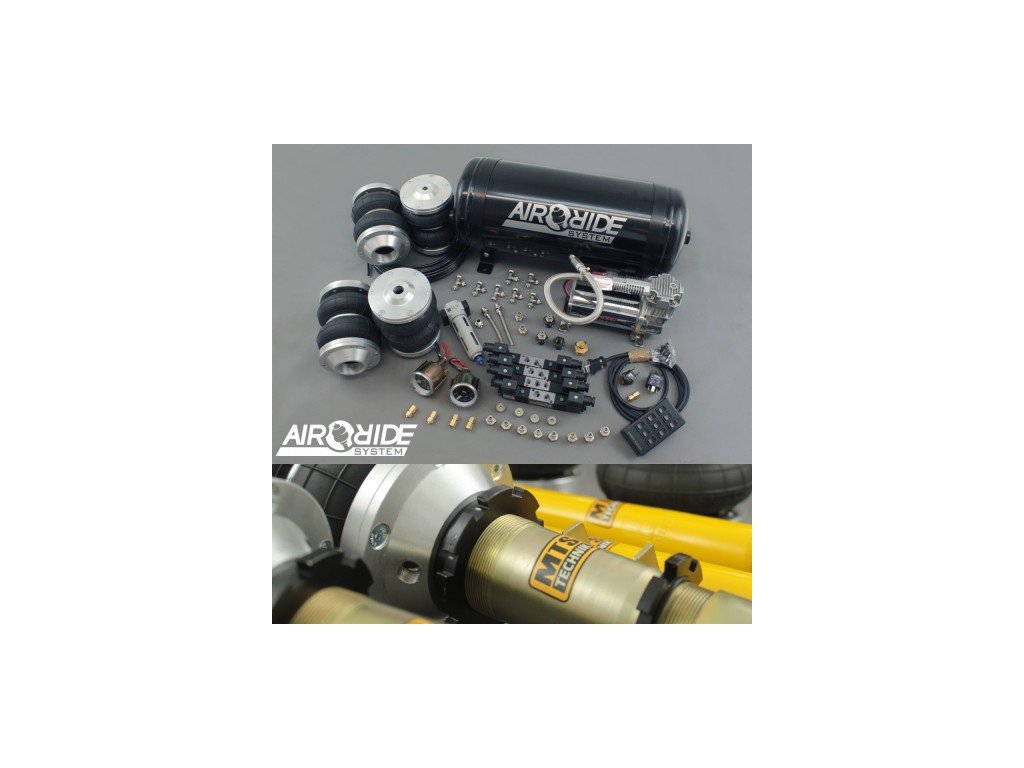

Included:
- Valves 1/4" type 5/3 - 4pcs
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: Remote control with 9 buttons
- Manometers: 2x DUAL 2" VIAIR (optional for the tank)
- Aluminum Brackets for Bags
- INFO! To mount the front bags You have to cut the oem top bearing like in the picture: www.mapet-tuning.com/xxx/air/poduszka_mk5.pdf
- Dedicated bags
- 6mm air hose: 25m
- Other fittings for tank and bags
- Front and rear shocks
- Camber Plates Front (gives the possibility of adjusting the angle and car can go a little lower)
- Shortening the front shock absorbers

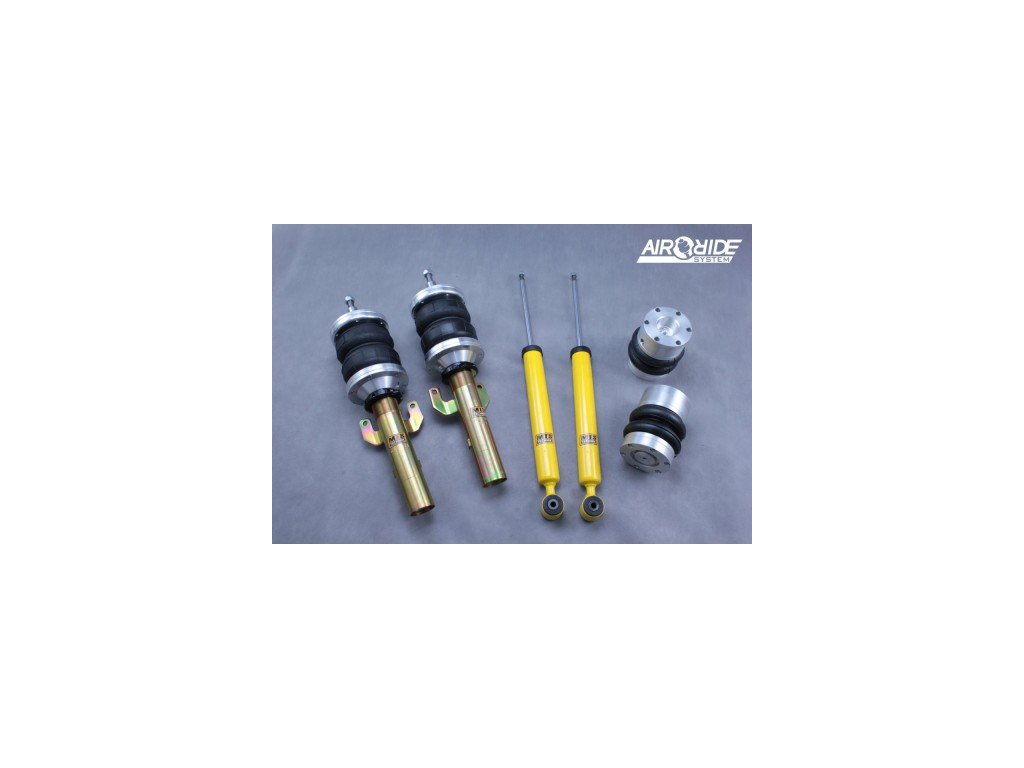

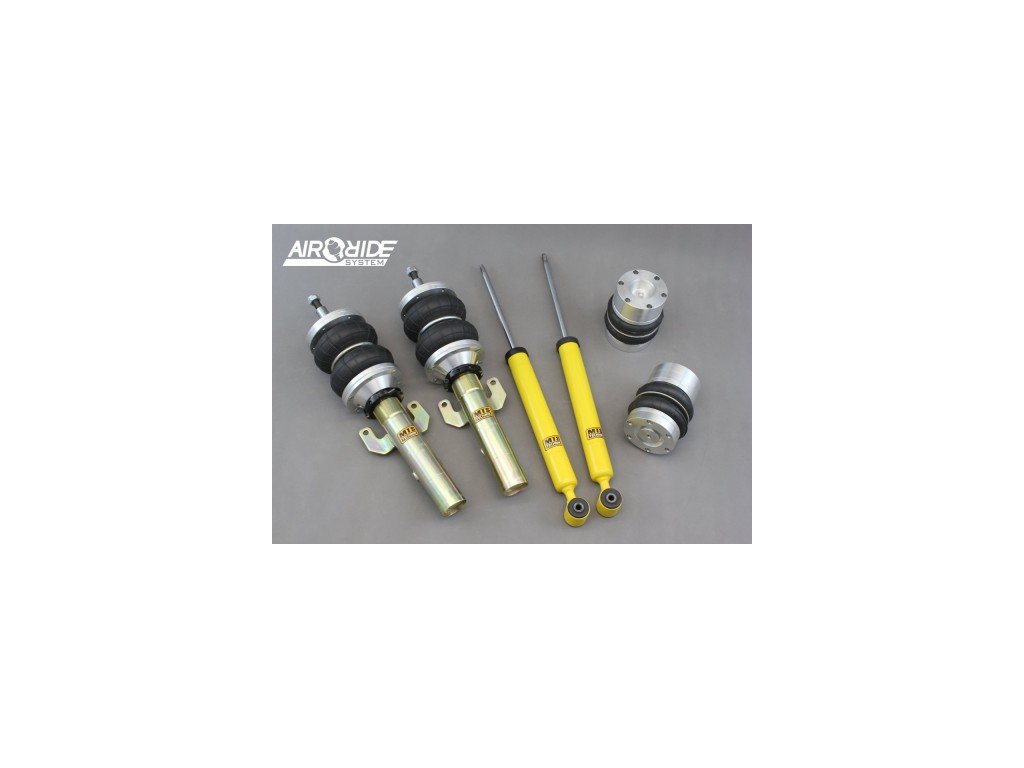

illustrative photo!
Schematic example:
Importer / Producer: BEST LEVEL Katarzyna Janecka
User manuals: https://www.mapet-tuning.com/xxx/MANUALS/
Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
