air-ride BEST PRICE kit VIP 4-way - Seat Leon 5F 2012- with shocks

Air-ride BEST PRICE VIP 4-way kit

Dedicated to:
- Audi A3 8V + Sportback +S3 , 2013 -
- Seat Leon 5F, 2012 -
- Skoda Octavia III 5E , 2012 -
- Volkswagen Golf VII  AU/AUV , 2012 -
- Volkswagen Arteon 3H , 2017 -
- Volkswagen Passat B8  3C/B8/3G, 2014 -

FWD i 4WD

Info:
The BEST PRICE VIP kit allows you to control each bag separately. The speed is much faster than in BASIC kit. Each airspring has own valve - there is no any flow of air between the bags!
Infinitely adjustable - you can set the car on different levels. Dedicated for Customer coilover suspension!

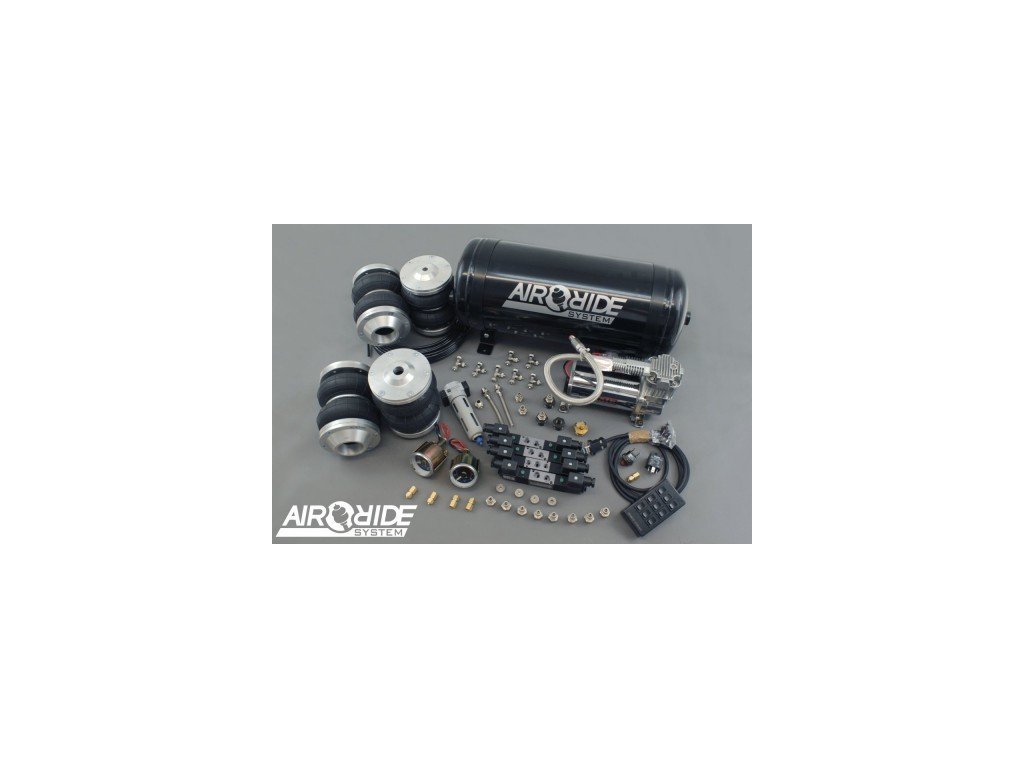

Included:
- Valves  1/4" type 5/3 - 4pcs
- Tank: about 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: Remote control with 9 buttons
- Manometers: 2x DUAL 2" VIAIR (optional for the tank)
- Aluminum Brackets for Bags
- Bags ; Rear 130 bags - multilink or 4,5" bag - twistbeam
- 6mm air hose: 25m
- Metal fittings

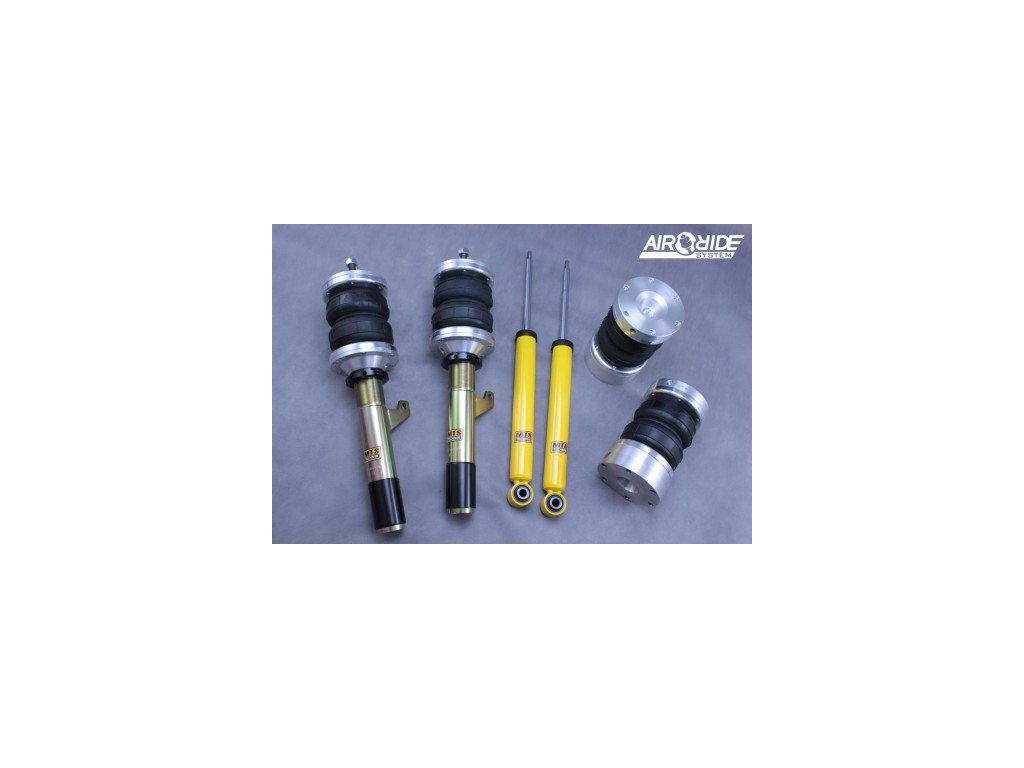

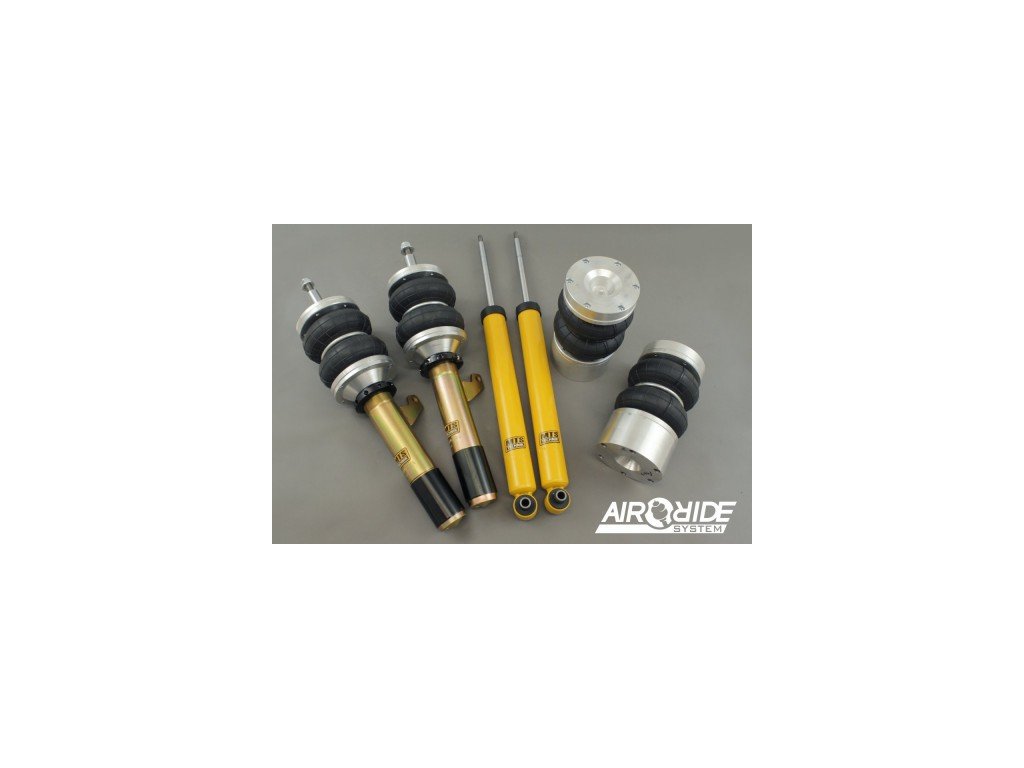

- Shock absorbers

Important: When You make the order - You have to write the type of rear suspension: multi-link or twist beam!

- INFO! To mount the front bags You have to use top bearing like camber plate. You can order it on our website too!
https://airride-system.pl/en/camber-plates/1484-camber-plates-vw-golf-7-leon-5f-audi-a3-8v.html

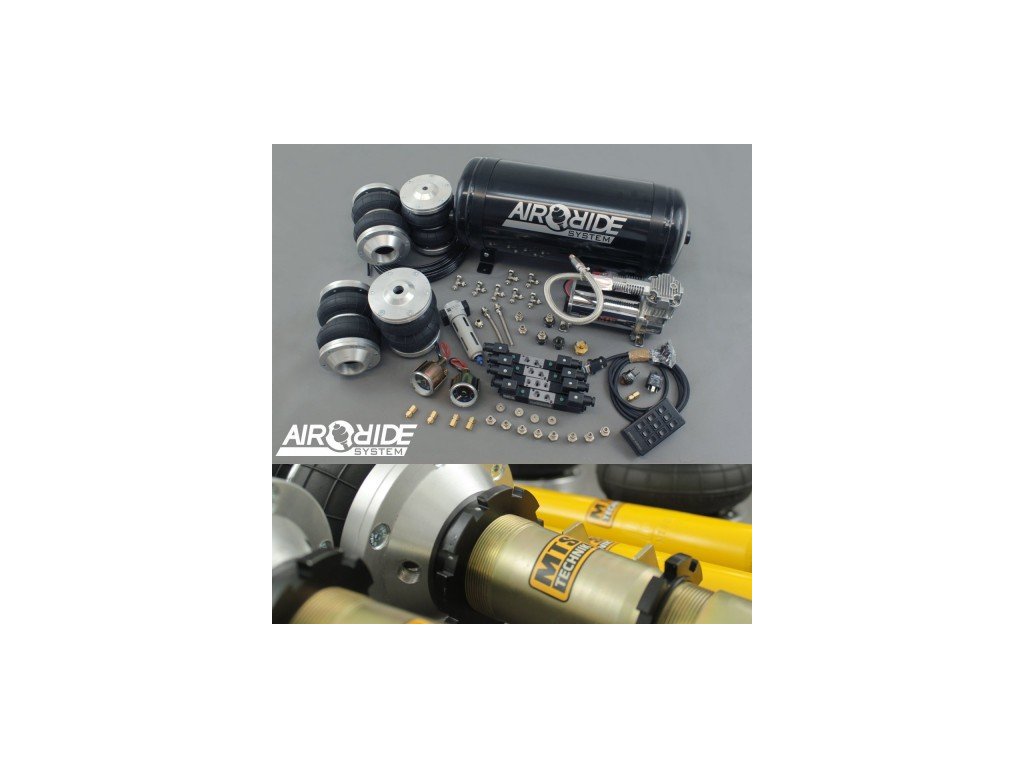

illustrative photo!

Schematic example:

Importer / Producer: BEST LEVEL Katarzyna Janecka

User manuals: https://www.mapet-tuning.com/xxx/MANUALS/

Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
