air-ride BEST PRICE kit VIP 4-way - Opel Astra H with shocks
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride BEST PRICE VIP 4-way kit
Dedicated to:
Opel Astra H
just for fwd versions
Info:
The BEST PRICE VIP kit allows you to control each bag separately. The speed is much faster than in BASIC kit. Each airspring has own valve - there is no any flow of air between the bags!
Infinitely adjustable - you can set the car on different levels.
On the rear for is required shortening serial pins on the spring to 20mm!
To mount the front bags You have to cut the oem top bearing like in the picture: www.mapet-tuning.com/xxx/air/poduszka_mk5.pdf

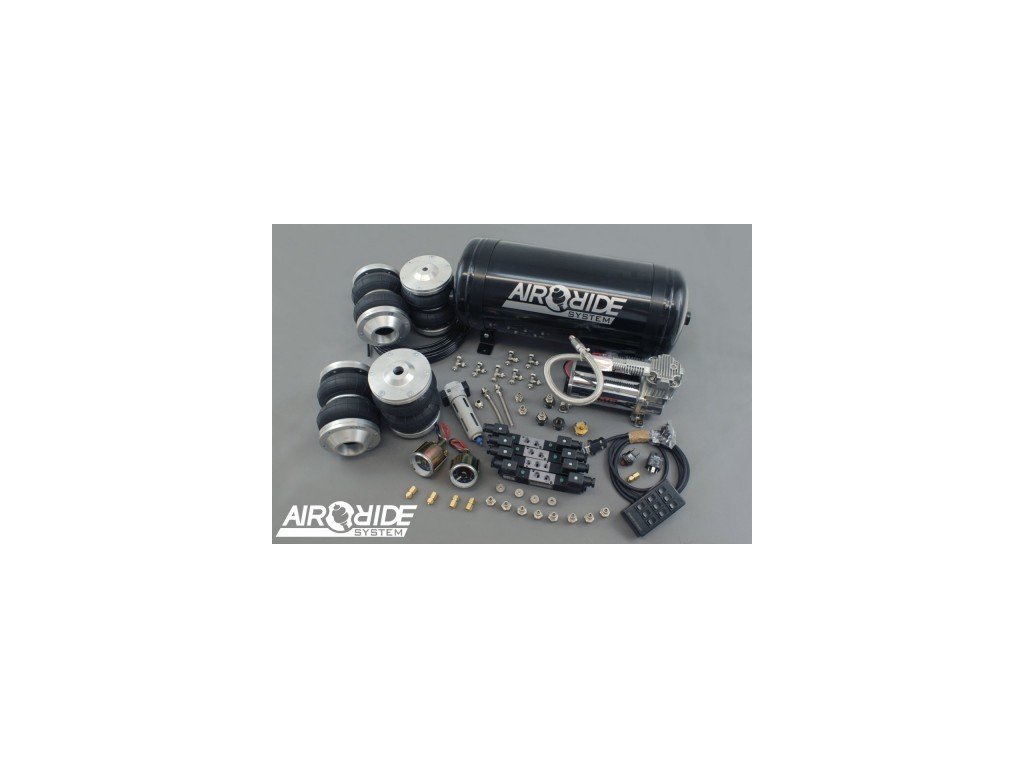

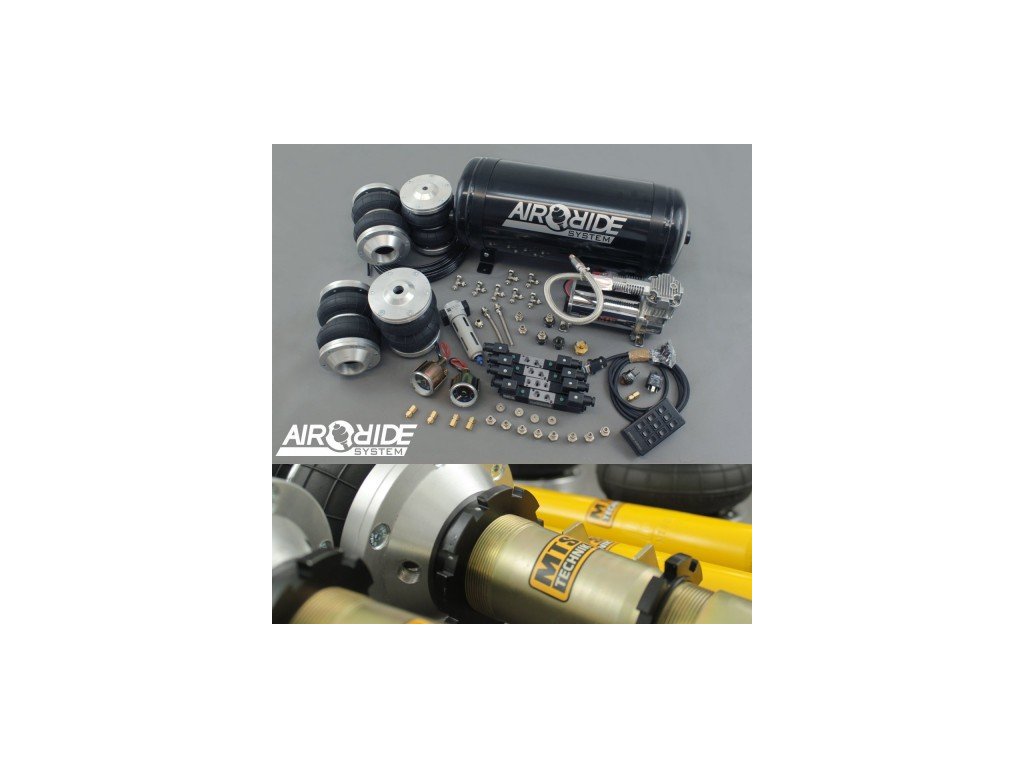

Included:
- Valves 1/4" type 5/3 - 4pcs
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: Remote control with 9 buttons
- Manometers: 2x DUAL 2" VIAIR (optional for the tank)
- Aluminum Brackets for Bags
- Dedicated bags
- 6mm air hose: 25m
- Fittings
- Other fittings for tank and bags
- Shock absorbers
- Shortening the front shock absorbers

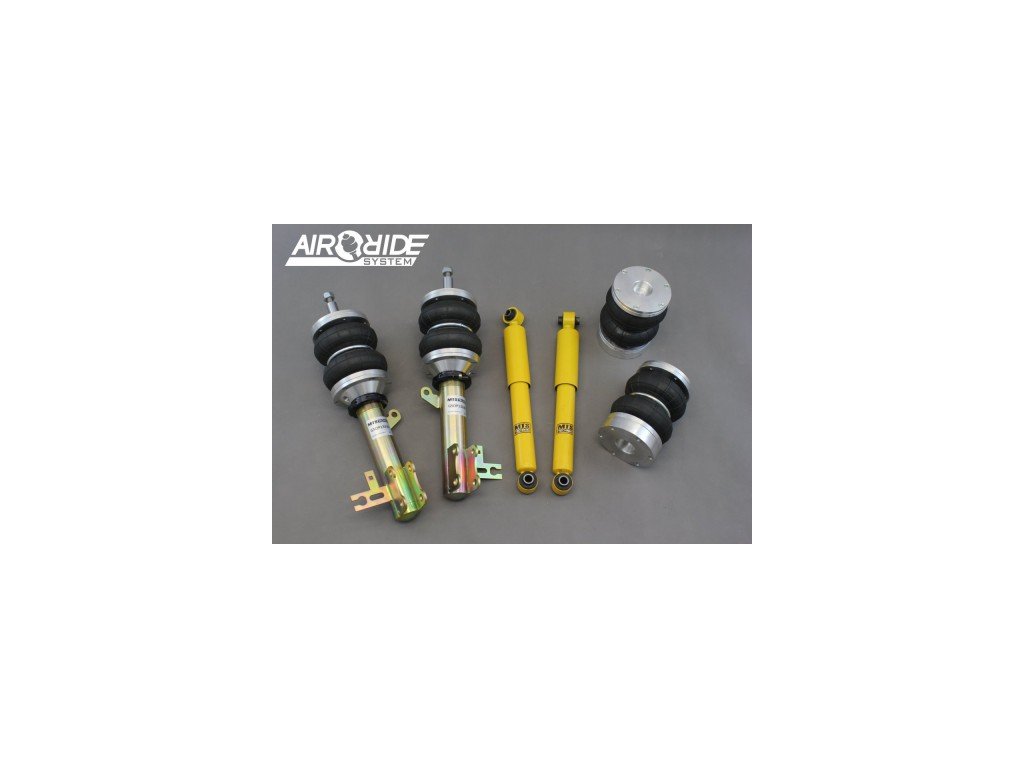

illustrative photo!
Schematic example:
Importer / Producer: BEST LEVEL Katarzyna Janecka
User manuals: https://www.mapet-tuning.com/xxx/MANUALS/
Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
