Air-ride BEST PRICE kit - front/rear
Dedicated to:
Seat Toledo 1
VW Golf 2 / Jetta 2
VW Golf 3 / Vento
VW Corrado
just for fwd versions
Info:
The BEST PRICE Front/Rear allows you to control each axle separately. The speed is much faster than in BASIC kit. Infinitely adjustable - you can set the car on different levels.
The best way is to use on the front top bearing from Golf 3 1995-1998!
On the rear check that if the bag scraped the bodywork, or align the paint to avoid scratching the bags.

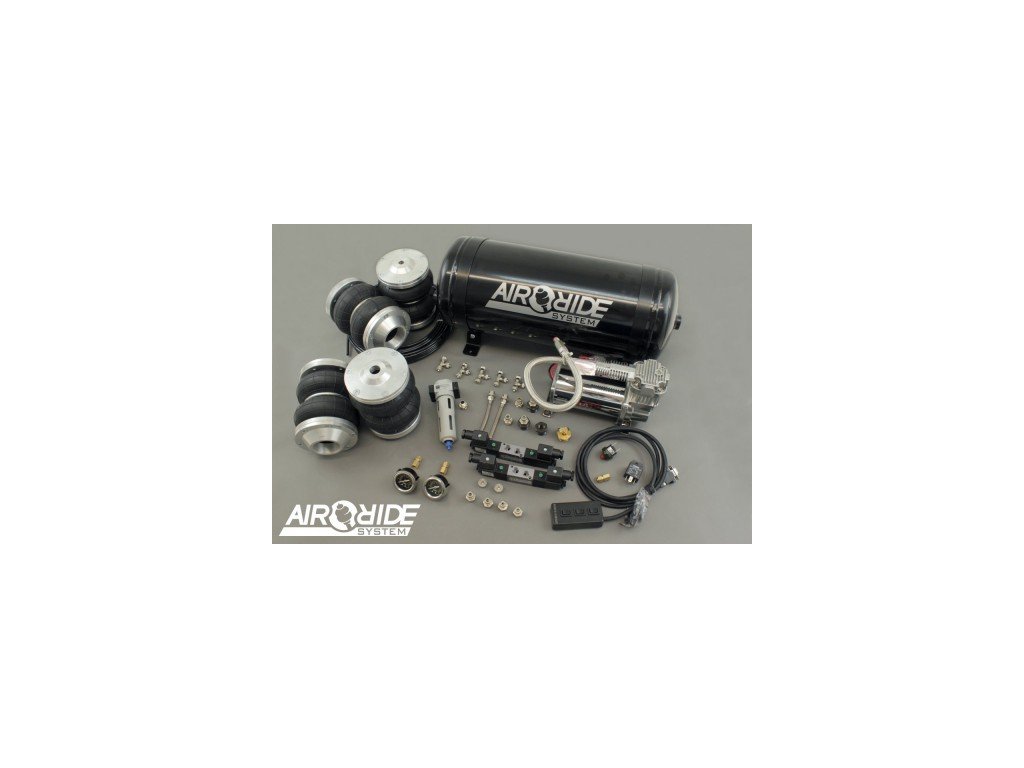

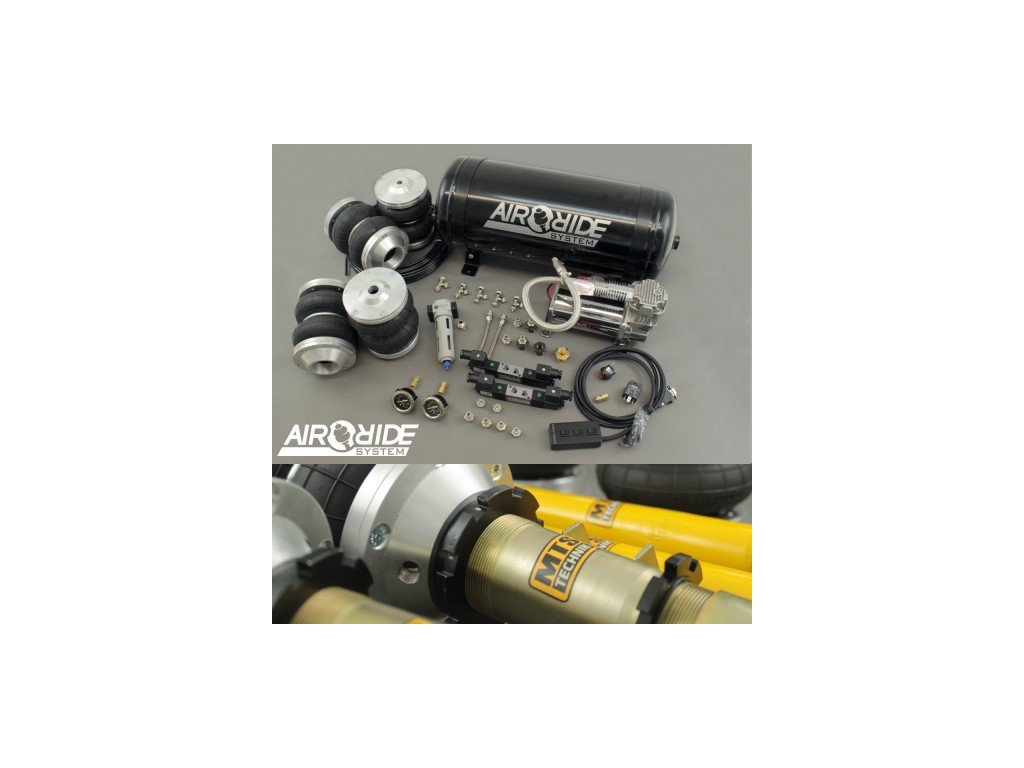

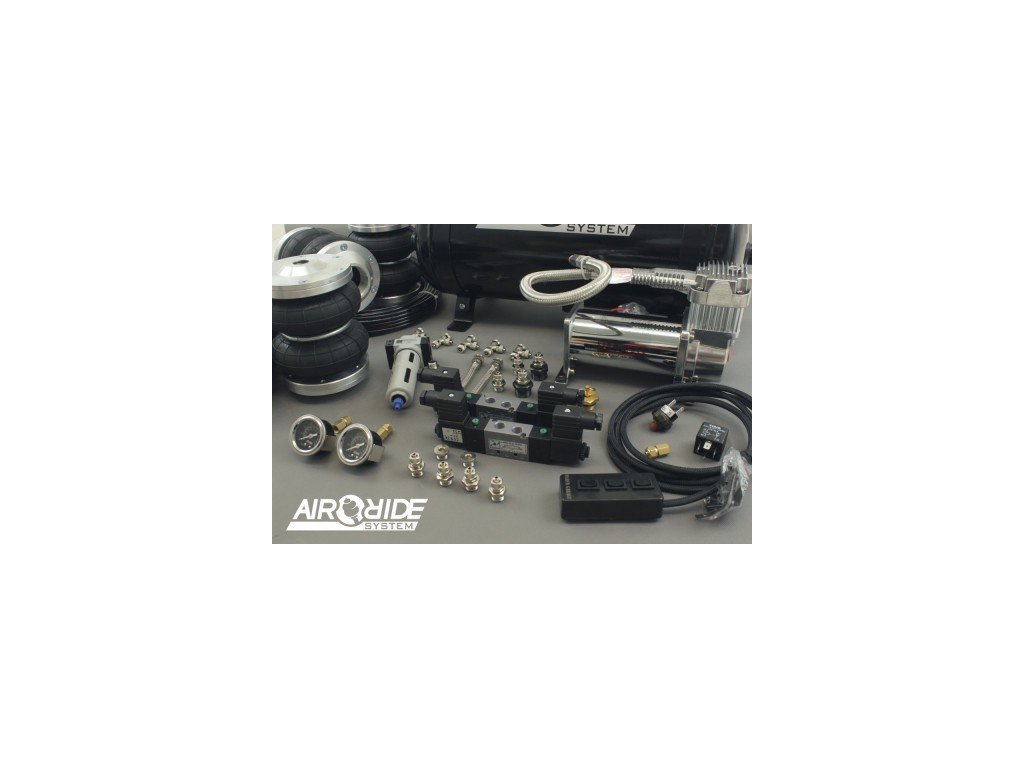

Included:
- Valves 1/4" type 5/3 - 2pcs
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: Remote control with 3 buttons
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Bags
- 6mm air hose: 25m
- Other fittings for tank and bags
- Shock asorbers
- Camber Plates Front (gives the possibility of adjusting the angle and car can go a little lower)
- Shortening the front shock absorbers

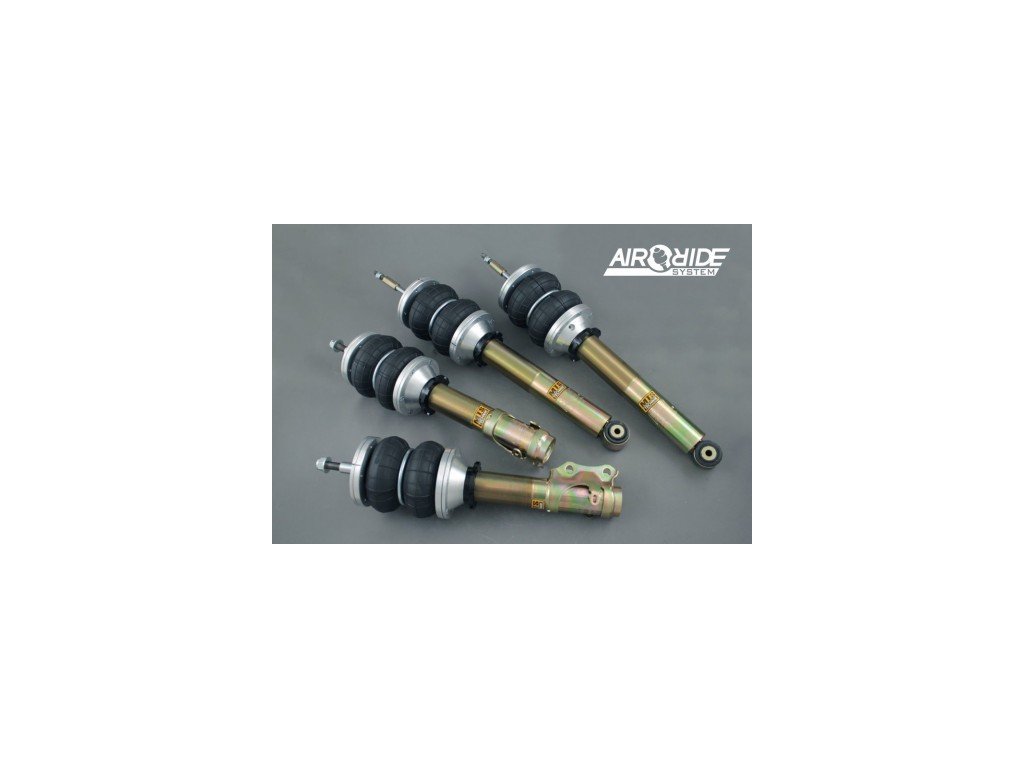

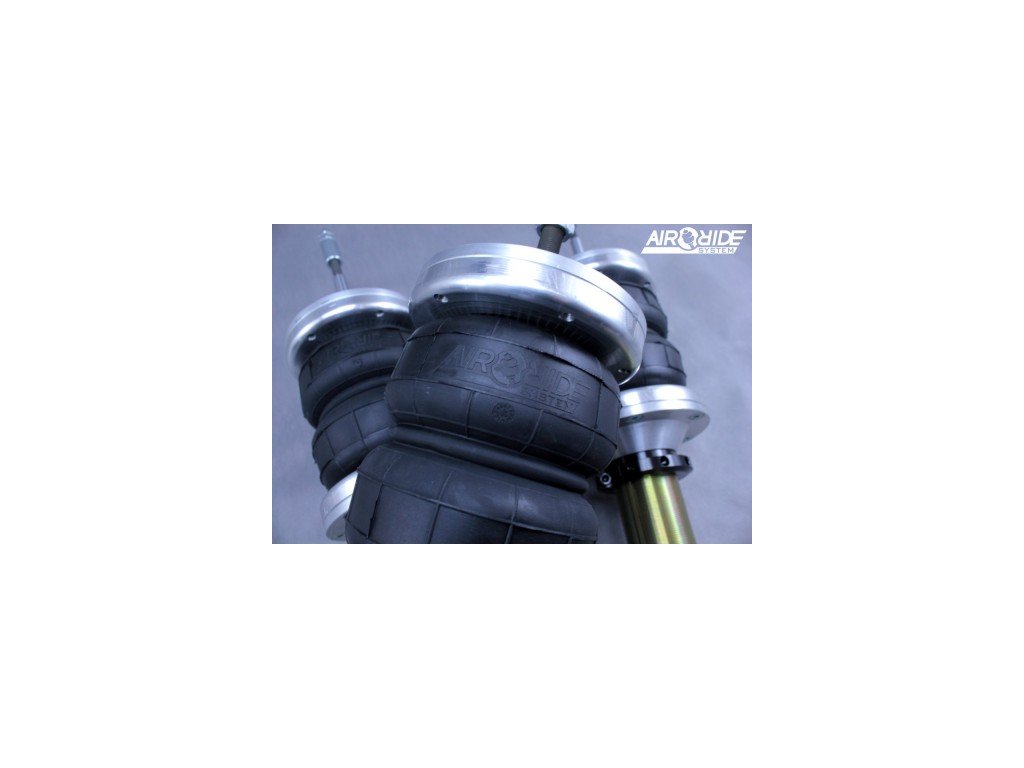

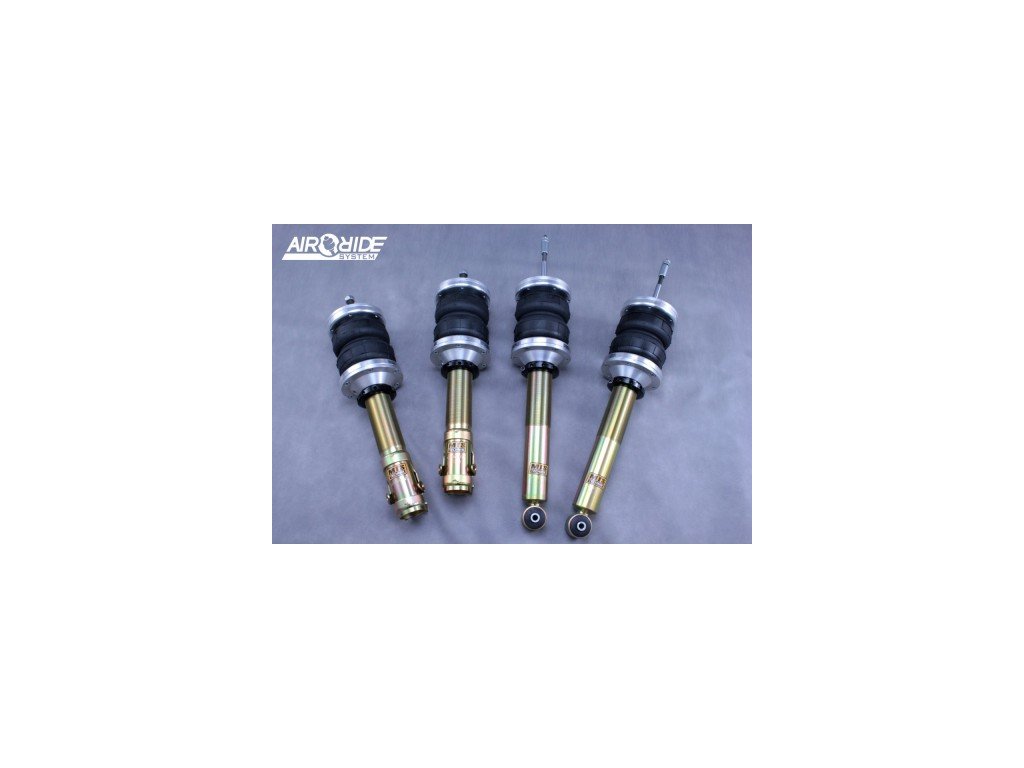

illustrative photo!
Movie with English subtitles:
Schematic example:
