air-ride BEST PRICE kit F/R - Opel Astra H with shocks
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride BEST PRICE kit - front/rear with shock absorbers
Dedicated to:
Opel Astra H
just for fwd versions
Info:
The BEST PRICE Front/Rear allows you to control each axle separately. The speed is much faster than in BASIC kit. Infinitely adjustable - you can set the car on different levels.
On the rear for is required shortening serial pins on the spring to 20mm!
To mount the front bags You have to cut the oem top bearing like in the picture: www.mapet-tuning.com/xxx/air/poduszka_mk5.pdf
Included:
- Valves 1/4" type 5/3 - 2pcs
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: Remote control with 3 buttons
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Bags
- 6mm air hose: 25m
- Fittings
- Other fittings for tank and bags
- Shock absorbers
- Shortening the front shock absorbers

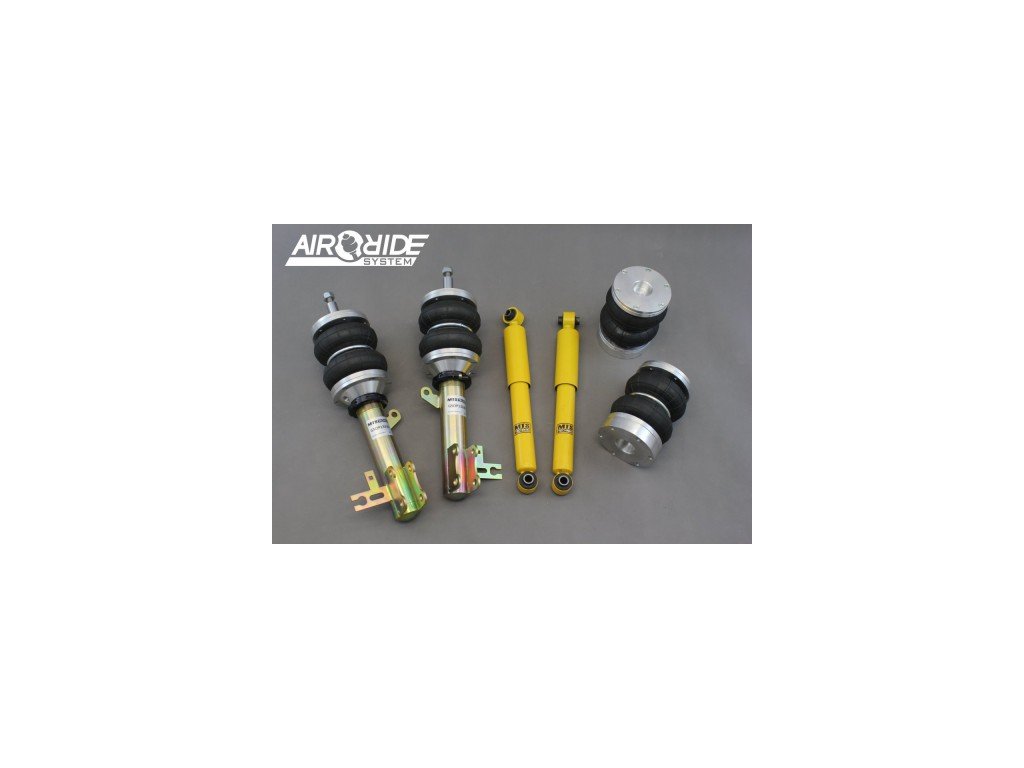

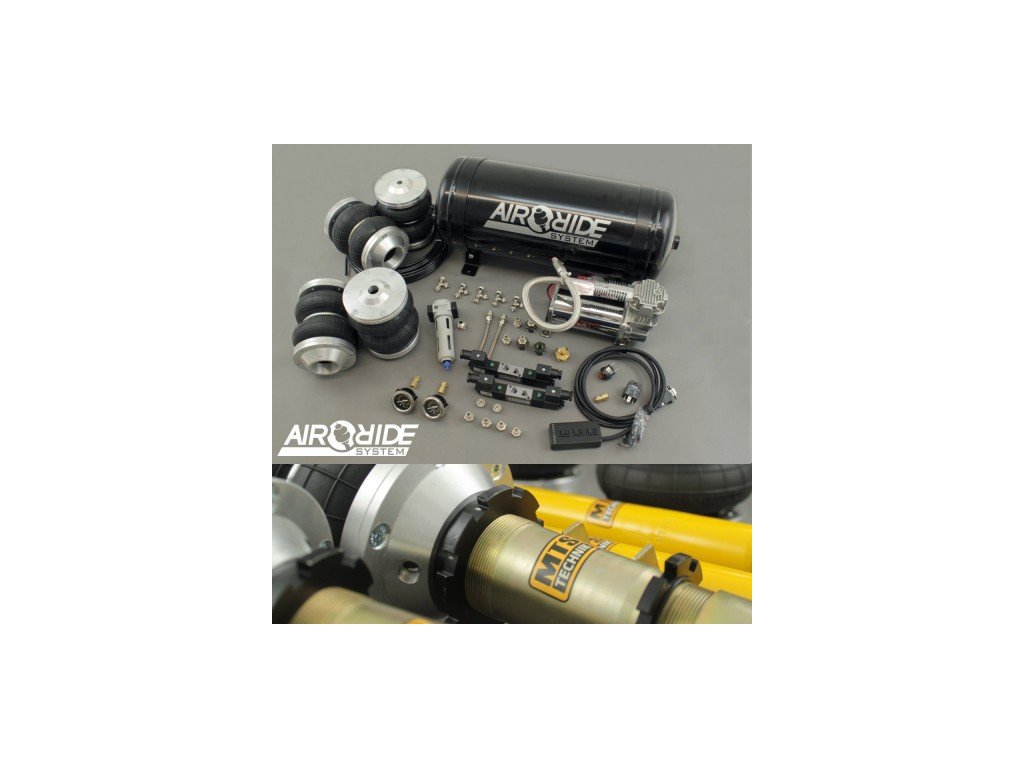

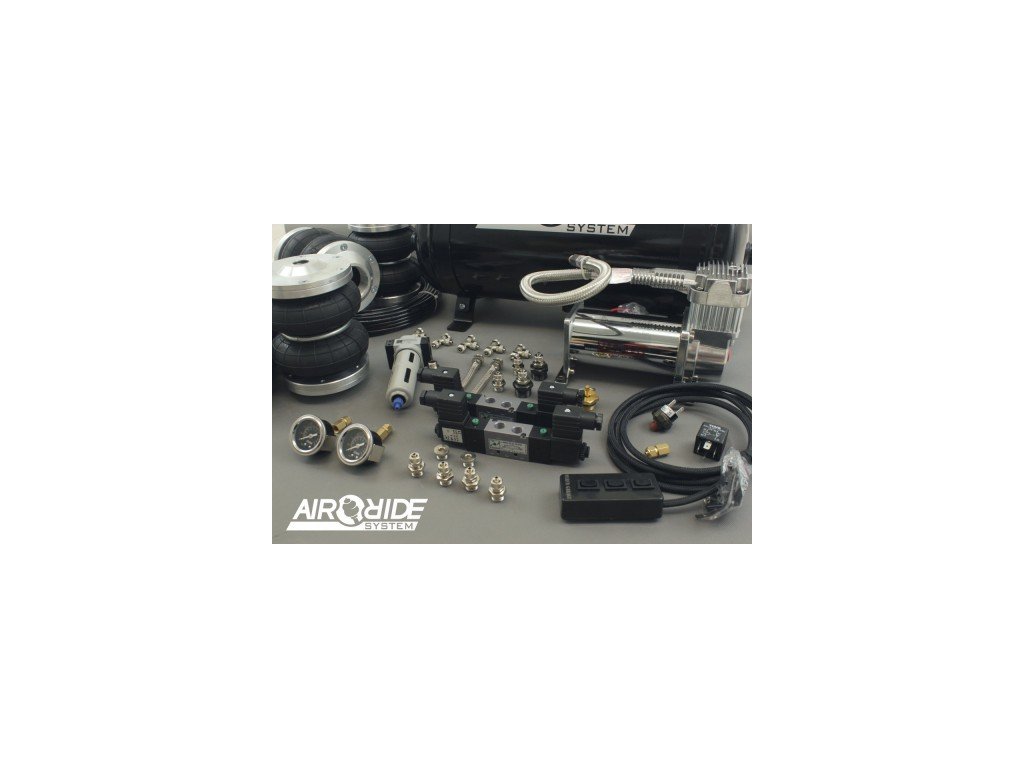

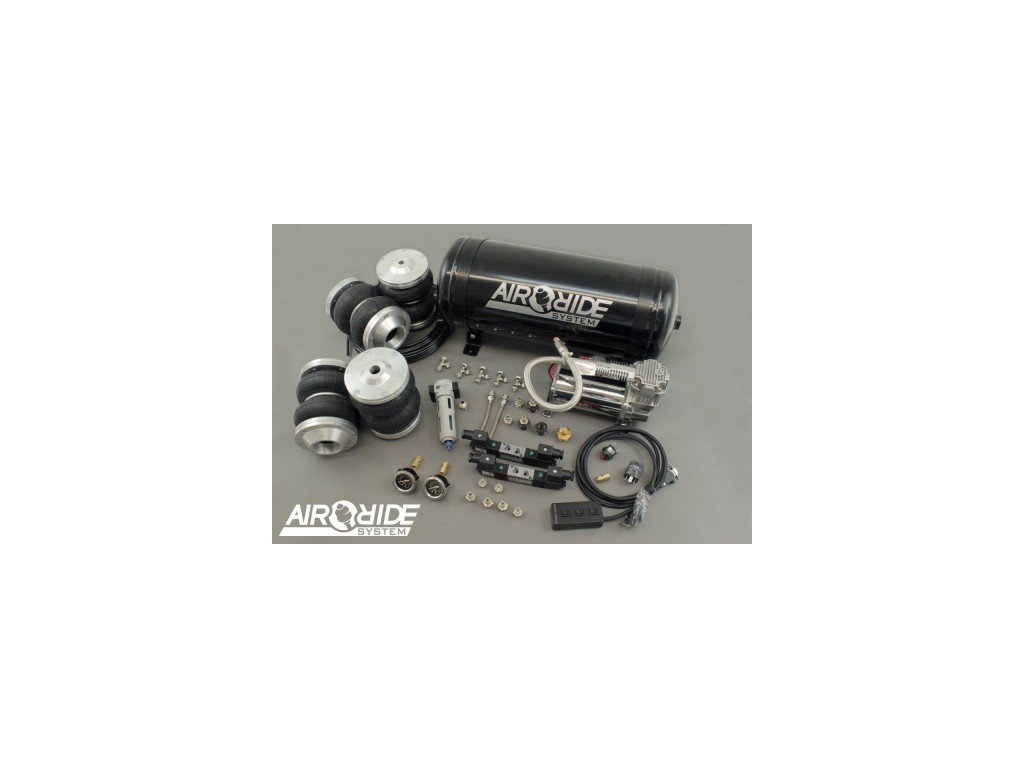

illustrative photo!
Movie with English subtitles:
Schematic example:
Importer / Producer: BEST LEVEL Katarzyna Janecka
User manuals: https://www.mapet-tuning.com/xxx/MANUALS/
Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
