air-ride BEST PRICE kit F/R - BMW Z3 with shocks
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride BEST PRICE kit - front/rear
Dedicated to:
BMW Z3
just for rwd versions
Info:
The BEST PRICE Front/Rear allows you to control each axle separately. The speed is much faster than in BASIC kit. Infinitely adjustable - you can set the car on different levels.
At rear You have to cut bottom spring holder - make flat. The top spring holder have to be drilled to put the airhose inside it.
Included:
- Valves 1/4" type 5/3 - 2pcs
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: Remote control with 3 buttons
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Bags
- 6mm air hose: 25m
- Other fittings for tank and bags
- Shock absorbers
- Camber Plates Front (gives the possibility of adjusting the angle and car can go a little lower)
- Shortening the front shock absorbers

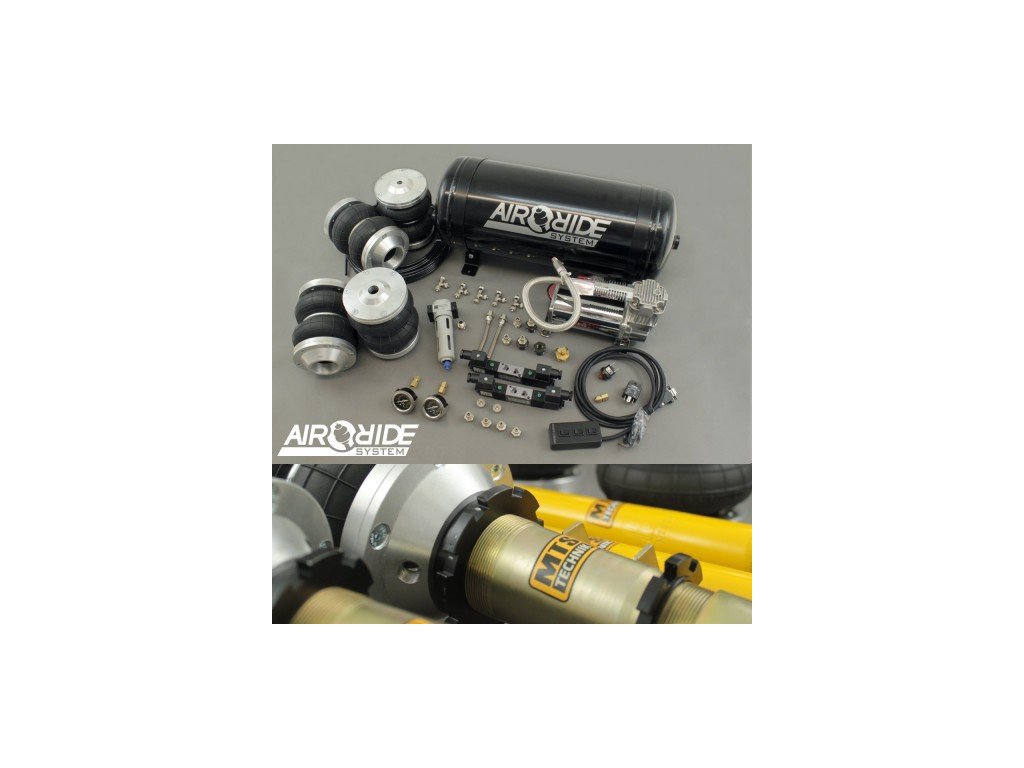

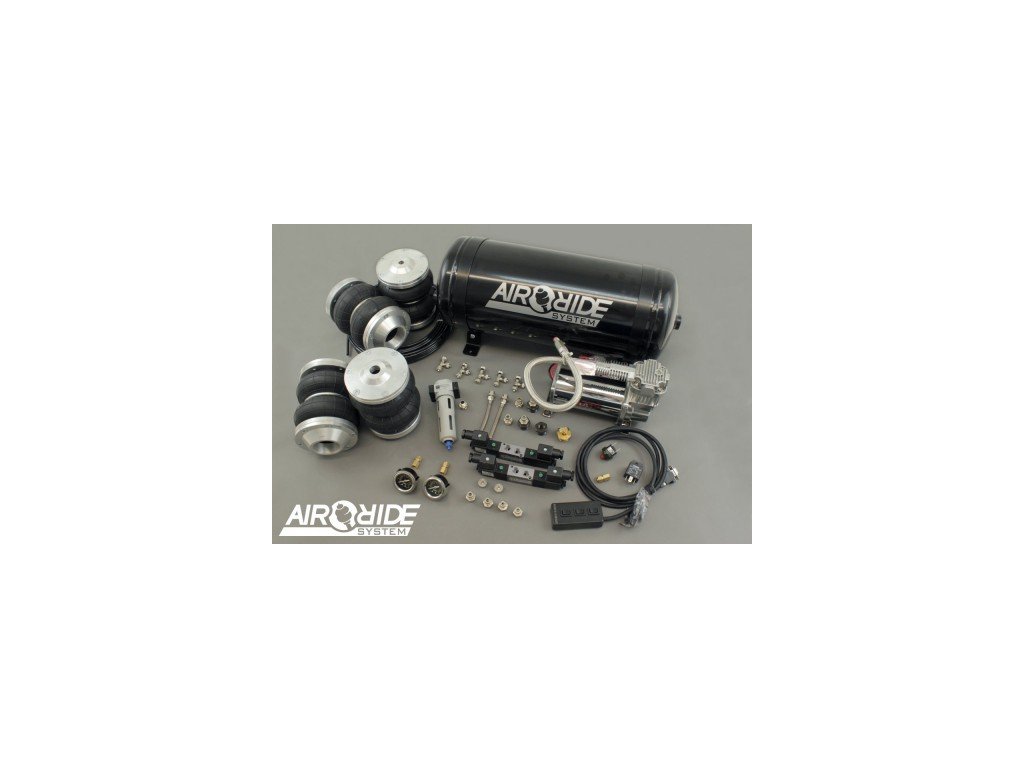

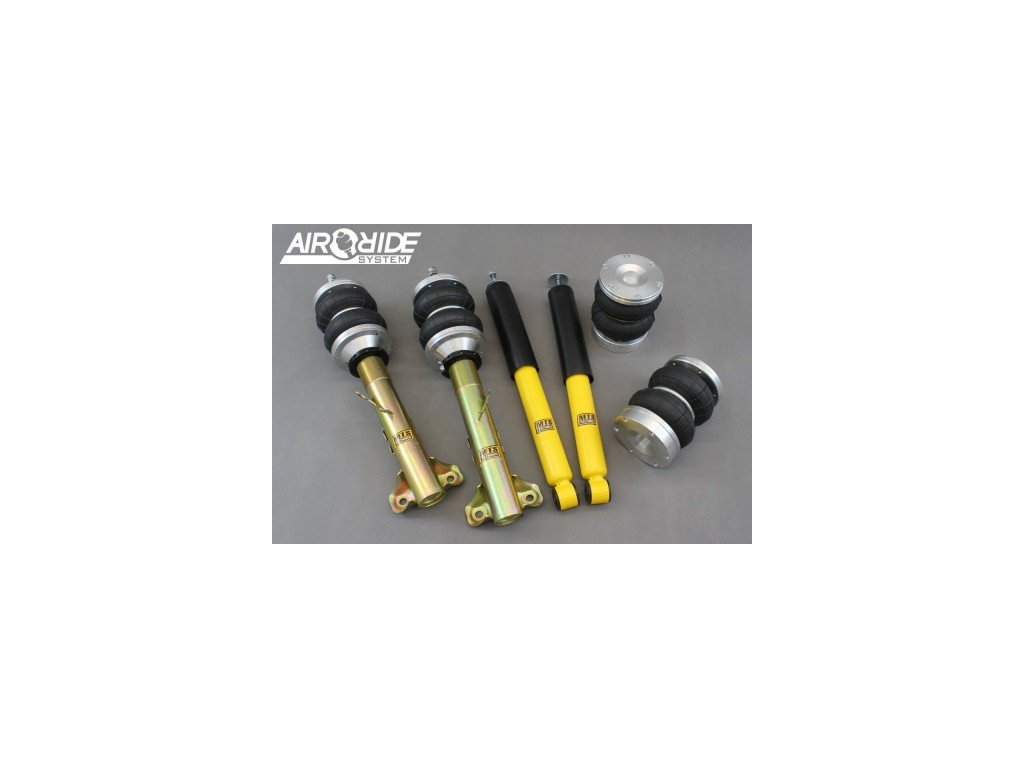

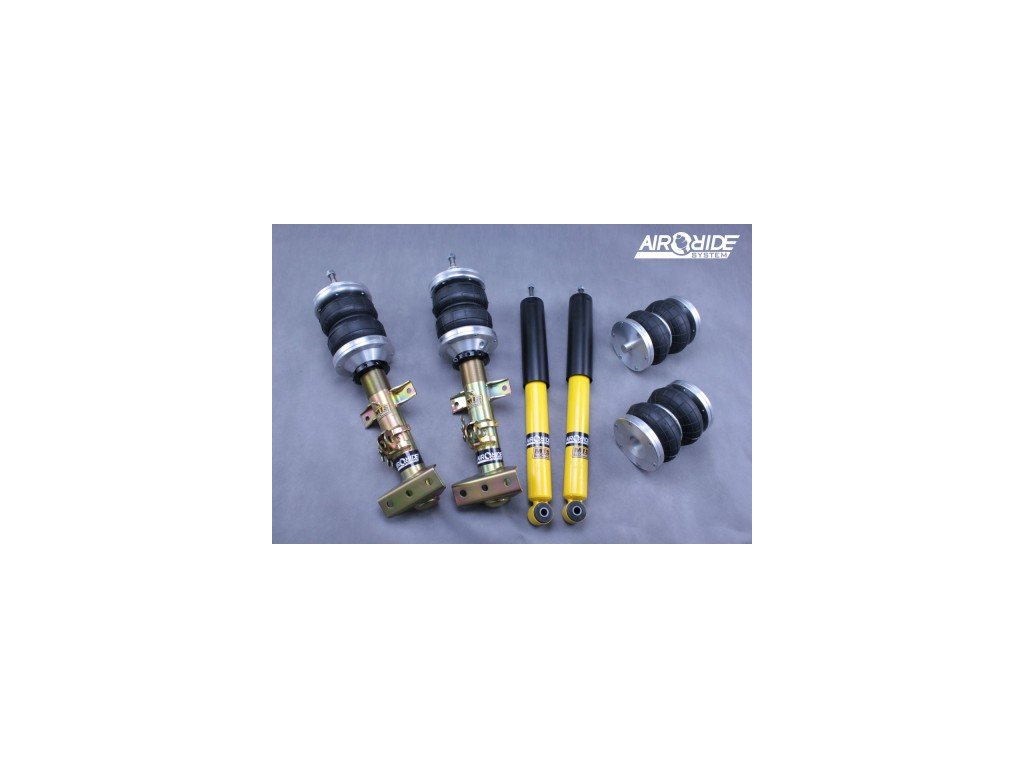

illustrative photo!
Movie with English subtitles:
Schematic example:
Importer / Producer: BEST LEVEL Katarzyna Janecka
User manuals: https://www.mapet-tuning.com/xxx/MANUALS/
Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
