air-ride BEST PRICE kit F/R - Audi A3 8V + S3 with shocks
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride BEST PRICE kit - front/rear
Dedicated to:
- Audi A3 8V + Sportback +S3 , 2013 -
- Seat Leon 5F, 2012 -
- Skoda Octavia III 5E , 2012 -
- Volkswagen Golf VII AU/AUV , 2012 -
- Volkswagen Arteon 3H , 2017 -
- Volkswagen Passat B8 3C/B8/3G, 2014 -
FWD / 4WD
Info:
The BEST PRICE Front/Rear allows you to control each axle separately. The speed is much faster than in BASIC kit. Infinitely adjustable - you can set the car on different levels.

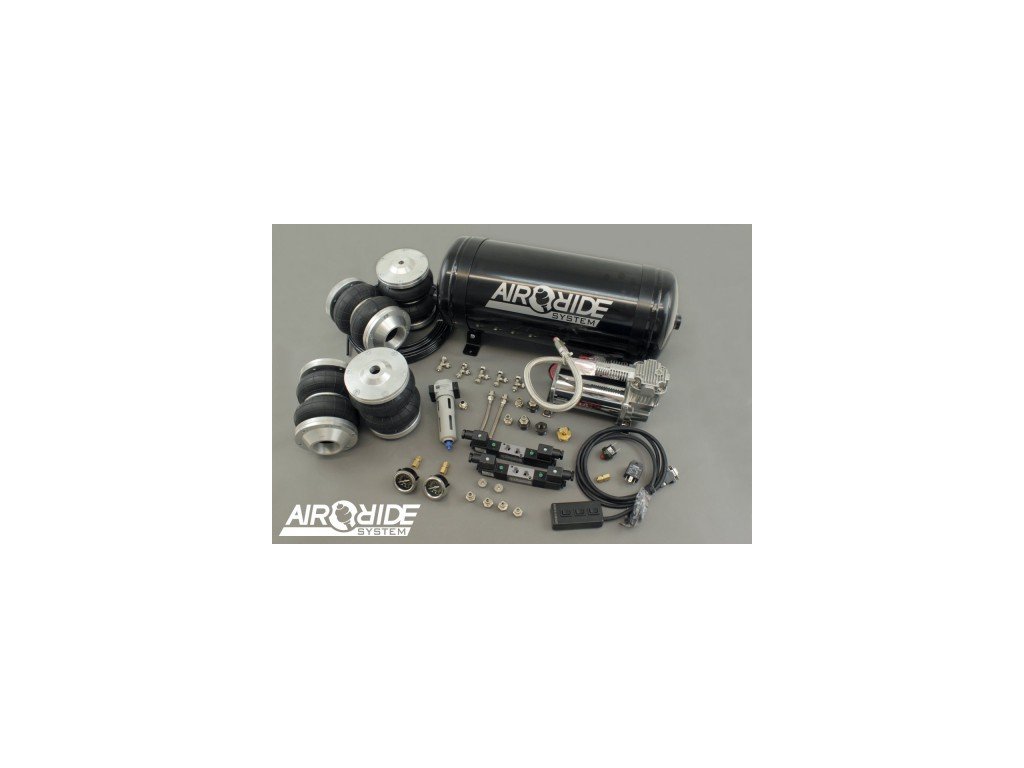

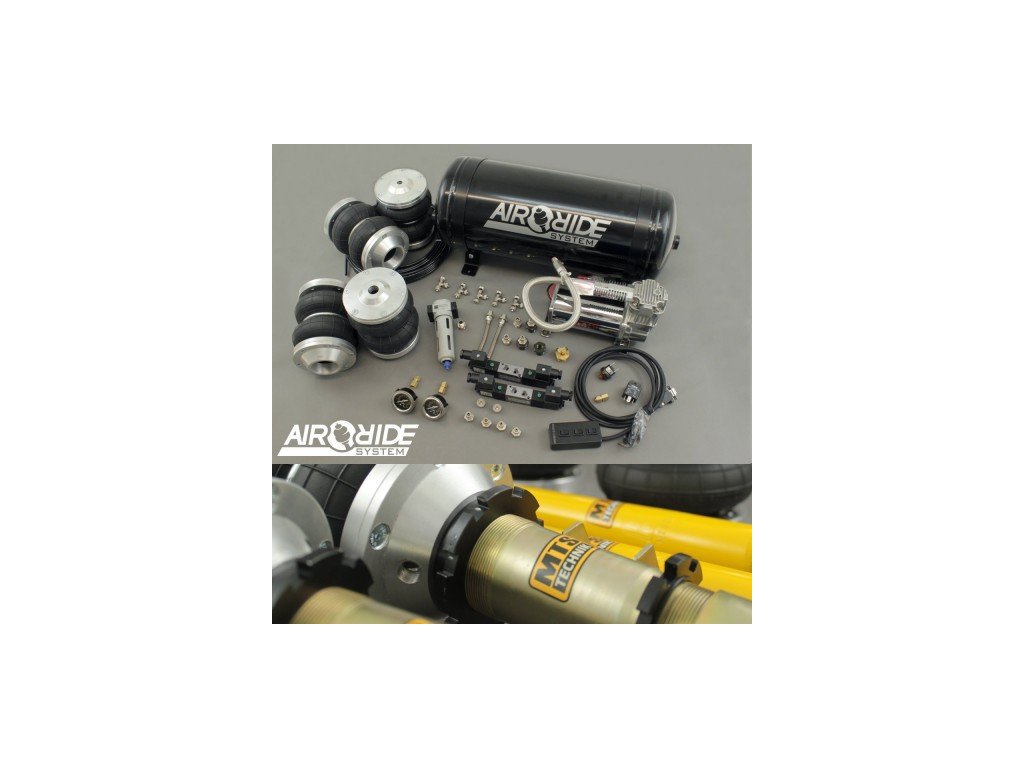

Included:
- Valves 1/4" type 5/3 - 2pcs
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: Remote control with 3 buttons
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Bags; Rear 130 bags - multilink or 4,5" bags - twistbeam
- 6mm air hose: 25m
- Other fittings for tank and bags

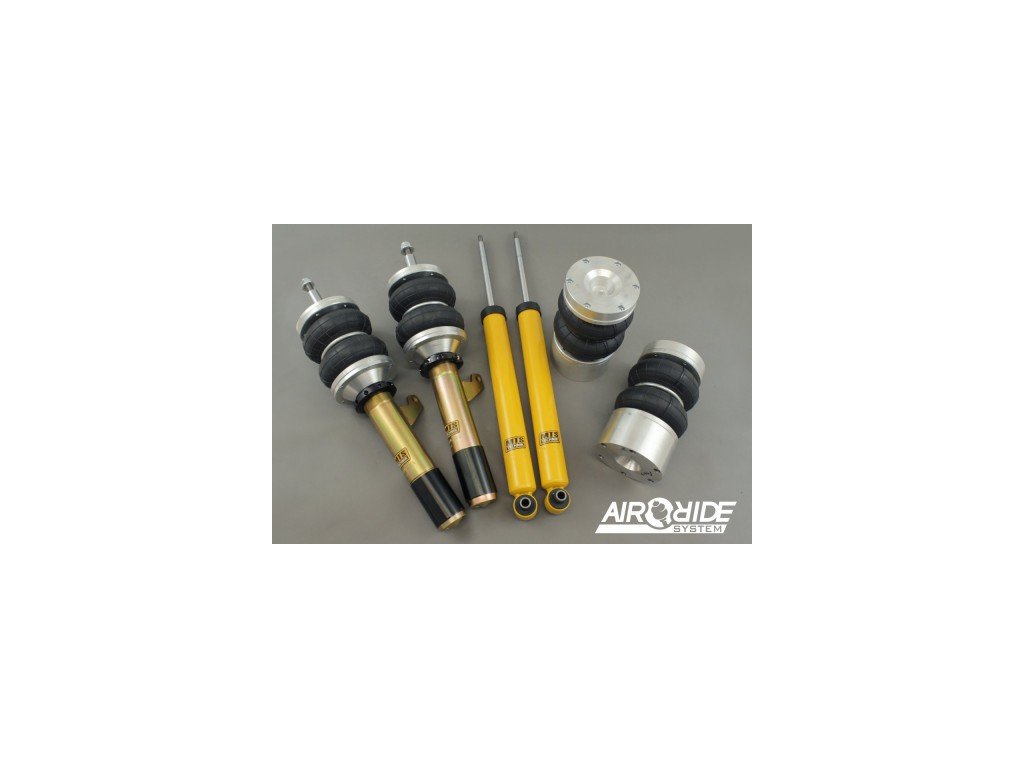

- Shock absorbers
Important: When You make the order - You have to write the type of rear suspension: multi-link or twist beam!
https://airride-system.pl/en/camber-plates/1484-camber-plates-vw-golf-7-leon-5f-audi-a3-8v.html
- Shortening the front shock absorbers
illustrative photo!
Movie with English subtitles:
Schematic example:
Importer / Producer: BEST LEVEL Katarzyna Janecka
User manuals: https://www.mapet-tuning.com/xxx/MANUALS/
Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
