air-ride BASIC kit - Skoda Superb 2
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride BASIC kit - front/rear
Dedicated to:
Audi A3 8P
Audi TT mk2
Skoda Octavia 2
Skoda Superb 2
Seat Leon / Toledo 1P
VW Golf 5 / Jetta
VW Golf 6 / Jetta
VW Passat B6 3C
VW Passat B7
VW Passat CC
VW Eos
fwd and 4wd
Dedicated for Customer coilover suspension!
Measurements needed: http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg
Info:
The basic set is a cheap way to make an air-RIDE. Designed for people who do not care for the show and speed, but want to be able to lie on the ground on the car-show and go up when you ride. The speed of kit is similar to that cars with NIVO systems. Kit allows you to control each axis separately. Infinitely adjustable - you can set the car on different levels.
Dedicated for Customer coilover suspension!

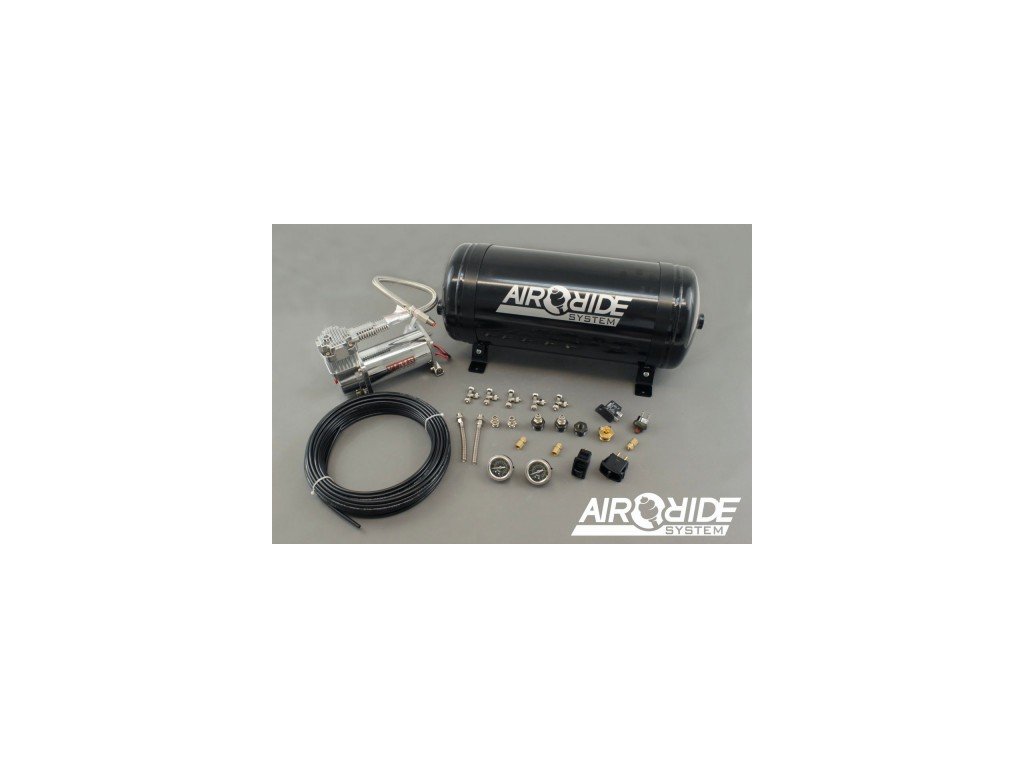

Included:
- 4 complete mounting brackets

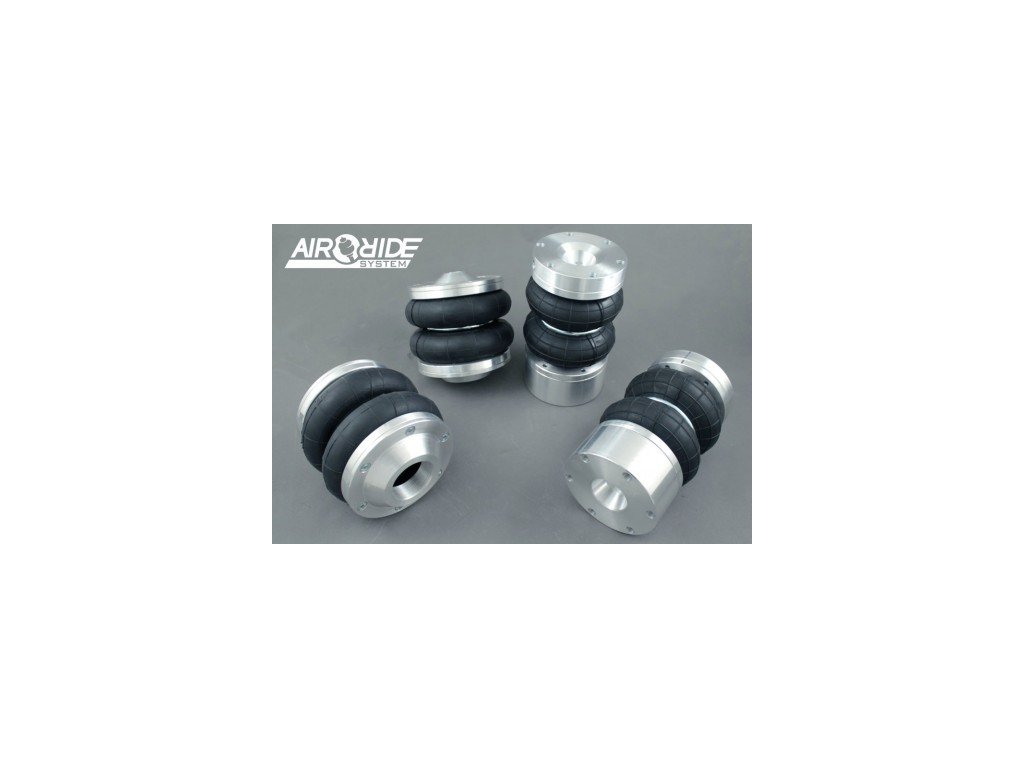

- Dedicated bags
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: 2x manual AVS pneumatic switch
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Bags
- WARNING ! To mount the front bags You have to cut the oem top bearing like in the picture: www.mapet-tuning.com/xxx/air/poduszka_mk5.pdf
The best way is to use Camber Plates from our offer!
- 6mm air hose: 25m
- Other fittings for tank and bags
- Camber Plates Front (gives the possibility of adjusting the angle and car can go a little lower)
- Shortening the front shock absorbers
- Coilover shock absorbers - the price depends on the brand

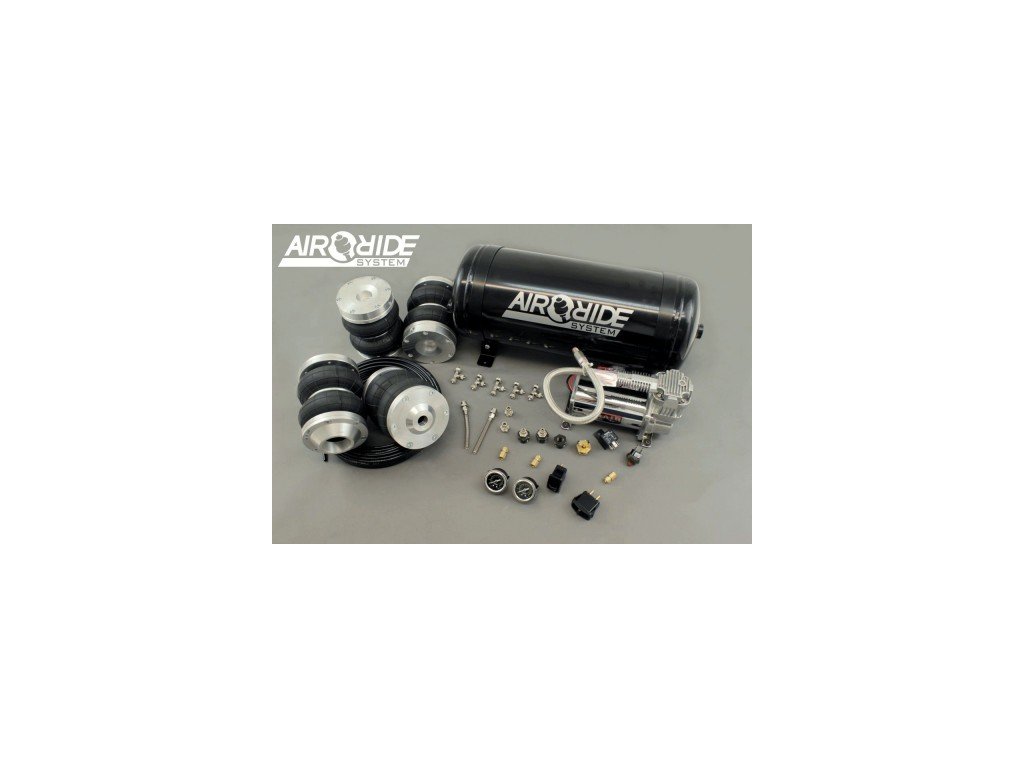

illustrative photo!
Movie with English subtitles:
Schematic example:
Importer / Producer: BEST LEVEL Katarzyna Janecka
User manuals: https://www.mapet-tuning.com/xxx/MANUALS/
Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
