air-ride BASIC kit - Seat Ibiza / Cordoba - 6L / 6J
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride BASIC kit - front/rear
Dedicated to:
Audi A1 / A2
Seat Ibiza / Cordoba 6L
Skoda Fabia 5J
Skoda Fabia 6Y
VW Polo 9N
VW Polo 6R
just fwd versions
Dedicated for Customer coilover suspension!
Measurements needed: http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg
Info:
The basic set is a cheap way to make an air-RIDE. Designed for people who do not care for the show and speed, but want to be able to lie on the ground on the car-show and go up when you ride. The speed of kit is similar to that cars with NIVO systems. Kit allows you to control each axis separately. Infinitely adjustable - you can set the car on different levels. Dedicated for Customer coilover suspension!

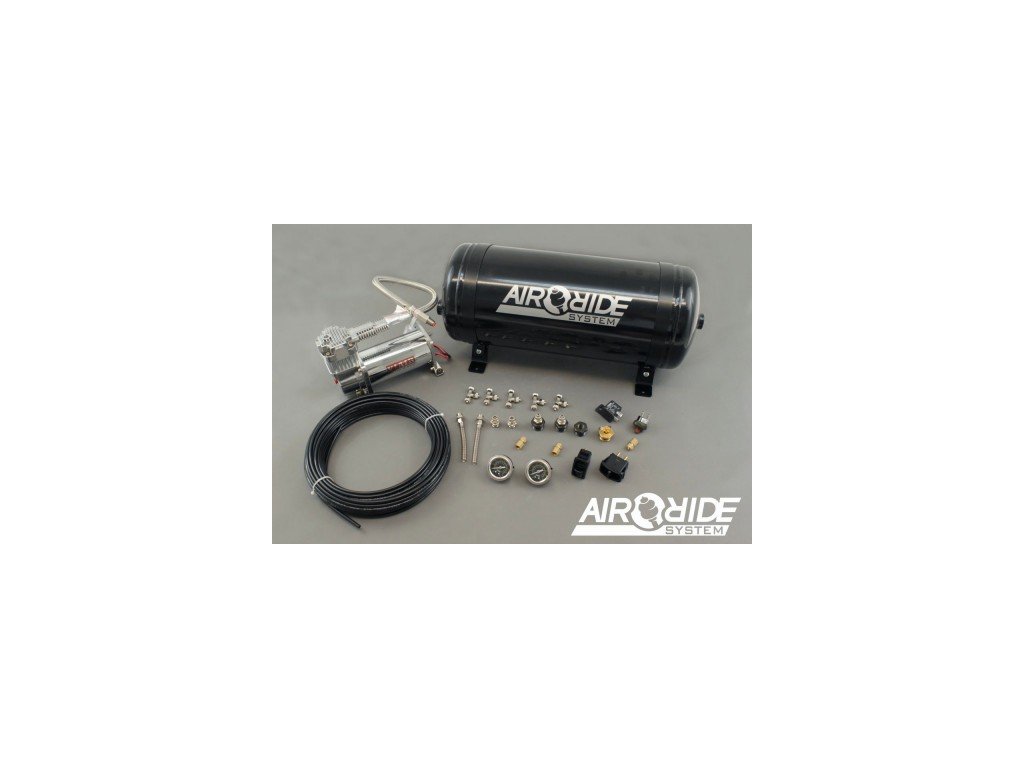

Included:
- 4 complete mounting brackets
- Dedicated bags
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: 2x manual AVS pneumatic switch
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Important! To mount the front You have to cut the oem top bearing like on the picture: http://www.mapet-tuning.com/xxx/air/poduszka_mk5.pdf

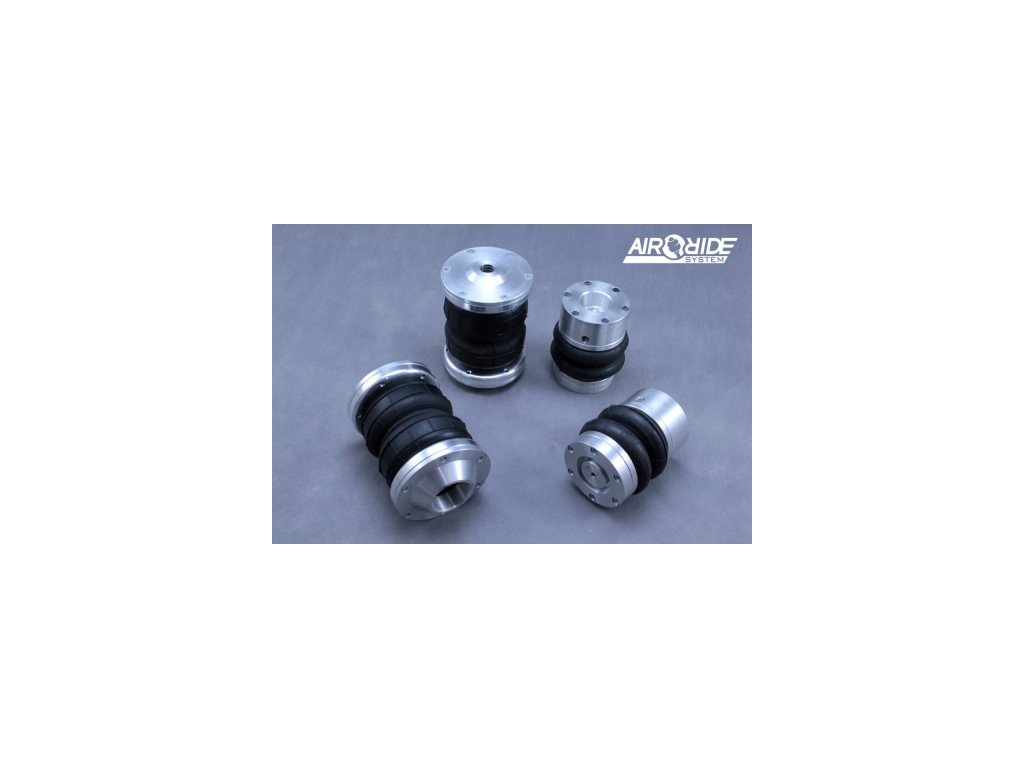

- Bags
- 6mm air hose: 25m
- Other fittings for tank and bags
- Shortening the front shock absorbers
- Coilover shock absorbers - the price depends on the brand
illustrative photo!
Movie with English subtitles:
Schematic example:
Importer / Producer: BEST LEVEL Katarzyna Janecka
User manuals: https://www.mapet-tuning.com/xxx/MANUALS/
Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
