air-ride BASIC kit - Opel Astra H with shocks
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride BASIC kit - front/rear
Dedicated to:
Opel Astra H
just for fwd versions
Info:
The basic set is a cheap way to make an air-RIDE. Designed for people who do not care for the show and speed, but want to be able to lie on the ground on the car-show and go up when you ride. The speed of kit is similar to that cars with NIVO systems. Kit allows you to control each axis separately. Infinitely adjustable - you can set the car on different levels.
On the rear for is required shortening serial pins on the spring to 20mm!
To mount the front bags You have to cut the oem top bearing like in the picture: www.mapet-tuning.com/xxx/air/poduszka_mk5.pdf

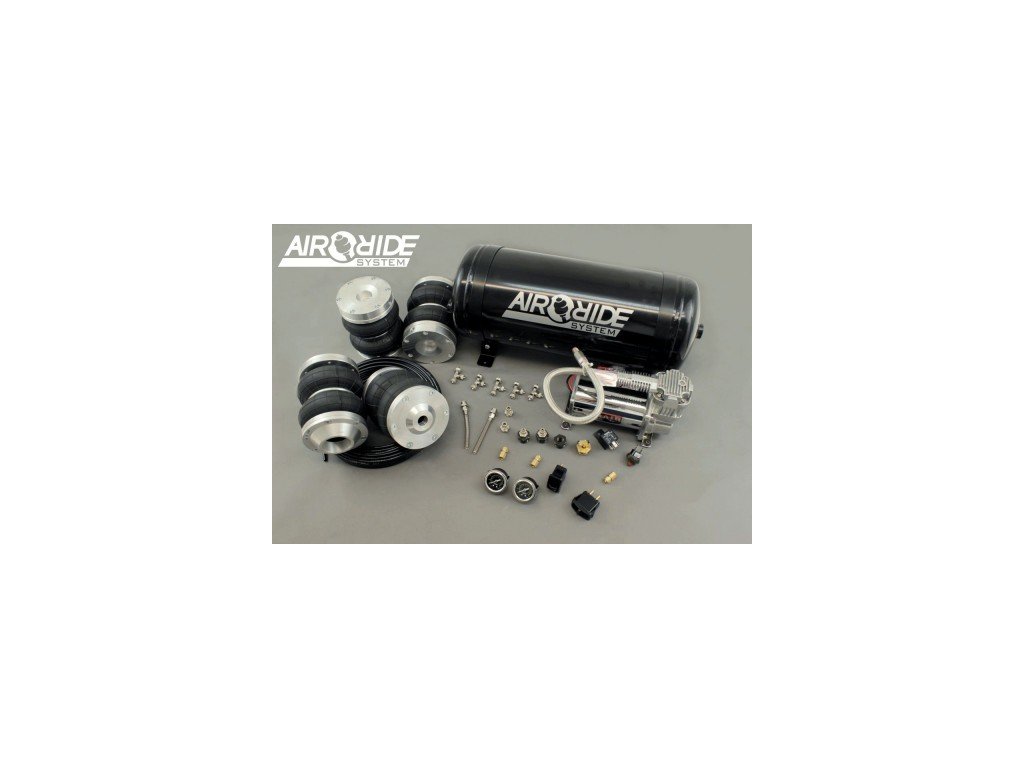

Included:
- 4 complete mounting brackets
- Dedicated bags

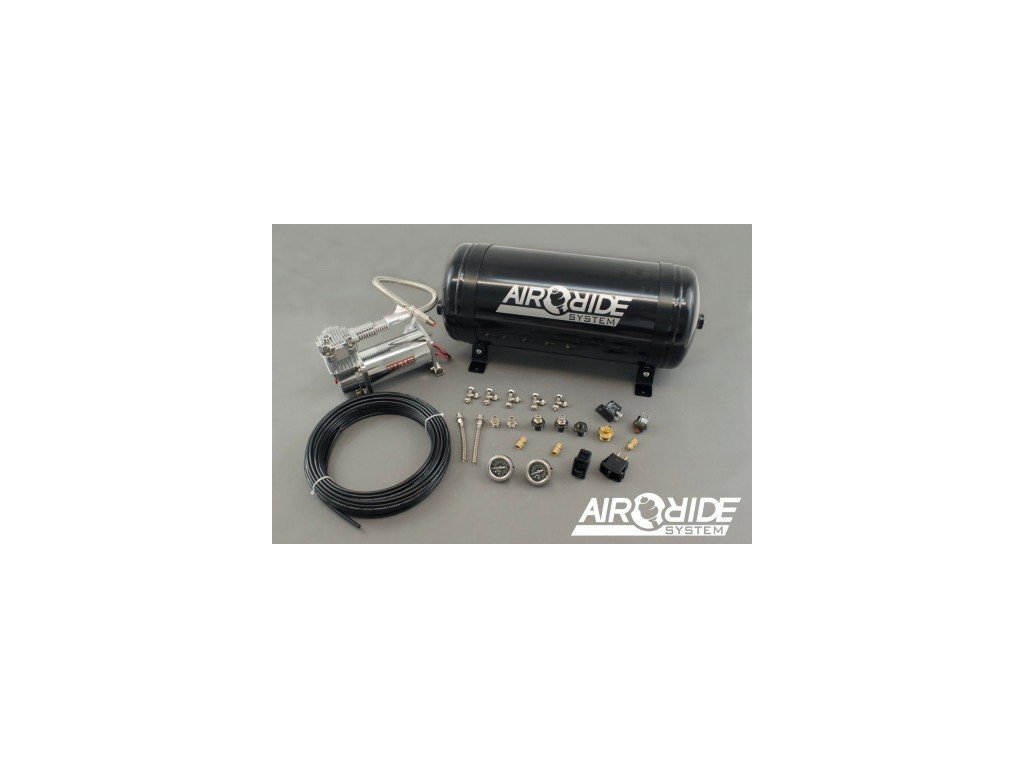

- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: 2x manual AVS pneumatic switch
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Bags
- 6mm air hose: 25m
- Other fittings for tank and bags

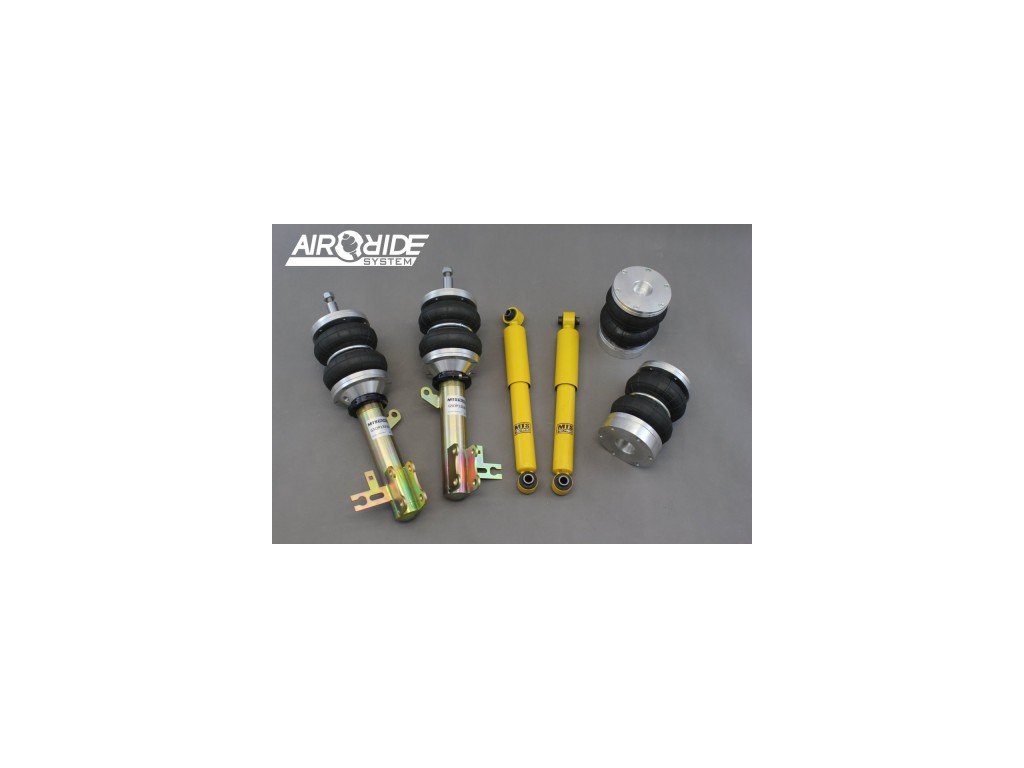

- Shock absorbers
- Shortening the front shock absorbers

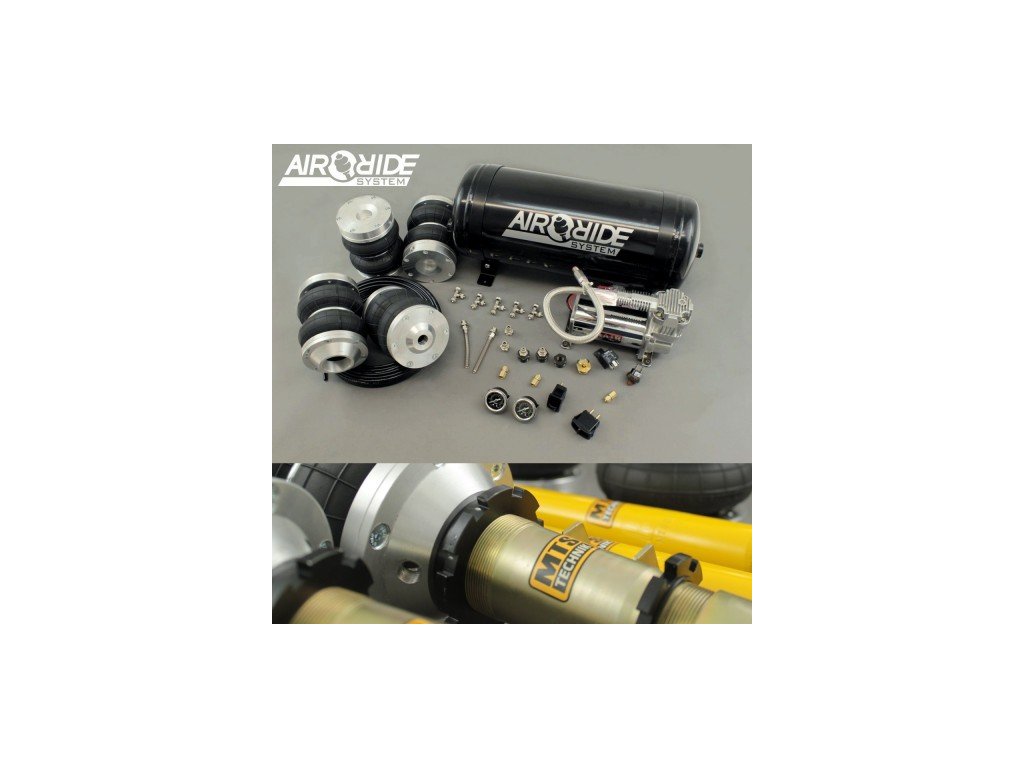

illustrative photo!
Movie with English subtitles:
Schematic example:
Importer / Producer: BEST LEVEL Katarzyna Janecka
User manuals: https://www.mapet-tuning.com/xxx/MANUALS/
Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
