air-ride BASIC kit - Honda Civic / CRX 1992-2000

Air-ride BASIC kit - front/rear

Dedicated to:
Honda Civic
Honda CRX

EG2, EG3, EG4, EG5, EG6, EG8, EG9, EH6, EH9, EJ1, EJ2, EK1, EK3, EK4, EJ6, EJ8, EJ9
1992-2000

Dedicated for Customer coilover suspension!
Measurements needed: http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg

Info:
The basic set is a cheap way to make an air-RIDE. Designed for people who do not care for the show and speed, but want to be able to lie on the ground on the car-show and go up when you ride. The speed of kit is similar to that cars with NIVO systems. Kit allows you to control each axis separately. Infinitely adjustable - you can set the car on different levels.

Dedicated for Customer coilover suspension!

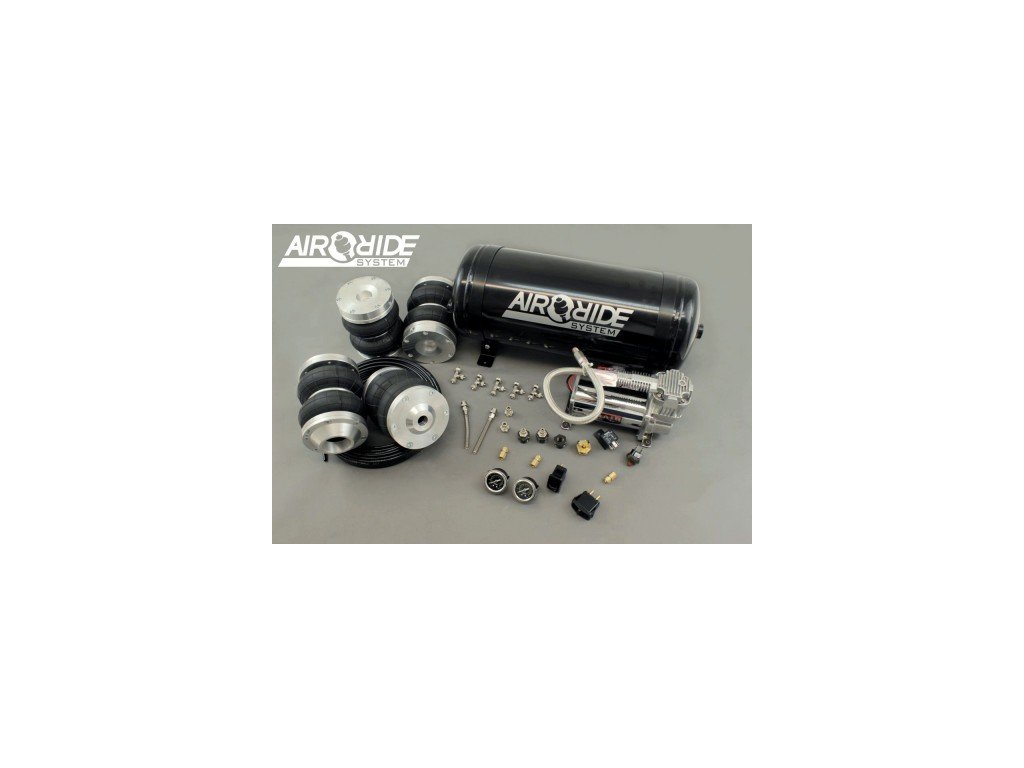

Included:
- 4 complete mounting brackets

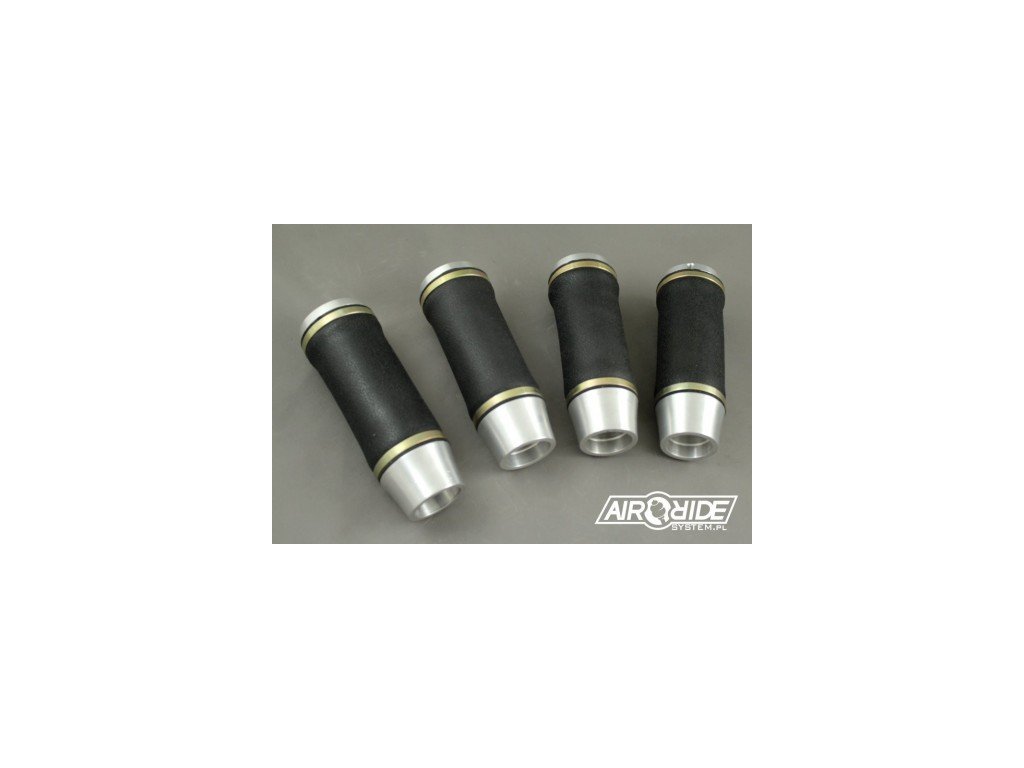

- Dedicated bags

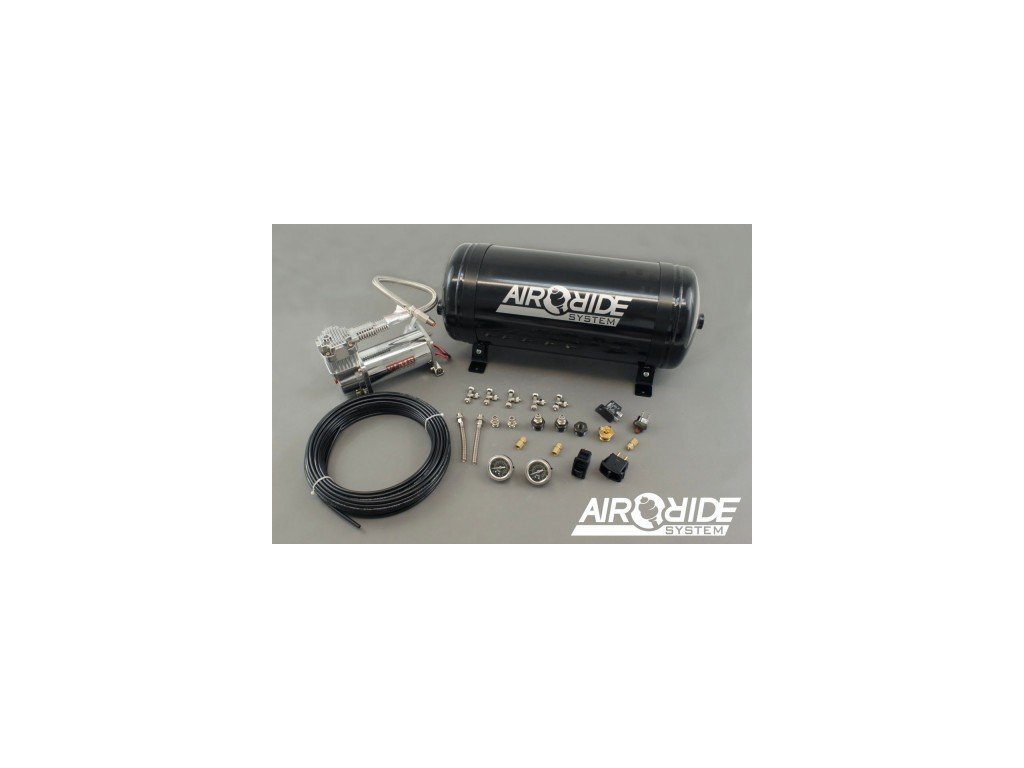

- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: 2x manual AVS pneumatic switch
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- 4 Dedicated Sleaves (just for some types of thread)
- 6mm air hose: 25m
- Other fittings for tank and bags

• Piston rod diameter (front): 11 mm; 12,45 mm; 15 mm; 16 mm; 18 mm; 20 mm; 22 mm; 25 mm; Other (add info in comments or product configuration)
• Coilover shock thread size (front): M50x1,5; M52x1,5; M52x2 metric; M52x2 trapezoidal; M52x3 trapezoidal; M53x2; M54x1,5; M55x2; Other (add info in comments or product configuration)
• Piston rod diameter (rear): 11 mm; 12,45 mm; 15 mm; 16 mm; 18 mm; 20 mm; 22 mm; 25 mm; Other (add info in comments or product configuration)
• Coilover shock thread size (rear): M50x1,5; M52x1,5; M52x2 metric; M52x2 trapezoidal; M52x3 trapezoidal; M53x2; M54x1,5; M55x2; Other (add info in comments or product configuration)

Importer / Producer: BEST LEVEL Katarzyna Janecka

User manuals: https://www.mapet-tuning.com/xxx/MANUALS/

Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
