air-ride BASIC kit - BMW Z3 with shocks
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride BASIC kit - front/rear
Dedicated to:
BMW Z3
Info:
The basic set is a cheap way to make an air-RIDE. Designed for people who do not care for the show and speed, but want to be able to lie on the ground on the car-show and go up when you ride. The speed of kit is similar to that cars with NIVO systems. Kit allows you to control each axis separately. Infinitely adjustable - you can set the car on different levels.
At rear You have to cut bottom spring holder - make flat. The top spring holder have to be drilled to put the airhose inside it.
Included:
- 4 complete mounting brackets
- Dedicated bags

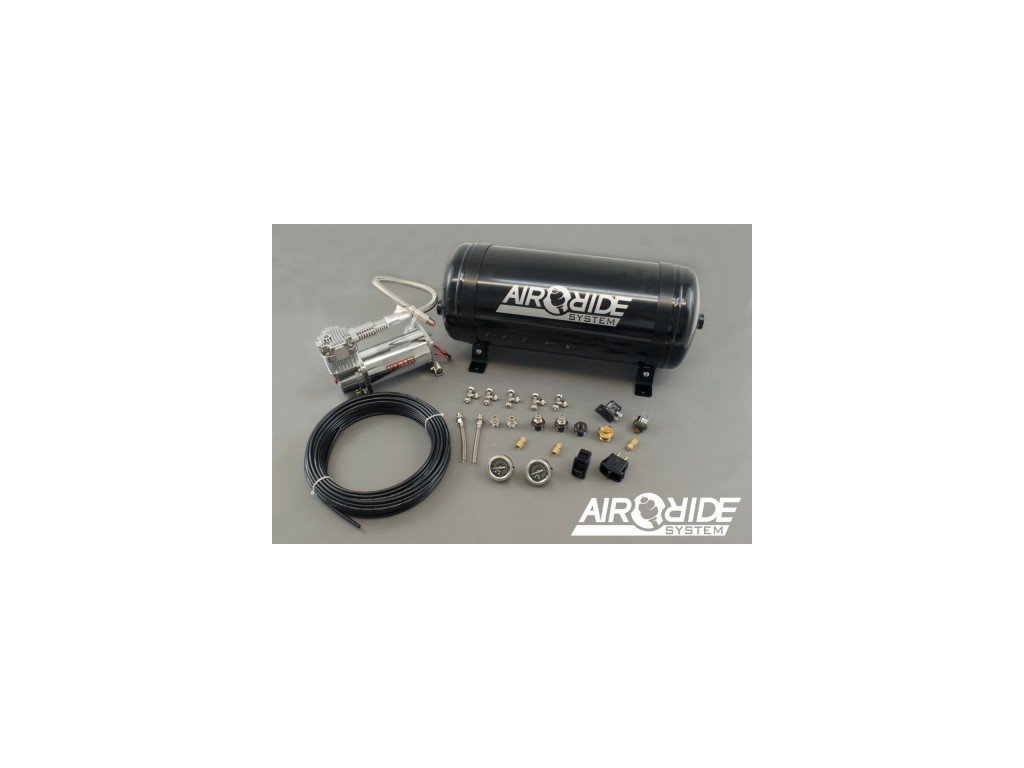

- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: 2x manual AVS pneumatic switch
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Bags
- 6mm air hose: 25m
- Other fittings for tank and bags

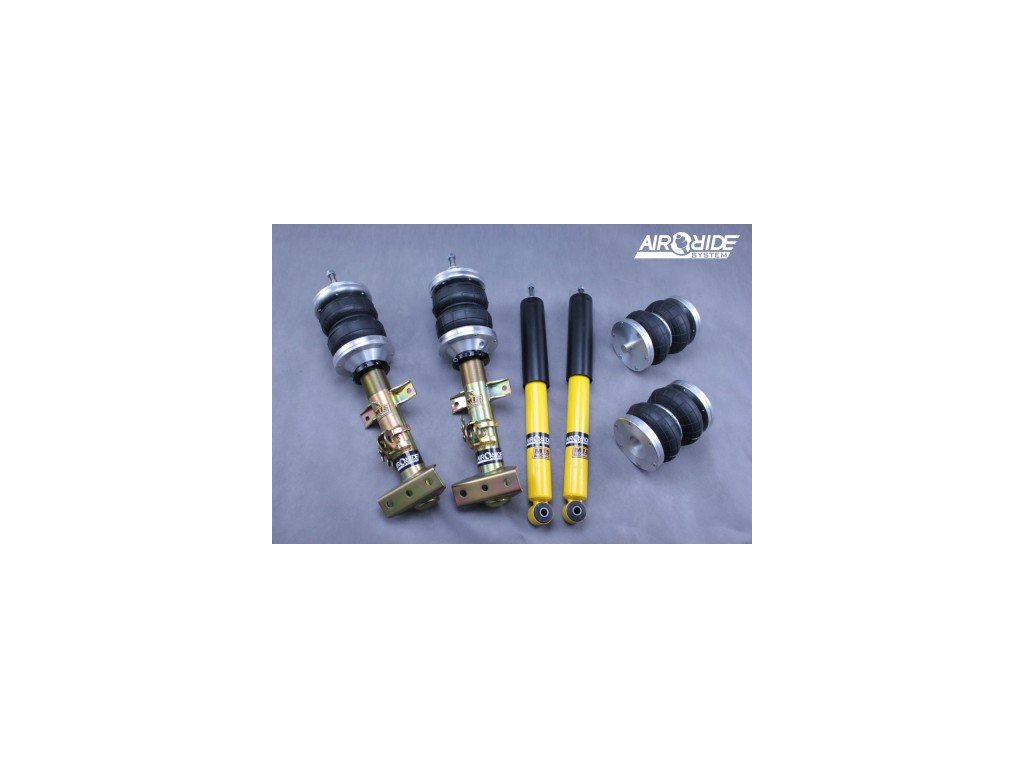

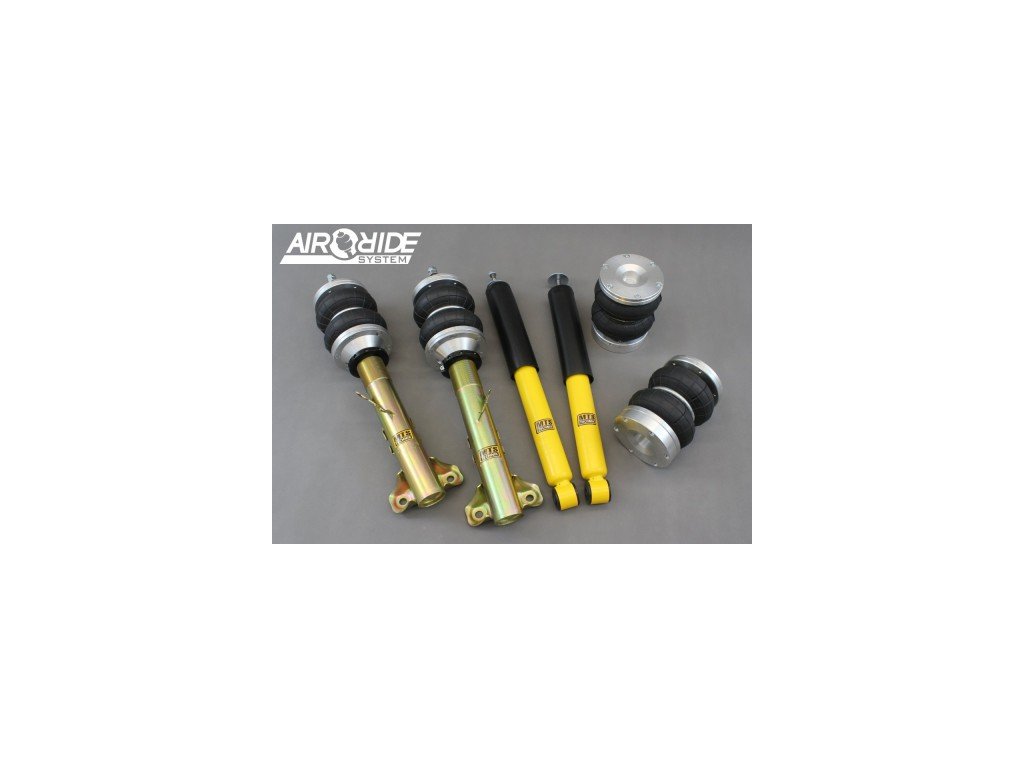

- Shock absorbers
- Camber Plates Front (gives the possibility of adjusting the angle and car can go a little lower)
- Shortening the front shock absorbers

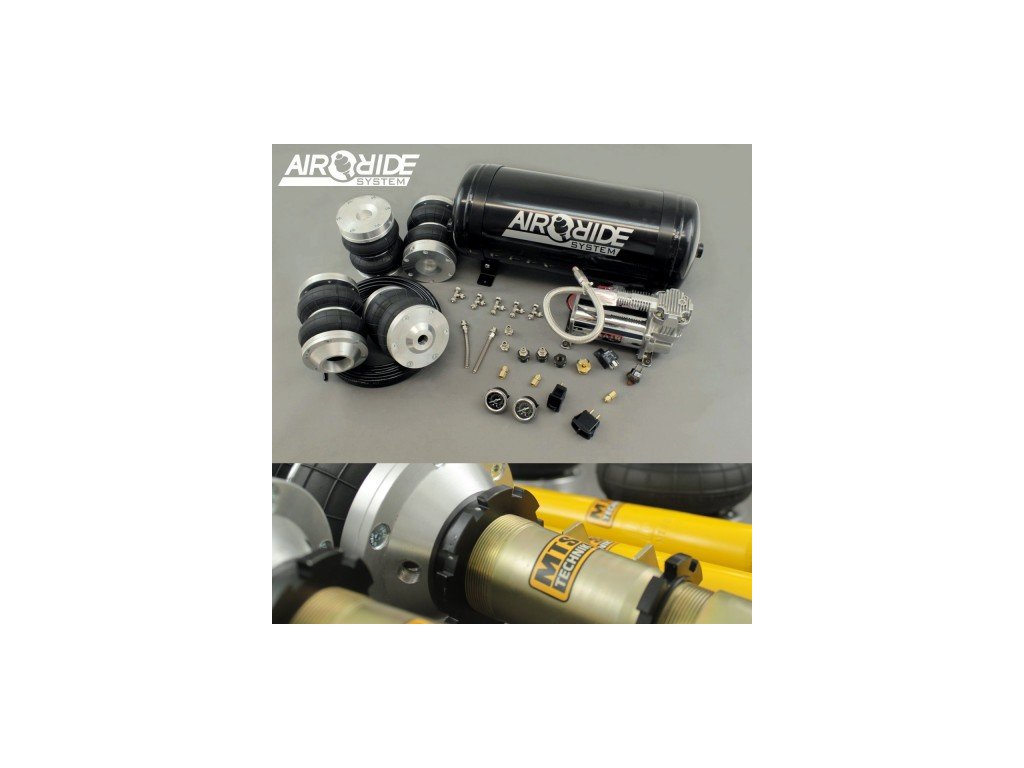

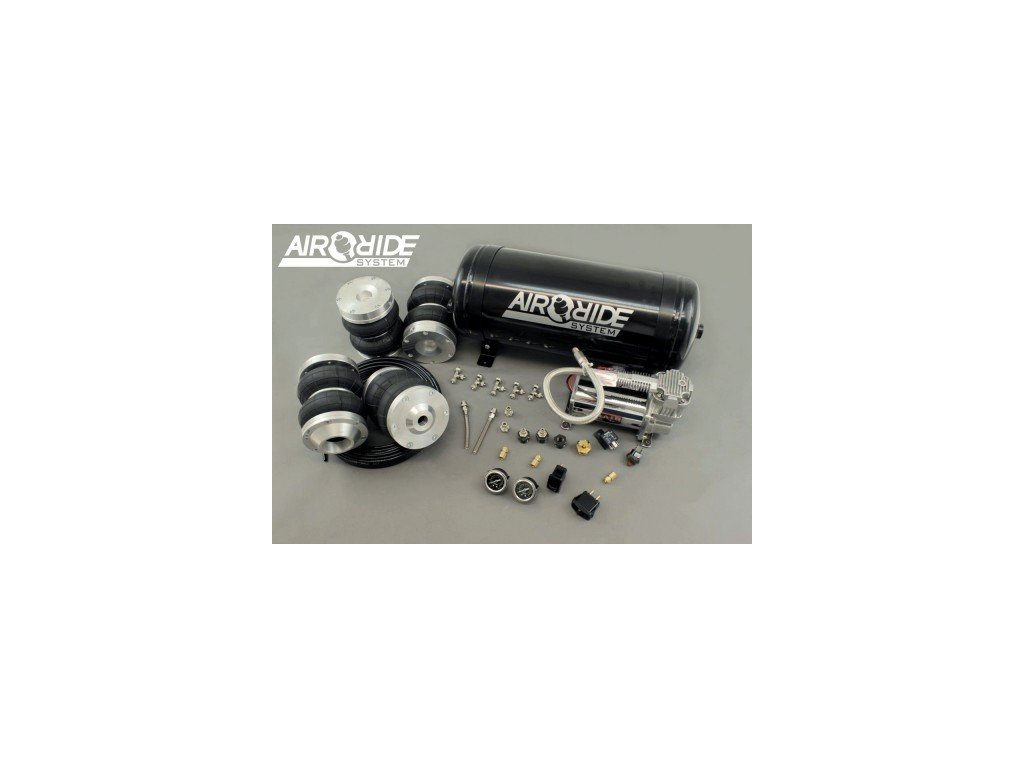

illustrative photo!
Movie with English subtitles:
Schematic example:
Importer / Producer: BEST LEVEL Katarzyna Janecka
User manuals: https://www.mapet-tuning.com/xxx/MANUALS/
Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
