air-ride BASIC kit - BMW E30
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride BASIC kit - front/rear
Dedicated to:
BMW E30
just for rwd versions
Bags made for Your coilover suspension! Does not fit to oem shocks!
Measurements needed:
http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg
Info:
The basic set is a cheap way to make an air-RIDE. Designed for people who do not care for the show and speed, but want to be able to lie on the ground on the car-show and go up when you ride. The speed of kit is similar to that cars with NIVO systems. Kit allows you to control each axis separately. Infinitely adjustable - you can set the car on different levels.
At rear for better lowering is required shortening serial spring holders!
Included:
- 4 complete mounting brackets

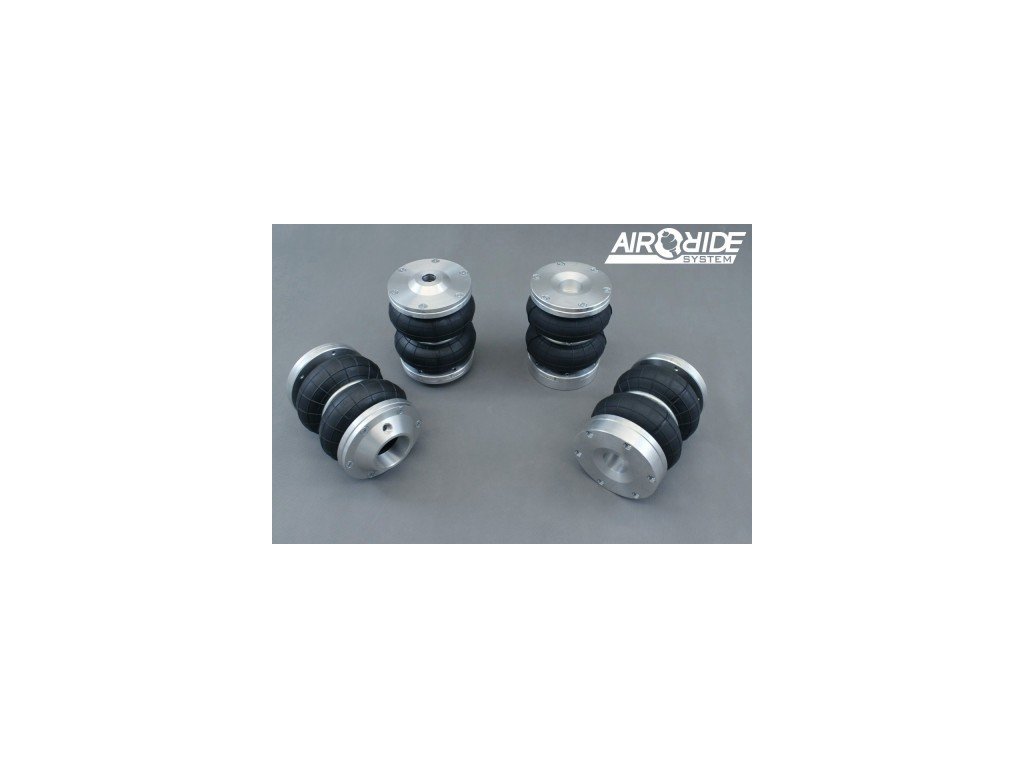

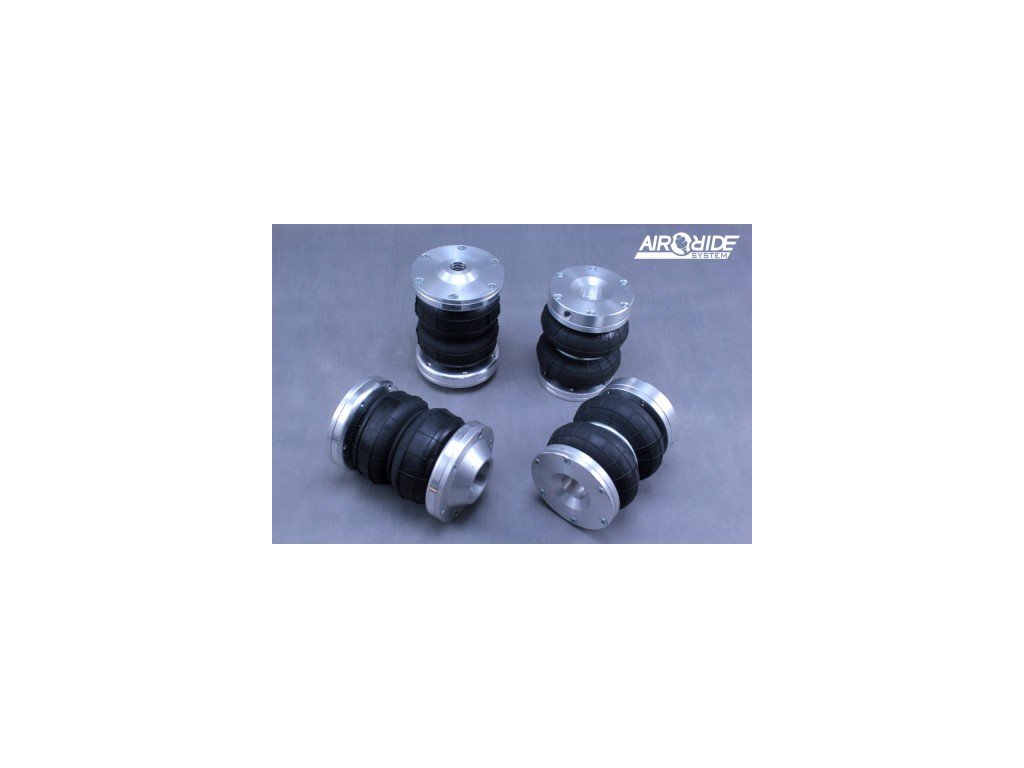

- Dedicated bags
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: 2x manual AVS pneumatic switch
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Bags
- 6mm air hose: 25m
- Other fittings for tank and bags
Other optional features:
- Coilover shocks

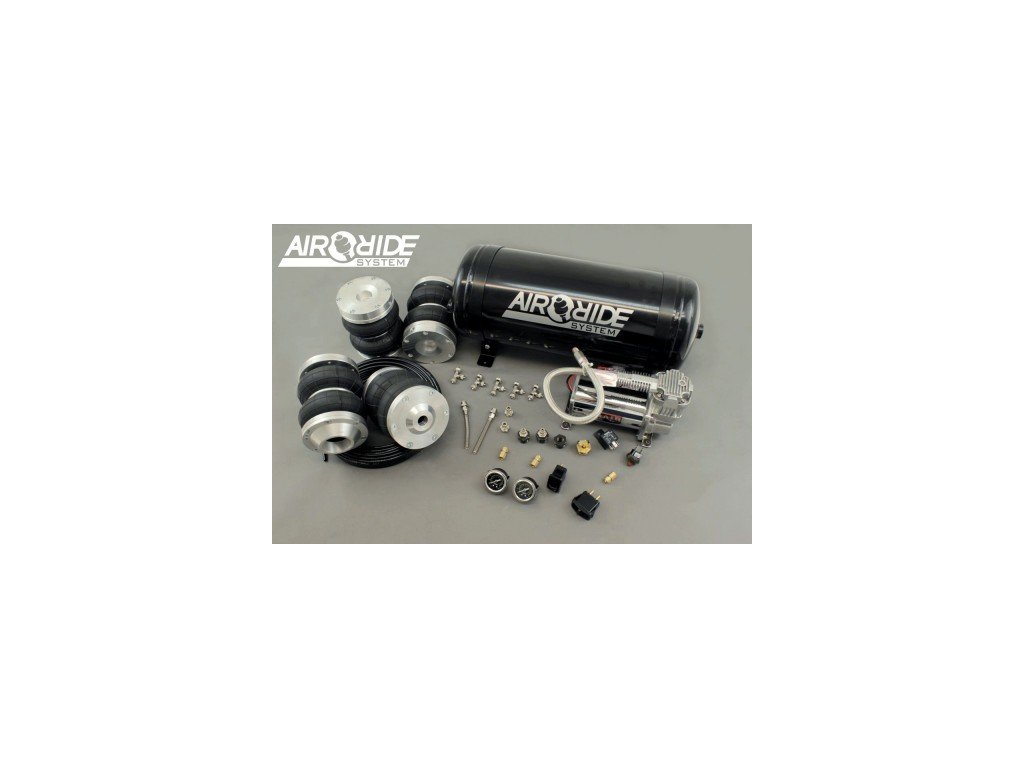

illustrative photo!
Movie with English subtitles:
Schematic example:
- Camber Plates: WITHOUT Camber Plates; WITH Camber Plates
- Piston rod diameter (front): 11 mm; 12,45 mm; 15 mm; 16 mm; 18 mm; 20 mm; 22 mm; 25 mm; Other (add info in comments or product configuration)
- Coilover shock thread size (front): M50x1,5; M52x1,5; M52x2 metric; M52x2 trapezoidal; M52x3 trapezoidal; M53x2; M54x1,5; M55x2; Other (add info in comments or product configuration)
