air-ride BASIC kit - Audi A3 8Y + S3 with shocks
| Kategorie: | Sety vzduchových podvozků |
|---|
Air-ride BASIC kit - front/rear
Dedicated to:
- Audi A3 8Y + Sportback + S3
- Seat Leon 4 KL
- Skoda Octavia IV
- Volkswagen Golf VIII
FWD i 4WD
Info:
The basic set is a cheap way to make an air-RIDE. Designed for people who do not care for the show and speed, but want to be able to lie on the ground on the car-show and go up when you ride. The speed of kit is similar to that cars with NIVO systems. Kit allows you to control each axis separately. Infinitely adjustable - you can set the car on different levels.

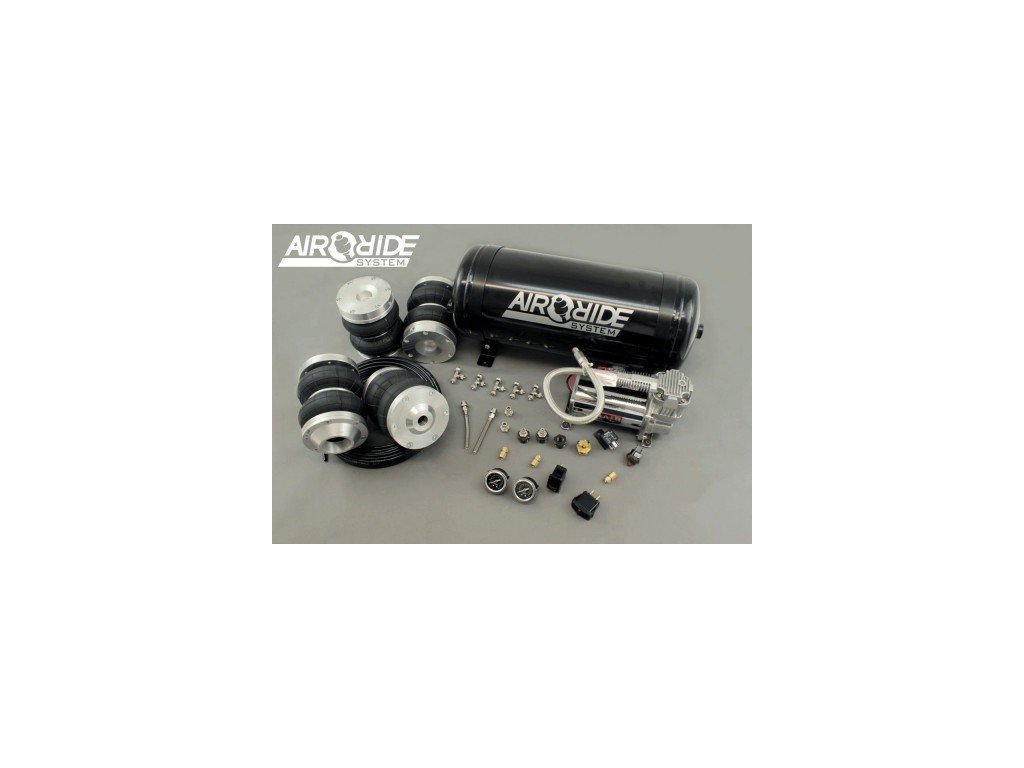

Included:
- 4 complete mounting brackets
- Dedicated bags
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: 2x manual AVS pneumatic switch
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Bags; Rear 130 bags - multilink or 4,5" bags - twistbeam
- 6mm air hose: 25m
- Other fittings for tank and bags

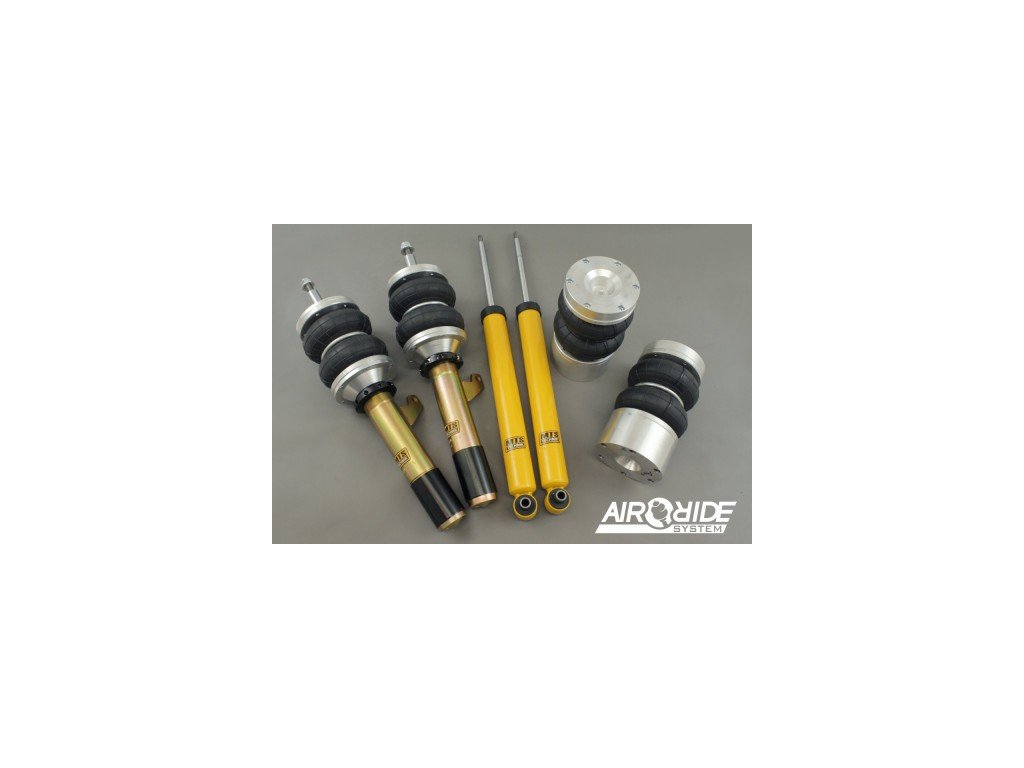

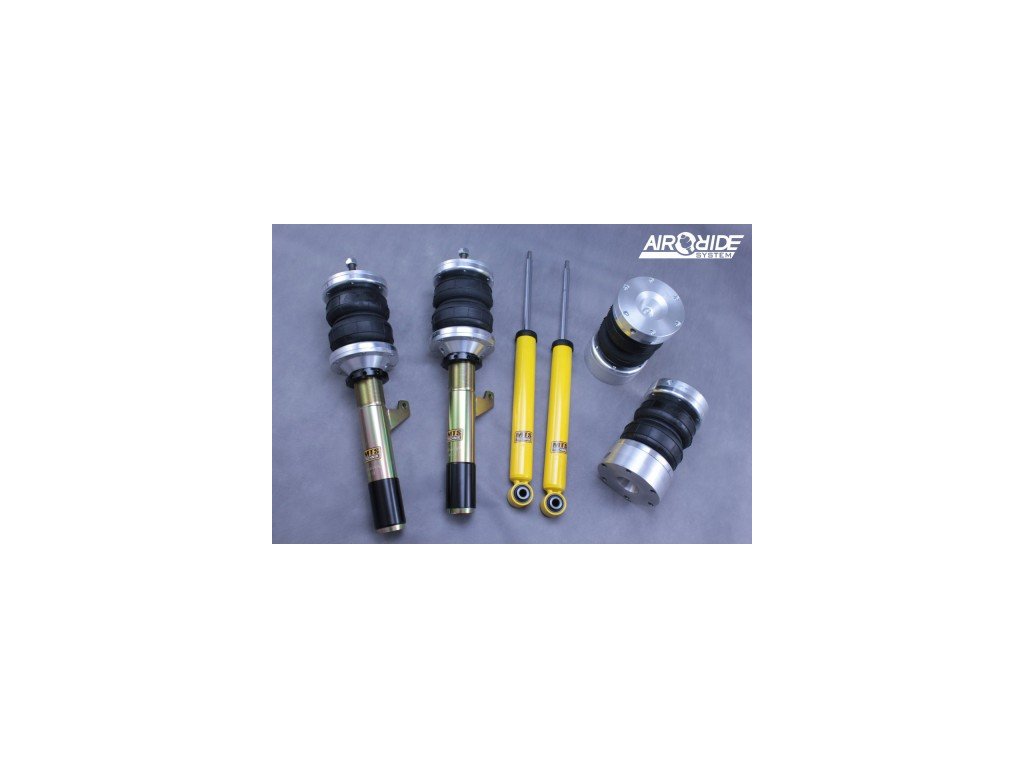

- Shock absorbers
- Shortening the front shock absorbers
Important: When You make the order - You have to write the type of rear suspension: multi-link or twist beam!
- INFO! To mount the front bags You have to use top bearing like camber plate. You can order it on our website too!
https://airride-system.pl/en/camber-plates/1484-camber-plates-vw-golf-7-leon-5f-audi-a3-8v.html

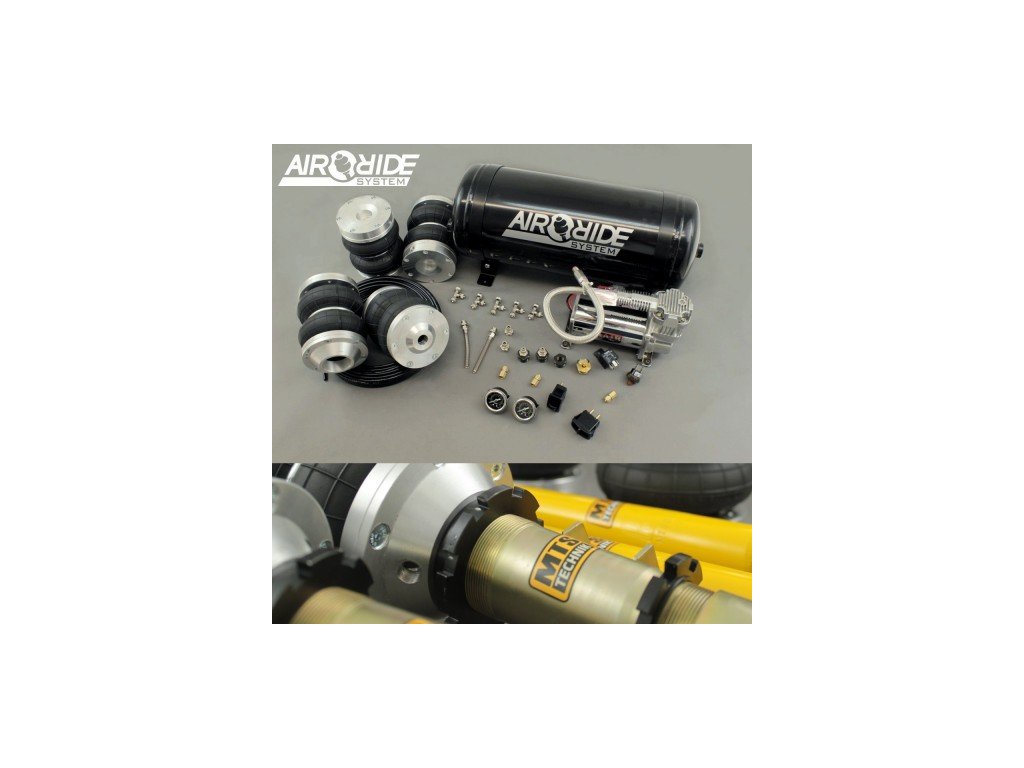

illustrative photo!
Movie with English subtitles:
Schematic example:
Importer / Producer: BEST LEVEL Katarzyna Janecka
User manuals: https://www.mapet-tuning.com/xxx/MANUALS/
Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
