2 Compressors VIAIR 444C Chrome - DUAL
| Kategorie: | Kompresory |
|---|
Compressors VIAIR 444C Chrome - DUAL

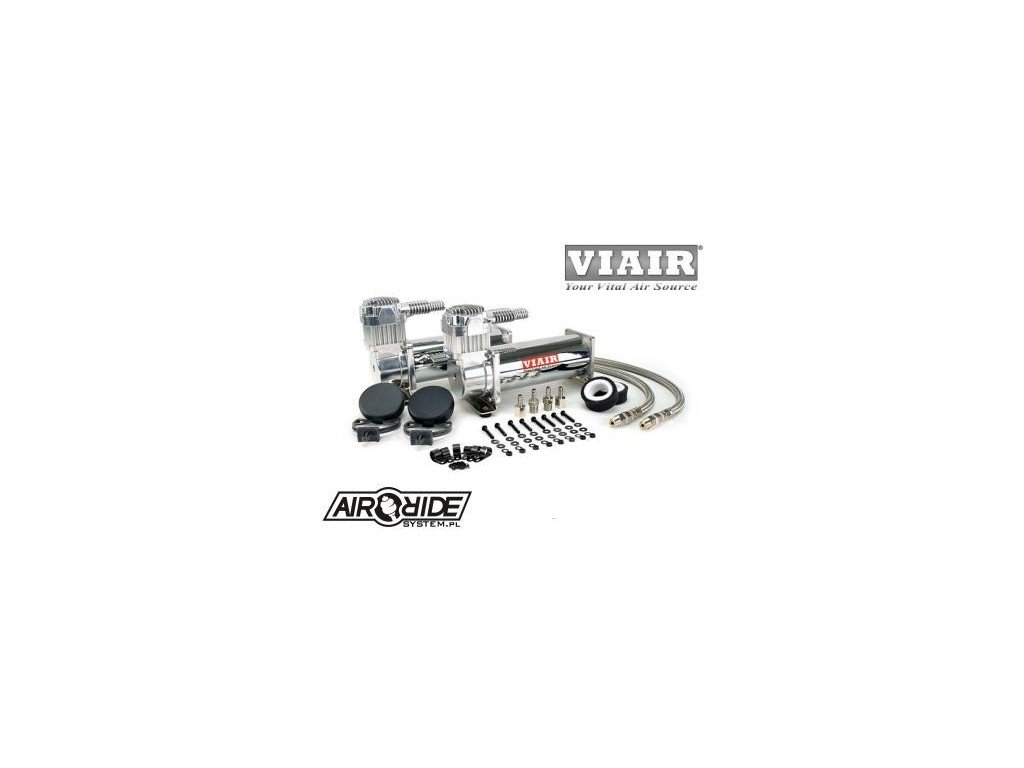

VIAIR's 444C Dual Performance Value Pack air compressors feature a newly-developed head assembly, with a patent pending intercooler head, and is capable of a maximum 200 PSI with a 100% duty cycle to power an air suspension system or any other application you may have. The 444C Dual Performance Value Pack includes two 12-volt Chrome VIAIR 444C air compressors, which are also equipped with a stainless steel braided leader hose with an inline check valve.
Features:
- (2) 444C Chrome Air Compressors
- Intercooler Head (Patents Pending)
- (2) Air Filter Assemblies
- (2) Remote Mount Brackets
- (2) Sets of Remote Mount Fittings
- (2) Sets of Spare Air Filter Elements
- (8) Sets of Nuts, Bolts, Washers and Lock Washers
- (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
- (6) Airline Clips with Included Hardware
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Max. Amp Draw: 40 Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.87"L x 4.2"W x 7.06"H (Each Unit)
- Net Weight: 21.60 lbs.
User Manual
Dimensional Drawings
Wiring Diagram
| 2.5 Gallon Tank | Fill Rate |
|---|---|
| 0 to 200 PSI | 2 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI | 46 sec. (± 05 sec.) |
| 5.0 Gallon Tank | Fill Rate |
| 0 to 200 PSI | 5 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 35 sec. (± 05 sec.) |
Warranty 12 months
Breaking sticker with the serial number of the compressor is void the warranty.
Producer: VIAIR
USA - https://viaircorp.com/pages/contact
